| smartslot | Yes |
| manufacturer | APC |
| product group | USV |
| product type | UPS Line Interactive |
| colour | black |
| weight | 13.2 kg |
| height of packaging (single piece) | 290 mm |
| width of packaging (single piece) | 500 mm |
| depth of packaging (single piece) | 260 mm |
| package weight (single piece) | 13.664 kg |
| gross weight | 13.664 |
| current catalog edition | 24.1 |
| current catalog page | 10.08 |
| scope of delivery | USV, Kabelsatz, PowerChute USV Management Software |
| height | 157 mm |
| width | 138 mm |
| depth | 358 mm |
| operating temperature min. | 0 °C |
| operating temperature max. | 40 °C |
| dimensions (hxwxd) | 157 x 138 x 358 mm |
| interface | RS232, USB, RJ45 |
| mounting form | Tower |
| rs-232 interface | ja |
| usb 2.0 interface | ja |
| cable length | 1.83 m |
| classification (iec 62040-3) | VI-SS-333 |
| ups technology | Line Interactive |
| output (va/w) | 750 / 500 |
| backup time full/half-load | 5 / 8 min |
| voltage (input) | 160 - 286 V |
| voltage (output) | 230V |
| frequency | 50 Hz +- 3% |
| connector type (input) | Kaltgeräte IEC320 C14 |
| connector type (output) | 4 x Kaltgeräte IEC320 C13 |
| phase in/output | 230V/230V / 50Hz |
| over current protection | EMI,- RFI-Filter |
| slot for adapter card | 1 Smartslot |
| additional over current protector | nein |
| activity display | Ja |
| incl.management software | Windows |
| internal cooling | Aktiv, Lüfter |
| ambient temperature | 0-40°C |
| output voltage regulation | ja |
| hot swap batteries | Ja, Frontseite |
| bypass | nein |
| activity led | 4 LED |
| efficiency | 98% |
| delay expansion unit | nein |
| form factor | Tower |
| product colour | Black |
| led indicators | Status |
| noise level | 40 dB |
| operating temperature (t-t) | 0 - 40 °C |
| storage temperature (t-t) | -15 - 45 °C |
| operating relative humidity (h-h) | 5 - 95% |
| storage relative humidity (h-h) | 0 - 95% |
| package width | 278 mm |
| package depth | 499 mm |
| package height | 301 mm |
| package weight | 14.2 kg |
| certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| harmonized system (hs) code | 85078000 |
| battery technology | Sealed Lead Acid (VRLA) |
| compliance certificates | RoHS |
| manual | Yes |
| ethernet lan (rj-45) ports | 1 |
| cables included | USB cable |
| products per pallet | 24 pc(s) |
| total carbon footprint (kg of co2e) | 639.93 |
| quick installation guide | Yes |
| operating altitude | 0 - 3000 m |
| non-operating altitude | 0 - 15000 m |
| ac outlets quantity | 6 AC outlet(s) |
| ac outlet types | C13 coupler |
| power plug | C14 coupler |
| usb port | Yes |
| sustainability certificates | Green Premium |
| ups topology | Line-Interactive |
| output power capacity | 0.75 kVA |
| output power | 500 W |
| waveform | Sine |
| input operation voltage (min) | 151 V |
| input operation voltage (max) | 302 V |
| input frequency | 50/60 Hz |
| output operation voltage (min) | 220 V |
| output operation voltage (max) | 240 V |
| automatic voltage regulation (avr) | Yes |
| surge energy rating | 540 J |
| audible alarm(s) | Yes |
| auto-restart | Yes |
| number of output iec jumpers | 2 |
| typical backup time at full load | 4.6 min |
| typical backup time at half load | 15.8 min |
| battery life (max) | 5 year(s) |
| battery recharge time | 3 h |
| hot-swap battery | Yes |
| automatic battery test | Yes |
| cold start | Yes |
| bundled software | Powershute Serial Edition |
| display type | LCD |
| Description |

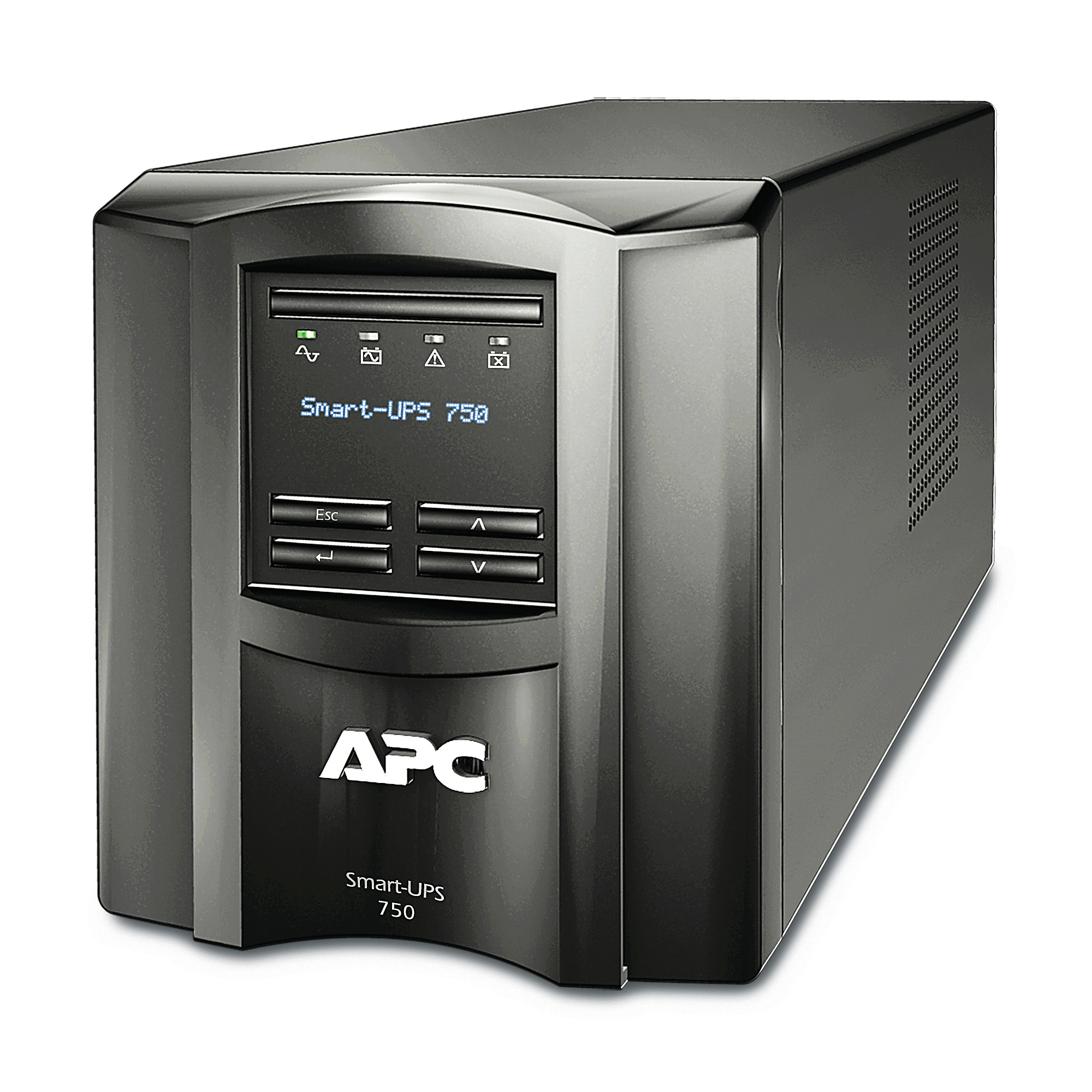

APC SMT750IC. UPS topoloģija: Line-Interactive, Izejas jaudas kapacitāte (VA): 0,75 kilovoltampērs, Izejas jauda: 500 W. Maiņstrāvas izeju tipi: C13 uzmava, Jaudas spraudnis: C14 uzmava, Izeju skaits: 6 Maiņstrāvas izvade (-s). Baterijas tehnoloģija: Noslēgts svina skābju (VRLA), Tipiskais dublējuma laiks pilnā ielādē: 4,6 min, Tipiskais dublējuma laiks pusielādē: 15,8 min. Formas faktors: Tower, Produkta krāsa: Melns, Kabeļa garums: 1,83 m. Atbilstības sertifikāti: RoHS, Sertifikācija: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
|
|
