| manufacturer | APC |
| product group | USV |
| product type | UPS Line Interactive |
| colour | black |
| weight | 24.1 kg |
| height of packaging (single piece) | 320 mm |
| width of packaging (single piece) | 330 mm |
| depth of packaging (single piece) | 600 mm |
| package weight (single piece) | 21.917 kg |
| gross weight | 21.917 |
| current catalog edition | 24.1 |
| scope of delivery | USV, Software-CD, USB-Kabel, Benutzerhandbuch |
| height | 219 mm |
| width | 171 mm |
| depth | 439 mm |
| operating temperature min. | 0 °C |
| operating temperature max. | 40 °C |
| dimensions (hxwxd) | 219 x 171 x 439 mm |
| interface | USB |
| mounting form | Tower |
| usb 2.0 interface | ja |
| classification (iec 62040-3) | VI-SS-333 |
| ups technology | Line Interactive |
| output (va/w) | 1500/900 |
| backup time full/half-load | 7 / 27 min |
| voltage (input) | 180 - 287 V |
| voltage (output) | 230V |
| frequency | 50 Hz |
| connector type (input) | Kaltgeräte IEC320 C14 |
| connector type (output) | 8 x Kaltgeräte IEC320 C13 |
| phase in/output | 230V/230V / 50Hz |
| over current protection | EMI,- RFI-Filter |
| additional over current protector | nein |
| activity display | Alphanumerisches LC-Display mit LED-Statusanzeigen |
| incl.management software | Windows |
| internal cooling | passiv |
| ambient temperature | 0-40°C |
| output voltage regulation | 230V |
| hot swap batteries | Ja, Frontseite |
| bypass | nein |
| activity led | 4 LED |
| delay expansion unit | nein |
| web-based management | Yes |
| form factor | Mini Tower |
| product colour | Black |
| led indicators | Yes |
| noise level | 45 dB |
| operating temperature (t-t) | 0 - 40 °C |
| storage temperature (t-t) | -15 - 45 °C |
| operating relative humidity (h-h) | 0 - 95% |
| storage relative humidity (h-h) | 0 - 95% |
| package width | 328 mm |
| package depth | 595 mm |
| package height | 376 mm |
| certification | C-tick, CE, CSA, GOST, UL 1778, VDE |
| harmonized system (hs) code | 85078000 |
| battery technology | Sealed Lead Acid (VRLA) |
| usb 2.0 ports quantity | 1 |
| cables included | USB cable |
| products per pallet | 18 pc(s) |
| number of batteries supported | 1 |
| total carbon footprint (kg of co2e) | 1090.81 |
| resource cd | Yes |
| operating altitude | 0 - 3000 m |
| non-operating altitude | 0 - 15000 m |
| ac outlets quantity | 8 AC outlet(s) |
| ac outlet types | C13 coupler |
| power plug | C14 coupler |
| usb port | Yes |
| sustainability certificates | Green Premium |
| ups topology | Line-Interactive |
| output power capacity | 1.5 kVA |
| output power | 900 W |
| waveform | Sine |
| input operation voltage (min) | 170 V |
| input operation voltage (max) | 300 V |
| input frequency | 50/60 Hz |
| output operation voltage (min) | 220 V |
| output operation voltage (max) | 240 V |
| automatic voltage regulation (avr) | Yes |
| surge energy rating | 459 J |
| audible alarm(s) | Yes |
| auto-restart | Yes |
| battery life (max) | 5 year(s) |
| battery recharge time | 3 h |
| hot-swap battery | Yes |
| automatic battery test | Yes |
| cold start | Yes |
| software cd | Yes |
| serial interface | Yes |
| display type | LCD |
| output voltage total harmonic distortion (thd) | 5% |
| serial ports quantity | 1 |
| audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| output frequency | 50/60 Hz |
| package volume | 27230 cm³ |
| temperature voltage compensation | Yes |
| Description |

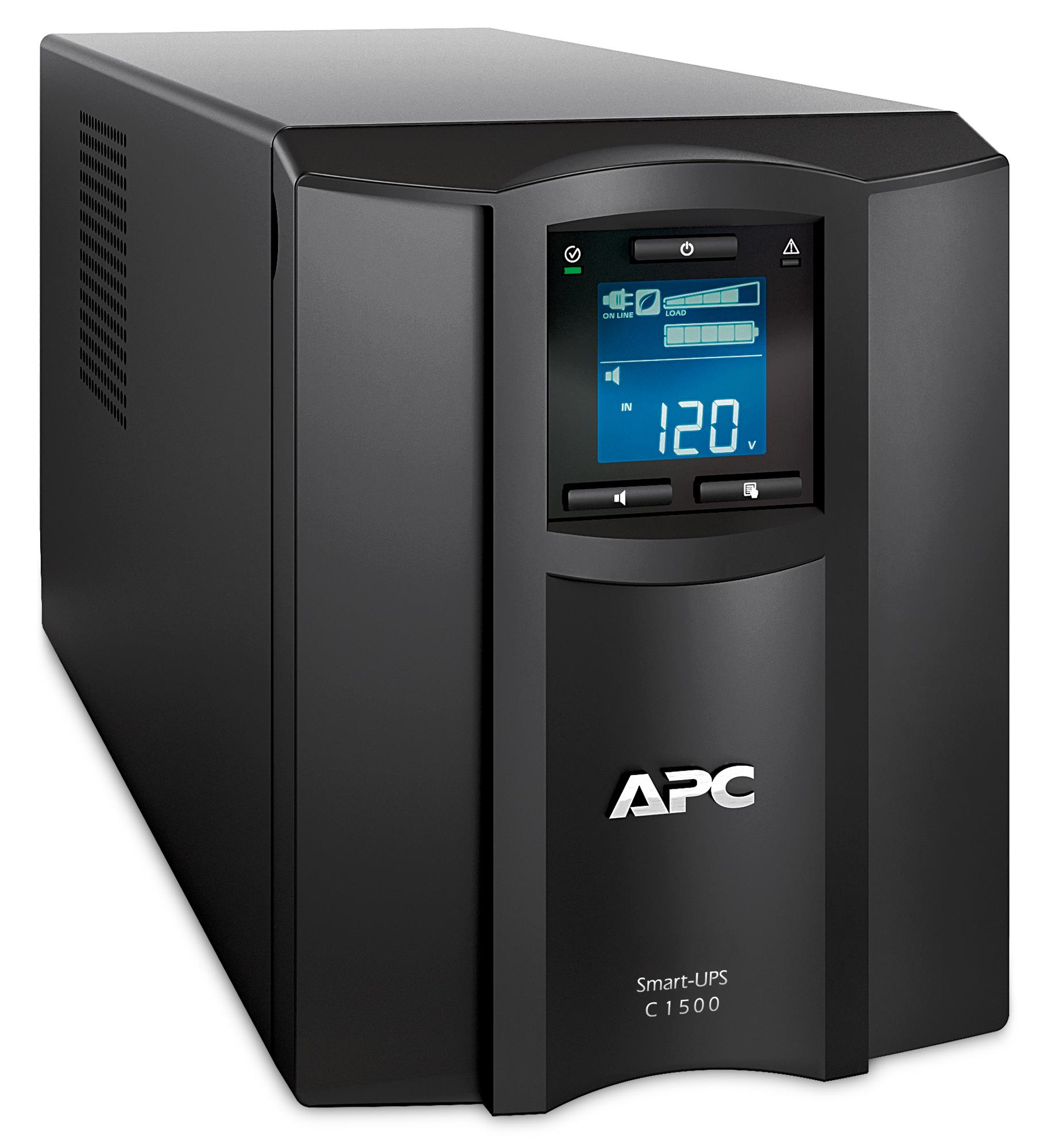

APC SMC1500IC. UPS topoloģija: Line-Interactive, Izejas jaudas kapacitāte (VA): 1,5 kilovoltampērs, Izejas jauda: 900 W. Maiņstrāvas izeju tipi: C13 uzmava, Jaudas spraudnis: C14 uzmava, Izeju skaits: 8 Maiņstrāvas izvade (-s). Baterijas tehnoloģija: Noslēgts svina skābju (VRLA), Akumulatora darbības laiks (maks.): 5 gads(i), Baterijas uzlādes laiks: 3 h. Formas faktors: Mini Tower, Produkta krāsa: Melns, Ekrāna veids: LCD. Sertifikācija: C-tick, CE, CSA, GOST, UL 1778, VDE
|
|
