Manufacturer: ARCTIC

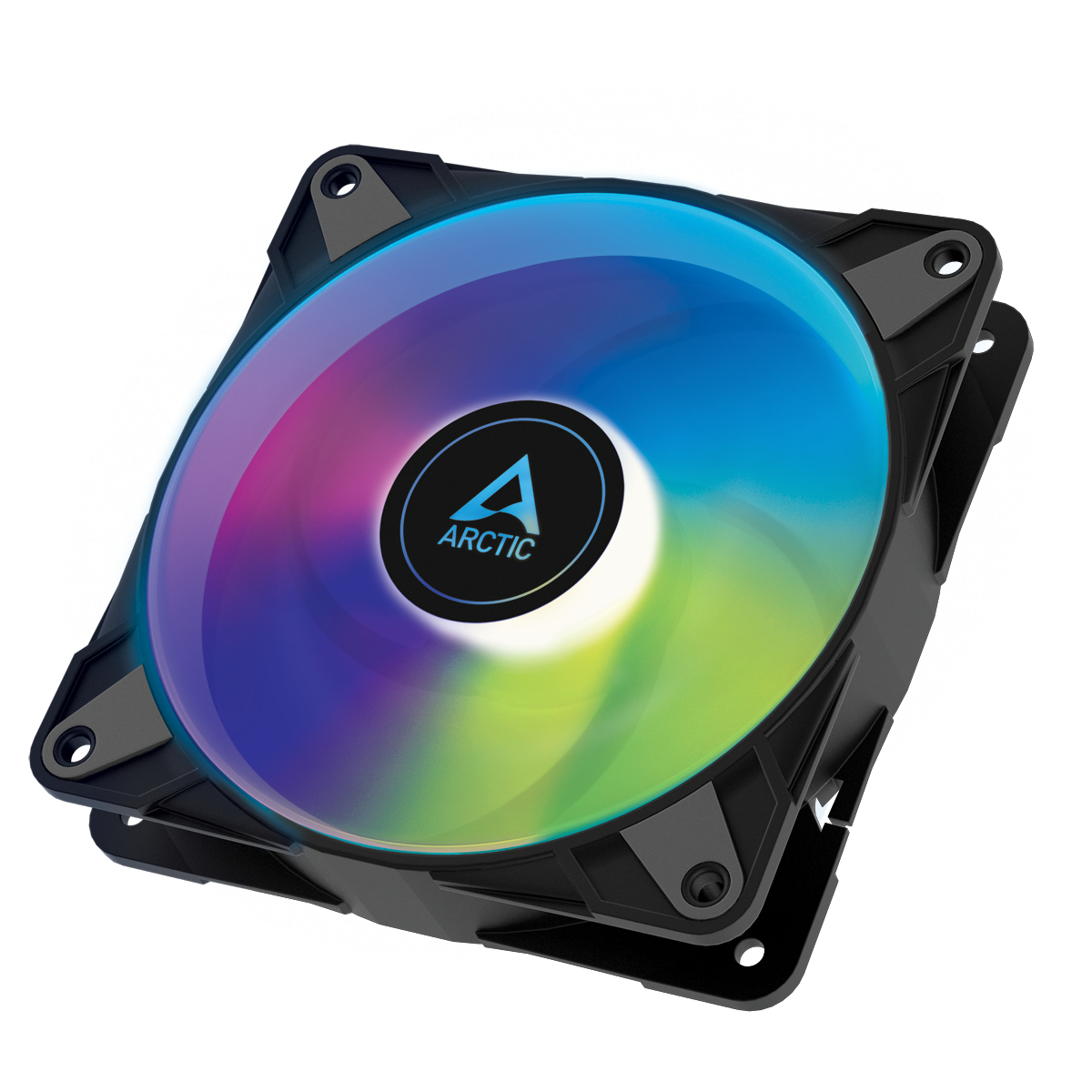

Dzesētājs Arctic P12 PST A-RGB

€19.54 incl tax

SKU: ST05037629

Manufacturer part number: ACFAN00231A

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	2 - 5 days	6	€19.54 incl tax
PL	8 - 15 days	7	€20.12 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6

Producer	Case cooler 120 mm.

Suitable location	Computer case
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Rotational speed (max)	2000 RPM
Maximum airflow	48.8 cfm
Airflow	82.91 m³/h
Maximum air pressure	1.85 mmH2O
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Quantity per pack	1 pc(s)
Product colour	Black, White
Material	Plastic
Number of fans	1 fan(s)
Illumination LED	Yes
Number of LEDs	12
Fan connector	4-pin + 4-pin
Voltage	12 V
Rated current	0.11 A
Width	120 mm
Depth	120 mm
Height	25 mm
Weight	131 g
Cable length	0.48 m
Package width	127 mm
Package depth	124 mm
Package height	86 mm
Package weight	159 g
Package type	Box
Mounting kit	Yes
Screws included	Yes
Country of origin	China
Harmonized System (HS) code	84733080
Description
Description	ARCTIC P12 PWM PST A-RGB 0dB. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 2000 RPM, Maximum airflow: 48.8 cfm, Airflow: 82.91 m³/h, Maximum air pressure: 1.85 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black, White

Description
	Ligdza (socket): 4-pin + RGB, Diametrs: 120 mm, Ventilators ātrums (apgr.min.): 2000 apgr.min., Apgaismojums: RGB, Skaits komplektācijā: 1, Garantija: 2 gadi

Weight	0.23
Gross weight	0.25
Description
	The ARCTIC P12 PWM PST A-RGB 0dB (model ACFAN00231A) is a high-performance 120 mm case fan optimized for high static pressure, making it an ideal choice for use on radiators and heat exchangers. The fan features 12 digital addressable RGB LEDs, providing even and rich lighting compatible with common A-RGB standards of leading motherboard manufacturers. With PWM Sharing Technology (PST), the fan's speed can synchronize with other fans in the system, ensuring efficient and quiet cooling. Key Features: Dimensions: 120 x 120 x 25 mm Rotation Speed: 0–2000 RPM (PWM controlled) Airflow: up to 48.8 CFM (82.8 m³/h) Static Pressure: up to 1.8 mm H₂O Noise Level: up to 22.5 dB Bearing Type: Fluid Dynamic Bearing Connection: 4-pin PWM with additional 3-pin socket for A-RGB Color: Black frame with white blades Lighting: 12 digital A-RGB LEDs
	ARCTIC P12 PWM PST A-RGB 0dB (modelis ACFAN00231A) ir augstas veiktspējas 120 mm korpusa ventilators, optimizēts augsta statiskā spiediena radīšanai, padarot to par ideālu izvēli izmantošanai uz radiatoriem un siltummaiņiem. Ventilators ir aprīkots ar 12 digitālām adresējamām RGB LED, kas nodrošina vienmērīgu un bagātīgu apgaismojumu, saderīgu ar izplatītajiem A-RGB standartiem vadošo mātesplatju ražotāju produktiem. Pateicoties PWM Sharing Technology (PST), ventilatora rotācijas ātrumu var sinhronizēt ar citiem sistēmas ventilatoriem, nodrošinot efektīvu un klusu dzesēšanu. Galvenās īpašības: Izmēri: 120 x 120 x 25 mm Rotācijas ātrums: 0–2000 apgr./min (regulējams caur PWM) Gaisa plūsma: līdz 48,8 CFM (82,8 m³/h) Statiskā spiediena līmenis: līdz 1,8 mm H₂O Trokšņa līmenis: līdz 22,5 dB Gultņa tips: Hidrodinamiskais gultnis (Fluid Dynamic Bearing) Pieslēgums: 4-pin PWM ar papildu 3-pin ligzdu A-RGB Krāsa: Melns korpuss ar baltām lāpstiņām Apgaismojums: 12 digitālas A-RGB LED
	ARCTIC P12 PWM PST A-RGB 0dB (модель ACFAN00231A) — это высокоэффективный 120-мм корпусной вентилятор, оптимизированный для создания высокого статического давления, что делает его идеальным выбором для использования на радиаторах и теплообменниках. Вентилятор оснащен 12 цифровыми адресуемыми RGB-светодиодами, обеспечивающими равномерное и насыщенное освещение, совместимое с распространенными стандартами A-RGB ведущих производителей материнских плат. С помощью технологии PWM Sharing Technology (PST) скорость вращения вентилятора может синхронизироваться с другими вентиляторами в системе, обеспечивая эффективное и тихое охлаждение. Основные характеристики: Размеры: 120 x 120 x 25 мм Скорость вращения: 0–2000 об/мин (регулируется через PWM) Воздушный поток: до 48,8 CFM (82,8 м³/ч) Статическое давление: до 1,8 мм H₂O Уровень шума: до 22,5 дБ Тип подшипника: Гидродинамический подшипник (Fluid Dynamic Bearing) Подключение: 4-pin PWM с дополнительным 3-pin разъемом для A-RGB Цвет: Черный корпус с белыми лопастями Светодиодная подсветка: 12 цифровых A-RGB светодиодов

Description

Semi-Passive fan P12 PWM PST with digital A-RGB, -pin, 120mm, lack.rFeatures:uAddressale RGB for full colour control.u The P12 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can e controlled independently of each other and are compatile with the common A-RGB standards of leading motheroard manufacturers. The fan can thus e fully illuminated directly the A-RGB mainoard connector or via an eternal controller and synchronised with the illumination of other hardware.uPWM PSTu technology allows multiple fans to e connected (up to 5 recommended), synchronizing their operating speed ased on the actual computer cooling demands. In this way, the entire cooling system operates more efficiently and quietly, and the total energy consumption is lower than when each fan cooler is connected separately.u0dB mode — zero rpm.u The speed of the fan can e throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maimum performance when required.uOptimised for static pressure.uDuring the development of the new P12 PWM PST A-RGB, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees etremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST A-RGB is particularly suitale for use on heatsinks and radiators.uMaimum quietness, minimum virationu. Even at low speeds the operating sound of the new ARCTIC motor is arely noticeale. Due to a sinus-magnetizing the new motor only creates aout 5% of the viration from commutation of a regular DC-motor without filter.uHigh quality earing.u Thanks to an alloyluricant comination developed in Germany, friction within the earing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less earing noise, which means you can enjoy a longer service life from your fan.u200 to 2000 rpm controlled via PWM PST.u With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST A-RGB can e controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maimum cooling performance.uLong service life.u Ecellent results of long-term testing, even in particularly unfavorale conditions, ensure that these products are characterized not only y quality, ut also y duraility. Therefore, P12 PWM PST A-RGB fans are covered y a 6-year manufacturer's warranty.rSpecifications:Fan speed: 200-2000 RPM.Airflow: 8.8 CFM 82.91 m³h.Noise level: 0.3 Sone.Fan earing: fluid dynamic earing.Current voltage: 0.11 A 12 V DC.Starting voltage: 5 V.Connector: -Pin-Connector + -Pin-Socket.LED: 12 A-RGB.A-RGB connection: 3-Pin 5V-DI-Gnd.A-RGB current voltage: 0.A 5V.Size: 12012025 mm.Color: lack ody, optional lighting.Weight: 131 g.rWarranty: 6 years.

Description
	Ligdza (socket): 4-pin + RGB, Diametrs: 120 mm, Ventilators ātrums (apgr.min.): 2000 apgr.min., Apgaismojums: RGB, Skaits komplektācijā: 1, Garantija: 2 gadi

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6

Producer	Case cooler 120 mm.

Suitable location	Computer case
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Rotational speed (max)	2000 RPM
Maximum airflow	48.8 cfm
Airflow	82.91 m³/h
Maximum air pressure	1.85 mmH2O
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Quantity per pack	1 pc(s)
Product colour	Black, White
Material	Plastic
Number of fans	1 fan(s)
Illumination LED	Yes
Number of LEDs	12
Fan connector	4-pin + 4-pin
Voltage	12 V
Rated current	0.11 A
Width	120 mm
Depth	120 mm
Height	25 mm
Weight	131 g
Cable length	0.48 m
Package width	127 mm
Package depth	124 mm
Package height	86 mm
Package weight	159 g
Package type	Box
Mounting kit	Yes
Screws included	Yes
Country of origin	China
Harmonized System (HS) code	84733080
Description
Description	ARCTIC P12 PWM PST A-RGB 0dB. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 2000 RPM, Maximum airflow: 48.8 cfm, Airflow: 82.91 m³/h, Maximum air pressure: 1.85 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black, White

Description
	Ligdza (socket): 4-pin + RGB, Diametrs: 120 mm, Ventilators ātrums (apgr.min.): 2000 apgr.min., Apgaismojums: RGB, Skaits komplektācijā: 1, Garantija: 2 gadi

Weight	0.23
Gross weight	0.25
Description
	The ARCTIC P12 PWM PST A-RGB 0dB (model ACFAN00231A) is a high-performance 120 mm case fan optimized for high static pressure, making it an ideal choice for use on radiators and heat exchangers. The fan features 12 digital addressable RGB LEDs, providing even and rich lighting compatible with common A-RGB standards of leading motherboard manufacturers. With PWM Sharing Technology (PST), the fan's speed can synchronize with other fans in the system, ensuring efficient and quiet cooling. Key Features: Dimensions: 120 x 120 x 25 mm Rotation Speed: 0–2000 RPM (PWM controlled) Airflow: up to 48.8 CFM (82.8 m³/h) Static Pressure: up to 1.8 mm H₂O Noise Level: up to 22.5 dB Bearing Type: Fluid Dynamic Bearing Connection: 4-pin PWM with additional 3-pin socket for A-RGB Color: Black frame with white blades Lighting: 12 digital A-RGB LEDs
	ARCTIC P12 PWM PST A-RGB 0dB (modelis ACFAN00231A) ir augstas veiktspējas 120 mm korpusa ventilators, optimizēts augsta statiskā spiediena radīšanai, padarot to par ideālu izvēli izmantošanai uz radiatoriem un siltummaiņiem. Ventilators ir aprīkots ar 12 digitālām adresējamām RGB LED, kas nodrošina vienmērīgu un bagātīgu apgaismojumu, saderīgu ar izplatītajiem A-RGB standartiem vadošo mātesplatju ražotāju produktiem. Pateicoties PWM Sharing Technology (PST), ventilatora rotācijas ātrumu var sinhronizēt ar citiem sistēmas ventilatoriem, nodrošinot efektīvu un klusu dzesēšanu. Galvenās īpašības: Izmēri: 120 x 120 x 25 mm Rotācijas ātrums: 0–2000 apgr./min (regulējams caur PWM) Gaisa plūsma: līdz 48,8 CFM (82,8 m³/h) Statiskā spiediena līmenis: līdz 1,8 mm H₂O Trokšņa līmenis: līdz 22,5 dB Gultņa tips: Hidrodinamiskais gultnis (Fluid Dynamic Bearing) Pieslēgums: 4-pin PWM ar papildu 3-pin ligzdu A-RGB Krāsa: Melns korpuss ar baltām lāpstiņām Apgaismojums: 12 digitālas A-RGB LED
	ARCTIC P12 PWM PST A-RGB 0dB (модель ACFAN00231A) — это высокоэффективный 120-мм корпусной вентилятор, оптимизированный для создания высокого статического давления, что делает его идеальным выбором для использования на радиаторах и теплообменниках. Вентилятор оснащен 12 цифровыми адресуемыми RGB-светодиодами, обеспечивающими равномерное и насыщенное освещение, совместимое с распространенными стандартами A-RGB ведущих производителей материнских плат. С помощью технологии PWM Sharing Technology (PST) скорость вращения вентилятора может синхронизироваться с другими вентиляторами в системе, обеспечивая эффективное и тихое охлаждение. Основные характеристики: Размеры: 120 x 120 x 25 мм Скорость вращения: 0–2000 об/мин (регулируется через PWM) Воздушный поток: до 48,8 CFM (82,8 м³/ч) Статическое давление: до 1,8 мм H₂O Уровень шума: до 22,5 дБ Тип подшипника: Гидродинамический подшипник (Fluid Dynamic Bearing) Подключение: 4-pin PWM с дополнительным 3-pin разъемом для A-RGB Цвет: Черный корпус с белыми лопастями Светодиодная подсветка: 12 цифровых A-RGB светодиодов

Description

Description
	Ligdza (socket): 4-pin + RGB, Diametrs: 120 mm, Ventilators ātrums (apgr.min.): 2000 apgr.min., Apgaismojums: RGB, Skaits komplektācijā: 1, Garantija: 2 gadi
