    Manufacturer: ARCTIC

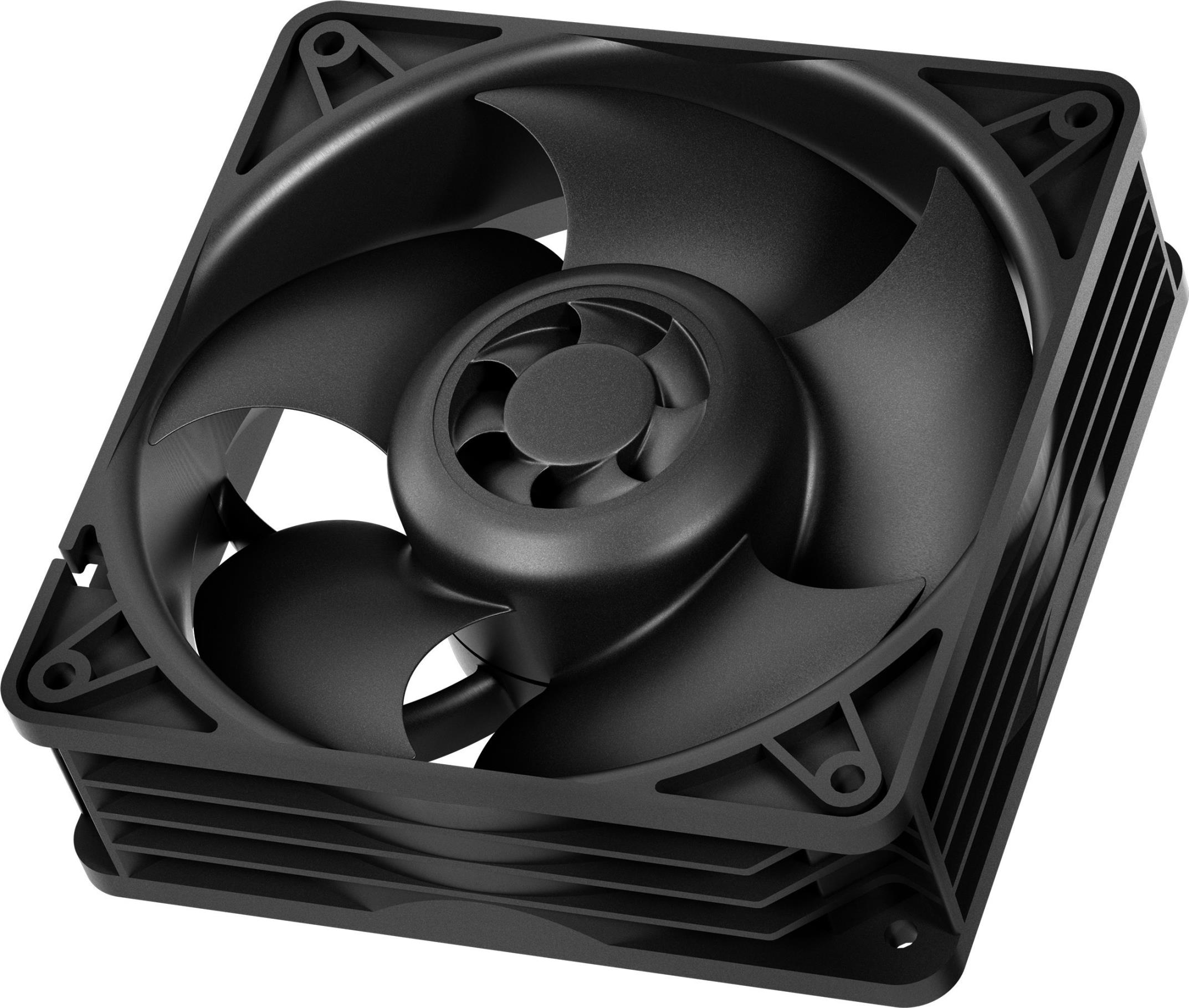

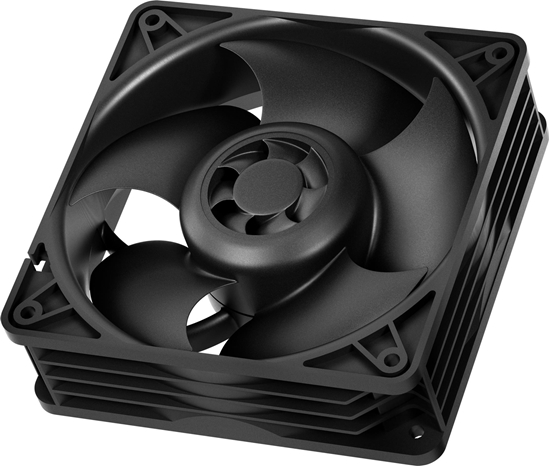

    Arctic S12038-4K Server Fan 4-pin / 120mm


    €16.69 incl tax

    SKU: ST08672460
    Manufacturer part number: ACFAN00296A
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    LT
    PL

    Products specifications
    Producer Case cooler 120 mm.
    Producer Case cooler 40 mm.
    Weight0.15
    Gross weight0.2
    Description

    The ARCTIC S12038-4K fan (model ACFAN00296A) is designed for use in computer cases, providing effective cooling for system components.

    Technical Specifications:

    • Dimensions: 120 x 120 x 38 mm
    • Rotation Speed: 600–4000 RPM
    • Airflow: up to 1063 m³/h
    • Static Pressure: 11.45 mm H₂O
    • Noise Level: up to 40 dBa
    • Bearing Type: Dual Ball Bearing
    • Speed Control: PWM (Pulse Width Modulation)
    • Cable Length: 30 cm
    • Operating Voltage: 12 V DC
    • Connector Type: 4-pin

    ARCTIC S12038-4K ventilators (modelis ACFAN00296A) ir paredzēts lietošanai datoru korpusos un nodrošina efektīvu sistēmas komponentu dzesēšanu.

    Tehniskās specifikācijas:

    • Izmēri: 120 x 120 x 38 mm
    • Griešanās ātrums: 600–4000 apgr./min
    • Gaisa plūsma: līdz 1063 m³/h
    • Statiskā spiediena: 11.45 mm ūdens kolonna
    • Troksnis līmenis: līdz 40 dBa
    • Gultņa tips: Divkāršais lodīšu gultnis
    • Ātruma kontrole: PWM (platuma impulsu modulācija)
    • Kabeļa garums: 30 cm
    • Barošanas spriegums: 12 V DC
    • Savienojuma tips: 4-pin

    Вентилятор ARCTIC S12038-4K (модель ACFAN00296A) предназначен для использования в корпусах компьютеров и обеспечивает эффективное охлаждение компонентов системы.

    Технические характеристики:

    • Размеры: 120 x 120 x 38 мм
    • Скорость вращения: 600–4000 об/мин
    • Воздушный поток: до 1063 м³/ч
    • Статическое давление: 11.45 мм водяного столба
    • Уровень шума: до 40 дБа
    • Тип подшипника: Двойной шарикоподшипник
    • Управление скоростью: PWM (широтно-импульсная модуляция)
    • Длина кабеля: 30 см
    • Напряжение питания: 12 В DC
    • Тип подключения: 4-pin
    Description
    Server Fan S12038-K, 000 RPM, -pin, 120mm, lack.rFeatures: uDesigned for continuous operation.u The impeller of the S12038-K is held y two high-quality Japanese all earings in a sturdy rass housing. This design increases the staility, strength and perpendicularity of the fan and minimises sensitivity to influences such as heat and dust. In addition, the rass housing helps to reduce wear on high-speed fans.uIdeal for industrial application.u In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliale and roust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes.uFull control with a wide speed range.u The S12038-K features a wide range of speeds from 600 to 000 rpm, which can e controlled either via PWM or voltage regulation. This wide range enales precise adjustment of the fan to the specific requirements of the server, ensuring efficient cooling performance under different operating conditions.uHigh airflow and static pressureu. Heat sinks and radiators enefit from fans with high static pressure. The S12038-K has a static pressure of 11,5 mmH?O, which enales it to push air, even through narrow cooling fins. At the same time, it achieves a maimum airflow of 180 m³h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.uIdeal for server environmentsu. Especially in server environments, fans with a high pressure are required to enale sufficient air circulation in the often tightly packed enclosures. The S12038-K fits into server cases from 3U and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. uActive cooling for etended motor lifespanu. A 10°C lower motor temperature roughly doules the service life. The motor of the S12038-K is not only particularly efficient, ut is also actively cooled y an additional impeller in the fan hu.uFleile connection optionsu.The fan has a standard -Pin fan connector and can also e connected to and controlled on 2-Pin or 3-Pin headers, while the 30cm cale allows a lot of fleiility in positioning.rSpecifications: Speed: 600-000 rpm.Air flow: 106 CFM 180 m³h.Static pressure: 11.5 mmH2O.Bearing: dual all earing with rass housing.Speed control: PWM.Voltage current: 12V DC 0.33A.Ma current: 0.60A.Starting voltage: 3.1 V DC.Connector: 2510 -Pin fan-connector.Flammaility UL 9:V-0.Motor protection: Reverse Polarity Protection.Cale length: 300 mm.Color: lack.Dimensions: 12012038 mm.Weight: 320 g.rWarranty: 6 years.

    Products specifications
    Producer Case cooler 120 mm.
    Producer Case cooler 40 mm.
    Weight0.15
    Gross weight0.2
    Description

    The ARCTIC S12038-4K fan (model ACFAN00296A) is designed for use in computer cases, providing effective cooling for system components.

    Technical Specifications:

    • Dimensions: 120 x 120 x 38 mm
    • Rotation Speed: 600–4000 RPM
    • Airflow: up to 1063 m³/h
    • Static Pressure: 11.45 mm H₂O
    • Noise Level: up to 40 dBa
    • Bearing Type: Dual Ball Bearing
    • Speed Control: PWM (Pulse Width Modulation)
    • Cable Length: 30 cm
    • Operating Voltage: 12 V DC
    • Connector Type: 4-pin

    ARCTIC S12038-4K ventilators (modelis ACFAN00296A) ir paredzēts lietošanai datoru korpusos un nodrošina efektīvu sistēmas komponentu dzesēšanu.

    Tehniskās specifikācijas:

    • Izmēri: 120 x 120 x 38 mm
    • Griešanās ātrums: 600–4000 apgr./min
    • Gaisa plūsma: līdz 1063 m³/h
    • Statiskā spiediena: 11.45 mm ūdens kolonna
    • Troksnis līmenis: līdz 40 dBa
    • Gultņa tips: Divkāršais lodīšu gultnis
    • Ātruma kontrole: PWM (platuma impulsu modulācija)
    • Kabeļa garums: 30 cm
    • Barošanas spriegums: 12 V DC
    • Savienojuma tips: 4-pin

    Вентилятор ARCTIC S12038-4K (модель ACFAN00296A) предназначен для использования в корпусах компьютеров и обеспечивает эффективное охлаждение компонентов системы.

    Технические характеристики:

    • Размеры: 120 x 120 x 38 мм
    • Скорость вращения: 600–4000 об/мин
    • Воздушный поток: до 1063 м³/ч
    • Статическое давление: 11.45 мм водяного столба
    • Уровень шума: до 40 дБа
    • Тип подшипника: Двойной шарикоподшипник
    • Управление скоростью: PWM (широтно-импульсная модуляция)
    • Длина кабеля: 30 см
    • Напряжение питания: 12 В DC
    • Тип подключения: 4-pin
    Description
    Server Fan S12038-K, 000 RPM, -pin, 120mm, lack.rFeatures: uDesigned for continuous operation.u The impeller of the S12038-K is held y two high-quality Japanese all earings in a sturdy rass housing. This design increases the staility, strength and perpendicularity of the fan and minimises sensitivity to influences such as heat and dust. In addition, the rass housing helps to reduce wear on high-speed fans.uIdeal for industrial application.u In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliale and roust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes.uFull control with a wide speed range.u The S12038-K features a wide range of speeds from 600 to 000 rpm, which can e controlled either via PWM or voltage regulation. This wide range enales precise adjustment of the fan to the specific requirements of the server, ensuring efficient cooling performance under different operating conditions.uHigh airflow and static pressureu. Heat sinks and radiators enefit from fans with high static pressure. The S12038-K has a static pressure of 11,5 mmH?O, which enales it to push air, even through narrow cooling fins. At the same time, it achieves a maimum airflow of 180 m³h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.uIdeal for server environmentsu. Especially in server environments, fans with a high pressure are required to enale sufficient air circulation in the often tightly packed enclosures. The S12038-K fits into server cases from 3U and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. uActive cooling for etended motor lifespanu. A 10°C lower motor temperature roughly doules the service life. The motor of the S12038-K is not only particularly efficient, ut is also actively cooled y an additional impeller in the fan hu.uFleile connection optionsu.The fan has a standard -Pin fan connector and can also e connected to and controlled on 2-Pin or 3-Pin headers, while the 30cm cale allows a lot of fleiility in positioning.rSpecifications: Speed: 600-000 rpm.Air flow: 106 CFM 180 m³h.Static pressure: 11.5 mmH2O.Bearing: dual all earing with rass housing.Speed control: PWM.Voltage current: 12V DC 0.33A.Ma current: 0.60A.Starting voltage: 3.1 V DC.Connector: 2510 -Pin fan-connector.Flammaility UL 9:V-0.Motor protection: Reverse Polarity Protection.Cale length: 300 mm.Color: lack.Dimensions: 12012038 mm.Weight: 320 g.rWarranty: 6 years.
