    Manufacturer: ARCTIC

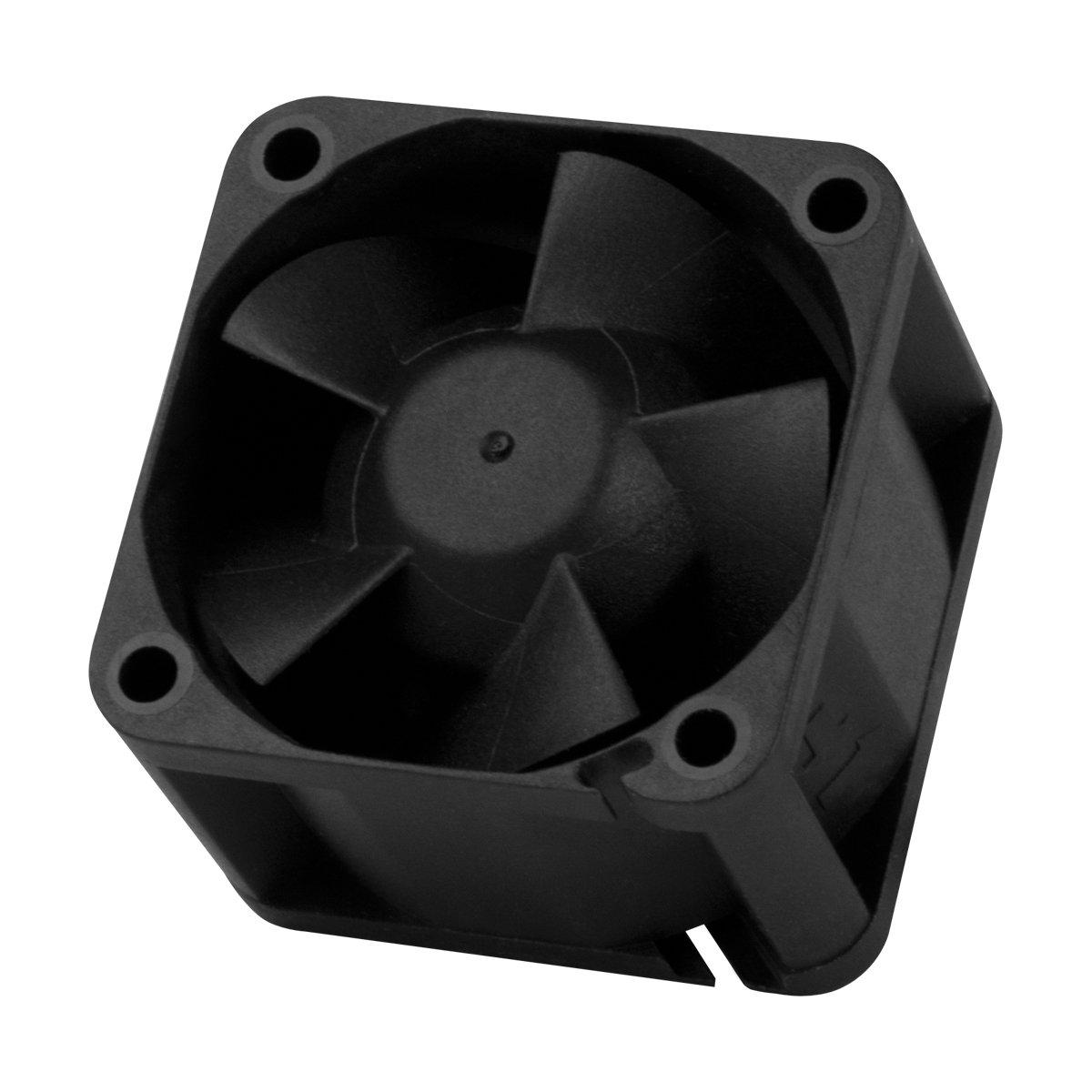

    ARCTIC S4028-15K - 40 mm Server Fan


    €16.02 incl tax

    SKU: ST06565860
    Manufacturer part number: ACFAN00264A
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Producer Case cooler 40 mm.
    Suitable locationComputer case
    TypeFan
    Fan diameter4 cm
    Rotational speed (min)1400 RPM
    Rotational speed (max)15000 RPM
    Maximum airflow19.23 cfm
    Airflow32.67 m³/h
    Maximum air pressure26.5 mmH2O
    Pulse-width modulation (PWM) supportYes
    Bearing typeFluid Dynamic Bearing (FDB)
    Fan bearing technologyFluid Dynamic Bearing (FDB)
    Quantity per pack1 pc(s)
    Product colourBlack
    Fan connector4-pin
    Voltage12 V
    Starting voltage4.5 V
    Rated current0.47 A
    Width40 mm
    Depth40 mm
    Height28 mm
    Weight42 g
    Cable length0.4 m
    Package width33 mm
    Package depth45 mm
    Package height57 mm
    Package weight51 g
    Package typeBox
    Screws includedYes
    Number of screws4
    Harmonized System (HS) code84733080
    Description
    ARCTIC S4028-15K - 40 mm Server Fan. Type: Fan, Fan diameter: 4 cm, Rotational speed (min): 1400 RPM, Rotational speed (max): 15000 RPM, Maximum airflow: 19.23 cfm, Airflow: 32.67 m³/h, Maximum air pressure: 26.5 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 40 mm, Depth: 40 mm, Height: 28 mm. Product colour: Black
    Weight0.1
    Gross weight0.12
    Description

    The ARCTIC S4028-15K fan (model ACFAN00264A) is designed for use in compact cases and server systems, providing effective cooling in limited spaces.

    Technical Specifications:

    • Dimensions: 40 x 40 x 28 mm
    • Rotation Speed: 1400–15000 RPM
    • Airflow: up to 32.67 m³/h (19.23 CFM)
    • Static Pressure: 26.5 mm H₂O
    • Noise Level: up to 40 dBa
    • Bearing Type: Dual Ball Bearing
    • Speed Control: PWM (Pulse Width Modulation)
    • Cable Length: 40 cm
    • Operating Voltage: 12 V DC
    • Connector Type: 4-pin

    ARCTIC S4028-15K ventilators (modelis ACFAN00264A) ir paredzēts lietošanai kompaktos korpusos un serveru sistēmās, nodrošinot efektīvu dzesēšanu ierobežotā telpā.

    Tehniskās specifikācijas:

    • Izmēri: 40 x 40 x 28 mm
    • Griešanās ātrums: 1400–15000 apgr./min
    • Gaisa plūsma: līdz 32.67 m³/h (19.23 CFM)
    • Statiskā spiediena: 26.5 mm ūdens kolonna
    • Troksnis līmenis: līdz 40 dBa
    • Gultņa tips: Divkāršais lodīšu gultnis
    • Ātruma kontrole: PWM (platuma impulsu modulācija)
    • Kabeļa garums: 40 cm
    • Barošanas spriegums: 12 V DC
    • Savienojuma tips: 4-pin

    Вентилятор ARCTIC S4028-15K (модель ACFAN00264A) предназначен для использования в компактных корпусах и серверных системах, обеспечивая эффективное охлаждение при ограниченном пространстве.

    Технические характеристики:

    • Размеры: 40 x 40 x 28 мм
    • Скорость вращения: 1400–15000 об/мин
    • Воздушный поток: до 32.67 м³/ч (19.23 CFM)
    • Статическое давление: 26.5 мм водяного столба
    • Уровень шума: до 40 дБа
    • Тип подшипника: Двойной шарикоподшипник
    • Управление скоростью: PWM (широтно-импульсная модуляция)
    • Длина кабеля: 40 см
    • Напряжение питания: 12 В DC
    • Тип подключения: 4-pin
    Description
    Server Fan S028-15K, 15000RPM, -pin, 0mm, lack.rFeatures: uDesigned for continuous operation.u The impeller of the S028-15K is held in place y two all earings and is therefore particularly durale and less sensitive to eternal influences. Contamination and high temperatures affect this earing much less than ordinary sleeve or all earings. Therefore, the dual all earing is the perfect choice if you want to ensure continuous operation at maimum speed.uFull control with a wide speed range.u The S028-15K has a very wide speed range that can e regulated via PWM and voltage. With its 15000 rpm ma, it offers a good alance etween cooling power and noise.uHigh airflow and static pressureu. With a static pressure of 26.5 mmH2O and a maimum airflow of 32.67 m³h, the S028-15K is a true all-rounder and is suitale as oth a radiator and case fan.uWide range of applicationsu.The S028-15K fits into 1U server cases and can serve as a replacement fan for routers, switches, and NAS. It can also e used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures, and 3D printers.uFleile connection optionsu.The fan has a standard -Pin fan connector and can also e connected to and controlled on 2-Pin or 3-Pin headers, while the 0cm cale allows a lot of fleiility in positioning.rSpecifications: Speed: 100-15000 rpm.Air flow: 19.23 CFM 32.67 m³h.Static pressure: 26.5 mmH2O.Bearing: dual all earing.Speed control: PWM.Voltage current: 12V DC 0.7A.Starting voltage: .5V.Connector: 2510 -Pin Fan-Connector.Cale length: 00 mm.Color: lack.Dimensions: 0028 mm.Weight: 2 g.rWarranty: 6 years.

    Products specifications
    Producer Case cooler 40 mm.
    Suitable locationComputer case
    TypeFan
    Fan diameter4 cm
    Rotational speed (min)1400 RPM
    Rotational speed (max)15000 RPM
    Maximum airflow19.23 cfm
    Airflow32.67 m³/h
    Maximum air pressure26.5 mmH2O
    Pulse-width modulation (PWM) supportYes
    Bearing typeFluid Dynamic Bearing (FDB)
    Fan bearing technologyFluid Dynamic Bearing (FDB)
    Quantity per pack1 pc(s)
    Product colourBlack
    Fan connector4-pin
    Voltage12 V
    Starting voltage4.5 V
    Rated current0.47 A
    Width40 mm
    Depth40 mm
    Height28 mm
    Weight42 g
    Cable length0.4 m
    Package width33 mm
    Package depth45 mm
    Package height57 mm
    Package weight51 g
    Package typeBox
    Screws includedYes
    Number of screws4
    Harmonized System (HS) code84733080
    Description
    ARCTIC S4028-15K - 40 mm Server Fan. Type: Fan, Fan diameter: 4 cm, Rotational speed (min): 1400 RPM, Rotational speed (max): 15000 RPM, Maximum airflow: 19.23 cfm, Airflow: 32.67 m³/h, Maximum air pressure: 26.5 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 40 mm, Depth: 40 mm, Height: 28 mm. Product colour: Black
    Weight0.1
    Gross weight0.12
    Description

    The ARCTIC S4028-15K fan (model ACFAN00264A) is designed for use in compact cases and server systems, providing effective cooling in limited spaces.

    Technical Specifications:

    • Dimensions: 40 x 40 x 28 mm
    • Rotation Speed: 1400–15000 RPM
    • Airflow: up to 32.67 m³/h (19.23 CFM)
    • Static Pressure: 26.5 mm H₂O
    • Noise Level: up to 40 dBa
    • Bearing Type: Dual Ball Bearing
    • Speed Control: PWM (Pulse Width Modulation)
    • Cable Length: 40 cm
    • Operating Voltage: 12 V DC
    • Connector Type: 4-pin

    ARCTIC S4028-15K ventilators (modelis ACFAN00264A) ir paredzēts lietošanai kompaktos korpusos un serveru sistēmās, nodrošinot efektīvu dzesēšanu ierobežotā telpā.

    Tehniskās specifikācijas:

    • Izmēri: 40 x 40 x 28 mm
    • Griešanās ātrums: 1400–15000 apgr./min
    • Gaisa plūsma: līdz 32.67 m³/h (19.23 CFM)
    • Statiskā spiediena: 26.5 mm ūdens kolonna
    • Troksnis līmenis: līdz 40 dBa
    • Gultņa tips: Divkāršais lodīšu gultnis
    • Ātruma kontrole: PWM (platuma impulsu modulācija)
    • Kabeļa garums: 40 cm
    • Barošanas spriegums: 12 V DC
    • Savienojuma tips: 4-pin

    Вентилятор ARCTIC S4028-15K (модель ACFAN00264A) предназначен для использования в компактных корпусах и серверных системах, обеспечивая эффективное охлаждение при ограниченном пространстве.

    Технические характеристики:

    • Размеры: 40 x 40 x 28 мм
    • Скорость вращения: 1400–15000 об/мин
    • Воздушный поток: до 32.67 м³/ч (19.23 CFM)
    • Статическое давление: 26.5 мм водяного столба
    • Уровень шума: до 40 дБа
    • Тип подшипника: Двойной шарикоподшипник
    • Управление скоростью: PWM (широтно-импульсная модуляция)
    • Длина кабеля: 40 см
    • Напряжение питания: 12 В DC
    • Тип подключения: 4-pin
    Description
    Server Fan S028-15K, 15000RPM, -pin, 0mm, lack.rFeatures: uDesigned for continuous operation.u The impeller of the S028-15K is held in place y two all earings and is therefore particularly durale and less sensitive to eternal influences. Contamination and high temperatures affect this earing much less than ordinary sleeve or all earings. Therefore, the dual all earing is the perfect choice if you want to ensure continuous operation at maimum speed.uFull control with a wide speed range.u The S028-15K has a very wide speed range that can e regulated via PWM and voltage. With its 15000 rpm ma, it offers a good alance etween cooling power and noise.uHigh airflow and static pressureu. With a static pressure of 26.5 mmH2O and a maimum airflow of 32.67 m³h, the S028-15K is a true all-rounder and is suitale as oth a radiator and case fan.uWide range of applicationsu.The S028-15K fits into 1U server cases and can serve as a replacement fan for routers, switches, and NAS. It can also e used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures, and 3D printers.uFleile connection optionsu.The fan has a standard -Pin fan connector and can also e connected to and controlled on 2-Pin or 3-Pin headers, while the 0cm cale allows a lot of fleiility in positioning.rSpecifications: Speed: 100-15000 rpm.Air flow: 19.23 CFM 32.67 m³h.Static pressure: 26.5 mmH2O.Bearing: dual all earing.Speed control: PWM.Voltage current: 12V DC 0.7A.Starting voltage: .5V.Connector: 2510 -Pin Fan-Connector.Cale length: 00 mm.Color: lack.Dimensions: 0028 mm.Weight: 2 g.rWarranty: 6 years.
