    PrevASUS PRIME B650M-A WIFI II ...
    NextASUS PRIME B650M-K AMD B650...
    Manufacturer: ASUS

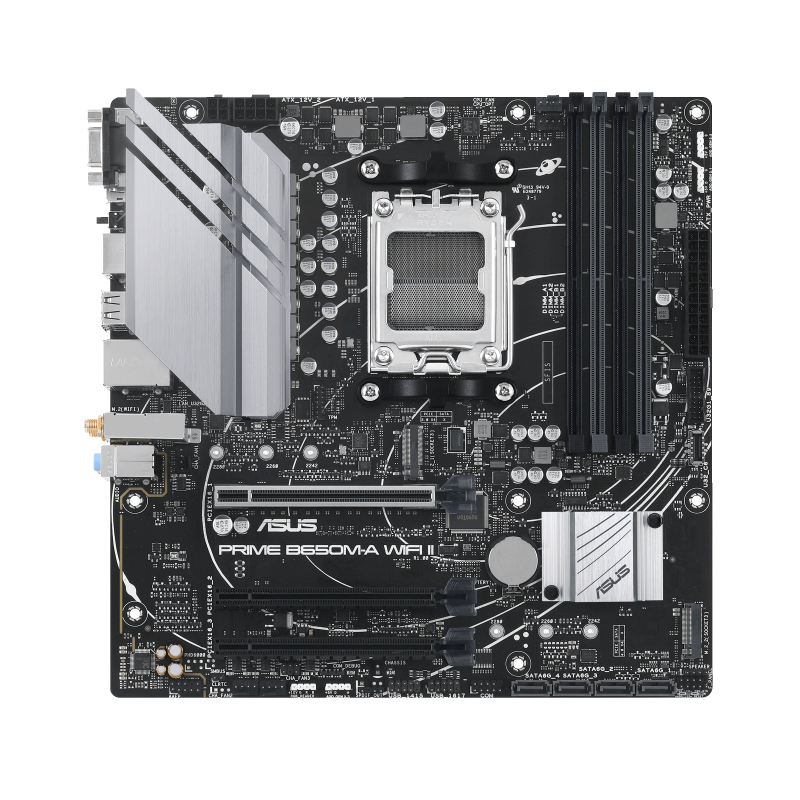

    ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX


    €206.72 incl tax

    SKU: ST06848884
    Manufacturer part number: 90MB1EG0-M0EAY0
    Manufacturer Homepage
    Warranty: 36 months
    *
    Stock Delivery Quantity Price
    LT

    Products specifications
    Video interface DisplayPort
    Form Factor mATX
    Video interface D-Sub
    Video interface HDMI
    Processor manufacturerAMD
    Processor socketSocket AM5
    Compatible processor seriesAMD Ryzen™ 7
    Supported memory typesDDR5-SDRAM
    Number of memory slots4
    Maximum internal memory128 GB
    Memory slots typeDIMM
    Memory channelsDual-channel
    ECCYes
    Non-ECCYes
    Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
    Unbuffered memoryYes
    Supported storage drive interfacesM.2, PCI Express 4.0, PCI Express 5.0, SATA
    Supported storage drive typesHDD & SSD
    Number of HDDs supported4
    Number of storage drives supported2
    RAID supportYes
    RAID levels0, 1, 10
    USB 2.0 connectors2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors2
    Number of SATA connectors4
    Total number of SATA connectors4
    S/PDIF out connectorYes
    Audio connectorYes
    Front panel connectorYes
    ATX Power connector (24-pin)Yes
    Power fan connectorYes
    CPU fan connectorYes
    Number of chassis fan connectors3
    Peripheral (Molex) power connectors (4-pin)4
    EPS power connector (8-pin)Yes
    Number of COM connectors1
    TPM connectorYes
    12V power connectorYes
    RGB LED pin headerYes
    USB 2.0 ports quantity4
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
    Ethernet LAN (RJ-45) ports1
    VGA (D-Sub) ports quantity1
    HDMI ports quantity1
    DisplayPorts quantity1
    Headphone outputs1
    Line-inYes
    Microphone inYes
    USB connector typeUSB Type-A
    Wi-FiYes
    Ethernet LANYes
    Ethernet interface type2.5 Gigabit Ethernet
    Top Wi-Fi standardWi-Fi 6 (802.11ax)
    Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
    BluetoothYes
    Bluetooth version5.2
    Component forPC
    Motherboard form factormicro ATX
    Motherboard chipset familyAMD
    Motherboard chipsetAMD B650
    Audio output channels7.1 channels
    Power source typeATX
    Windows operating systems supportedWindows 10, Windows 11
    PCI Express x16 (Gen 4.x) slots3
    BIOS typeUEFI AMI
    BIOS memory size256 Mbit
    Clear CMOS buttonYes
    Width244 mm
    Depth244 mm
    Cables includedSATA
    Bundled softwareASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
    Description
    ASUS PRIME B650M-A WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
    DescriptionASUS PRIME B650M-A WIFI II AM5 MB
    VatTypeVAT
    Weight1.405000000
    Height71.000000000
    Width277.000000000
    Length277.000000000
    Description
    ASUS PRIME B650M-A WIFI II AM5 4xDDR5 4xSATA 2xM.2
    DescriptionASUS PRIME B650M-A WIFI II AM5 MB
    VatTypeVAT
    Weight1.405000000
    Height71.000000000
    Width277.000000000
    Length277.000000000
    Description
    ASUS PRIME B650M-A WIFI II AM5 4xDDR5 4xSATA 2xM.2
    Gross depth (mm)340.00
    Gross height (mm)60.00
    Gross weight1.30
    Gross width (mm)270.00
    Net weight1.00
    Packing quantity1.00
    Paper/Pasteboard250.00
    Plastic (No PET)50.00
    Tare weight (kg)0.30
    Volume (m3)0.01
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    TI weight (kg)0.05
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Memory slots4
    Chipset AMD B650
    Producer product namePRIME B650M-A WIFI II
    Supported hard disk drive interfaces SATA, M.2
    Compatible processor seriesSupports AMD Ryzen 7000 Series Desktop Processors
    Processor familyAMD
    Motherboard form factor mATX
    Supported memory typesDDR5 DIMM
    Processor socketAM5
    Number of SATA connectors4
    Gross depth master carton286
    Gross width master carton380
    Gross height master carton370
    Net weight master carton9.665
    Tare weight master carton0.684
    Palette Qty314
    ProducerAsus
    Warranty36

    Products specifications
    Video interface DisplayPort
    Form Factor mATX
    Video interface D-Sub
    Video interface HDMI
    Processor manufacturerAMD
    Processor socketSocket AM5
    Compatible processor seriesAMD Ryzen™ 7
    Supported memory typesDDR5-SDRAM
    Number of memory slots4
    Maximum internal memory128 GB
    Memory slots typeDIMM
    Memory channelsDual-channel
    ECCYes
    Non-ECCYes
    Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
    Unbuffered memoryYes
    Supported storage drive interfacesM.2, PCI Express 4.0, PCI Express 5.0, SATA
    Supported storage drive typesHDD & SSD
    Number of HDDs supported4
    Number of storage drives supported2
    RAID supportYes
    RAID levels0, 1, 10
    USB 2.0 connectors2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors2
    Number of SATA connectors4
    Total number of SATA connectors4
    S/PDIF out connectorYes
    Audio connectorYes
    Front panel connectorYes
    ATX Power connector (24-pin)Yes
    Power fan connectorYes
    CPU fan connectorYes
    Number of chassis fan connectors3
    Peripheral (Molex) power connectors (4-pin)4
    EPS power connector (8-pin)Yes
    Number of COM connectors1
    TPM connectorYes
    12V power connectorYes
    RGB LED pin headerYes
    USB 2.0 ports quantity4
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
    Ethernet LAN (RJ-45) ports1
    VGA (D-Sub) ports quantity1
    HDMI ports quantity1
    DisplayPorts quantity1
    Headphone outputs1
    Line-inYes
    Microphone inYes
    USB connector typeUSB Type-A
    Wi-FiYes
    Ethernet LANYes
    Ethernet interface type2.5 Gigabit Ethernet
    Top Wi-Fi standardWi-Fi 6 (802.11ax)
    Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
    BluetoothYes
    Bluetooth version5.2
    Component forPC
    Motherboard form factormicro ATX
    Motherboard chipset familyAMD
    Motherboard chipsetAMD B650
    Audio output channels7.1 channels
    Power source typeATX
    Windows operating systems supportedWindows 10, Windows 11
    PCI Express x16 (Gen 4.x) slots3
    BIOS typeUEFI AMI
    BIOS memory size256 Mbit
    Clear CMOS buttonYes
    Width244 mm
    Depth244 mm
    Cables includedSATA
    Bundled softwareASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
    Description
    ASUS PRIME B650M-A WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
    DescriptionASUS PRIME B650M-A WIFI II AM5 MB
    VatTypeVAT
    Weight1.405000000
    Height71.000000000
    Width277.000000000
    Length277.000000000
    Description
    ASUS PRIME B650M-A WIFI II AM5 4xDDR5 4xSATA 2xM.2
    DescriptionASUS PRIME B650M-A WIFI II AM5 MB
    VatTypeVAT
    Weight1.405000000
    Height71.000000000
    Width277.000000000
    Length277.000000000
    Description
    ASUS PRIME B650M-A WIFI II AM5 4xDDR5 4xSATA 2xM.2
    Gross depth (mm)340.00
    Gross height (mm)60.00
    Gross weight1.30
    Gross width (mm)270.00
    Net weight1.00
    Packing quantity1.00
    Paper/Pasteboard250.00
    Plastic (No PET)50.00
    Tare weight (kg)0.30
    Volume (m3)0.01
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    TI weight (kg)0.05
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Memory slots4
    Chipset AMD B650
    Producer product namePRIME B650M-A WIFI II
    Supported hard disk drive interfaces SATA, M.2
    Compatible processor seriesSupports AMD Ryzen 7000 Series Desktop Processors
    Processor familyAMD
    Motherboard form factor mATX
    Supported memory typesDDR5 DIMM
    Processor socketAM5
    Number of SATA connectors4
    Gross depth master carton286
    Gross width master carton380
    Gross height master carton370
    Net weight master carton9.665
    Tare weight master carton0.684
    Palette Qty314
    ProducerAsus
    Warranty36
