Manufacturer: ASUS

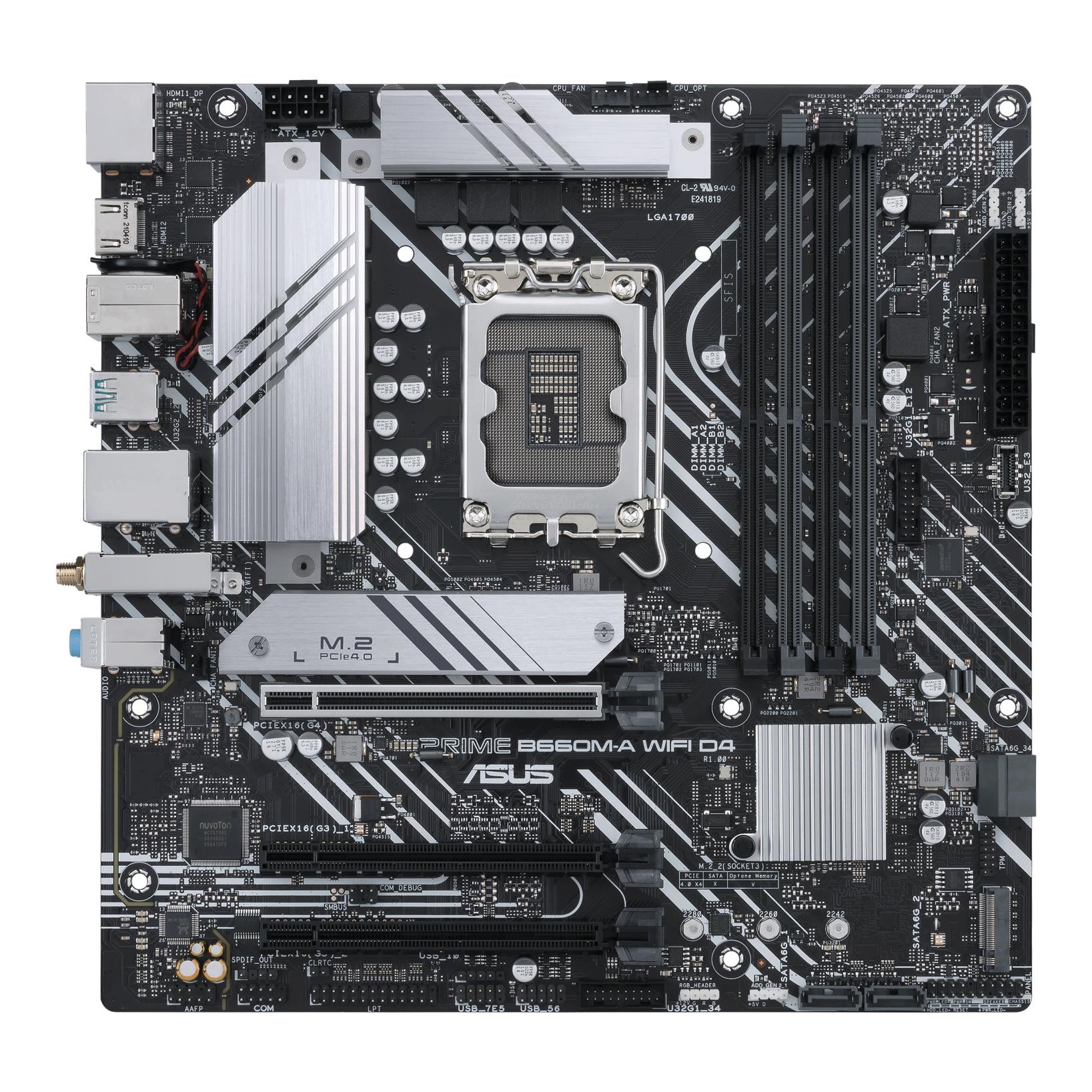

Asus PRIME B660M-A WIFI D4

€138.70 incl tax

SKU: ST05215235

Manufacturer part number: 90MB1AE0-M0EAY0

Manufacturer Homepage

Stock *

	Stock	Delivery	Quantity	Price
	LV	2 - 5 days	82	€138.70 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5

Memory type	DDR4
Form Factor	mATX
CPU Socket	LGA 1700
Video interface	HDMI
Video interface	DisplayPort

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Maximum number of SMP processors	1
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000,5333 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA
Supported storage drive types	HDD & SSD
RAID levels	0, 1, 5, 10
Number of displays supported	3
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Number of COM connectors	1
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
PS/2 ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Microphone in	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Harmonized System (HS) code	84733020
Width	244 mm
Depth	244 mm
Height	60 mm
Cables included	SATA
Drivers included	Yes
Weight	819 g
Description
Description	ASUS PRIME B660M-A WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Description
	Mikroshēmu tips \| chipset: Intel B660, Plates formfaktors: Micro ATX, Procesora ražotājs: Intel, Ligzda: LGA 1700, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, WiFi: Ir, M.2 Pieslēgumi: 2, Garantija: 2 gadi

Weight	1.3
Gross weight	1.4
Description
	Model: PRIME B660M-A WIFI D4 CPU Support: Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel^® B660 Chipset Memory** 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) OptiMem II Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics* 1 x DisplayPort 2 x HDMI^® ports* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots* Intel^® 13^th & 12^th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel^® B660 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) Supports Intel^® Optane Memory H Series on PCH-attached PCIe slot Storage* Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel^® 13^th & 12^thGen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel^® 12^th Gen processors support PCIe 4.0 x4 mode. Intel^® B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel^® 1Gb Ethernet Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 headers support additional 1 USB 2.0 port Audio** Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port Miscellaneous** 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
	Model: PRIME B660M-A WIFI D4 CPU Support: Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel^® B660 Chipset Memory** 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) OptiMem II Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics* 1 x DisplayPort 2 x HDMI^® ports* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots* Intel^® 13^th & 12^th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel^® B660 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) Supports Intel^® Optane Memory H Series on PCH-attached PCIe slot Storage* Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel^® 13^th & 12^thGen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel^® 12^th Gen processors support PCIe 4.0 x4 mode. Intel^® B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel^® 1Gb Ethernet Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 headers support additional 1 USB 2.0 port Audio** Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port Miscellaneous** 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
	Model: PRIME B660M-A WIFI D4 CPU Support: Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel^® B660 Chipset Memory** 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) OptiMem II Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics* 1 x DisplayPort 2 x HDMI^® ports* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots* Intel^® 13^th & 12^th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel^® B660 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) Supports Intel^® Optane Memory H Series on PCH-attached PCIe slot Storage* Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel^® 13^th & 12^thGen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel^® 12^th Gen processors support PCIe 4.0 x4 mode. Intel^® B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel^® 1Gb Ethernet Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 headers support additional 1 USB 2.0 port Audio** Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port Miscellaneous** 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function

Description
	Mikroshēmu tips \| chipset: Intel B660, Plates formfaktors: Micro ATX, Procesora ražotājs: Intel, Ligzda: LGA 1700, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, Integrēta audio karte: Realtek 7.1 Surround Sound High Definition Audio CODEC, LAN: Intel GbE LAN chip (1000 Mbit/100 Mbit), WiFi: Ir, M.2 Pieslēgumi: 2, Garantija: 2 gadi

Products specifications

1
Details 2
Details 3
Details 4
Details 5

Memory type	DDR4
Form Factor	mATX
CPU Socket	LGA 1700
Video interface	HDMI
Video interface	DisplayPort

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Maximum number of SMP processors	1
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000,5333 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA
Supported storage drive types	HDD & SSD
RAID levels	0, 1, 5, 10
Number of displays supported	3
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Number of COM connectors	1
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
PS/2 ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Microphone in	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Harmonized System (HS) code	84733020
Width	244 mm
Depth	244 mm
Height	60 mm
Cables included	SATA
Drivers included	Yes
Weight	819 g
Description
Description	ASUS PRIME B660M-A WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Description
	Mikroshēmu tips \| chipset: Intel B660, Plates formfaktors: Micro ATX, Procesora ražotājs: Intel, Ligzda: LGA 1700, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, WiFi: Ir, M.2 Pieslēgumi: 2, Garantija: 2 gadi

Weight	1.3
Gross weight	1.4
Description
	Model: PRIME B660M-A WIFI D4 CPU Support: Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel^® B660 Chipset Memory** 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) OptiMem II Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics* 1 x DisplayPort 2 x HDMI^® ports* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots* Intel^® 13^th & 12^th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel^® B660 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) Supports Intel^® Optane Memory H Series on PCH-attached PCIe slot Storage* Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel^® 13^th & 12^thGen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel^® 12^th Gen processors support PCIe 4.0 x4 mode. Intel^® B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel^® 1Gb Ethernet Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 headers support additional 1 USB 2.0 port Audio** Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port Miscellaneous** 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
	Model: PRIME B660M-A WIFI D4 CPU Support: Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel^® B660 Chipset Memory** 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) OptiMem II Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics* 1 x DisplayPort 2 x HDMI^® ports* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots* Intel^® 13^th & 12^th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel^® B660 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) Supports Intel^® Optane Memory H Series on PCH-attached PCIe slot Storage* Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel^® 13^th & 12^thGen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel^® 12^th Gen processors support PCIe 4.0 x4 mode. Intel^® B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel^® 1Gb Ethernet Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 headers support additional 1 USB 2.0 port Audio** Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port Miscellaneous** 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
	Model: PRIME B660M-A WIFI D4 CPU Support: Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel^® B660 Chipset Memory** 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) OptiMem II Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics* 1 x DisplayPort 2 x HDMI^® ports* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots* Intel^® 13^th & 12^th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel^® B660 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) Supports Intel^® Optane Memory H Series on PCH-attached PCIe slot Storage* Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel^® 13^th & 12^thGen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel^® 12^th Gen processors support PCIe 4.0 x4 mode. Intel^® B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel^® 1Gb Ethernet Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 headers support additional 1 USB 2.0 port Audio** Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port Miscellaneous** 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function

Description
	Mikroshēmu tips \| chipset: Intel B660, Plates formfaktors: Micro ATX, Procesora ražotājs: Intel, Ligzda: LGA 1700, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, Integrēta audio karte: Realtek 7.1 Surround Sound High Definition Audio CODEC, LAN: Intel GbE LAN chip (1000 Mbit/100 Mbit), WiFi: Ir, M.2 Pieslēgumi: 2, Garantija: 2 gadi
