    PrevAten 16-Port USB - PS/2 VGA...
    NextAten 1-Local/Remote Share A...
    Manufacturer: ATEN

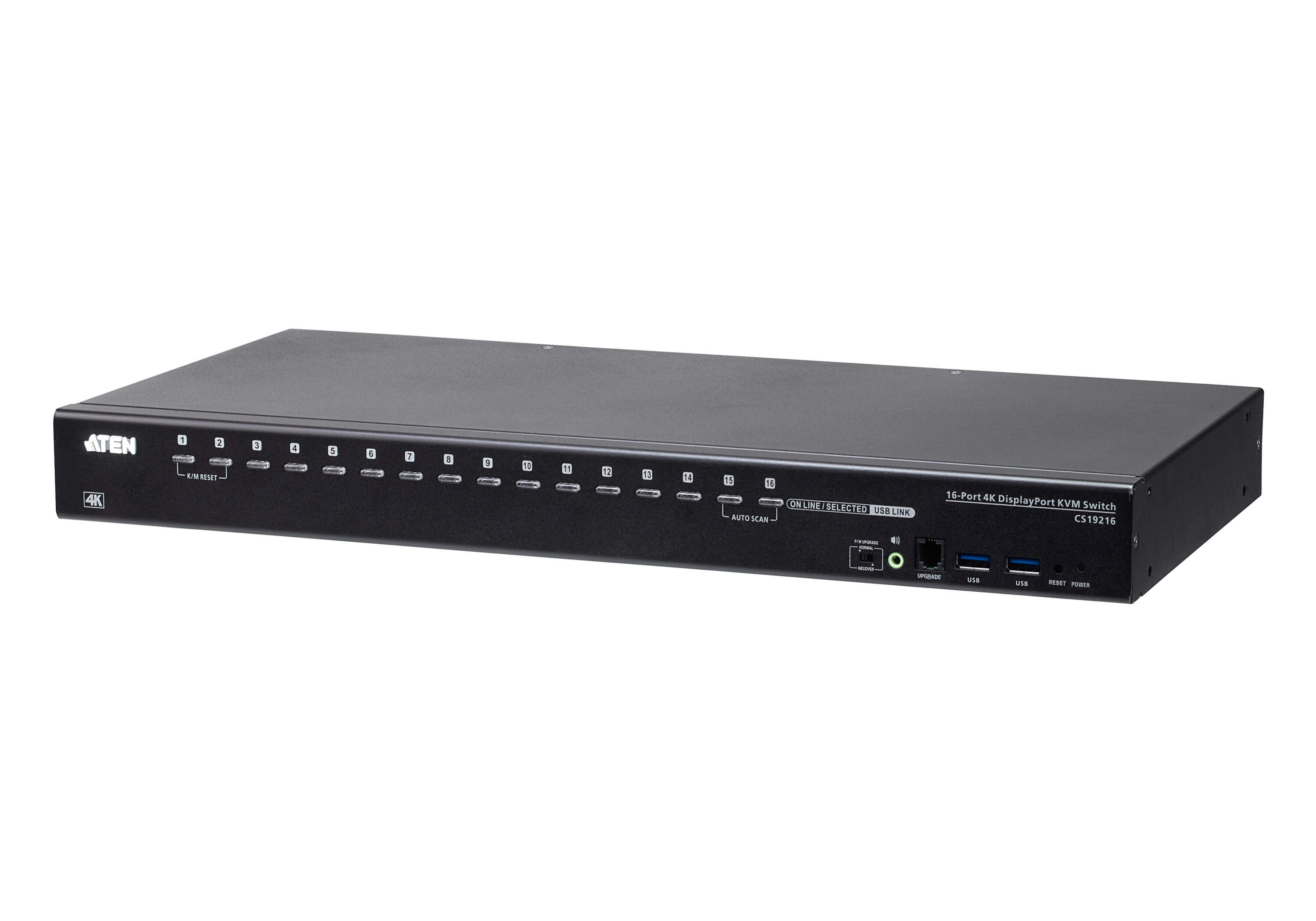

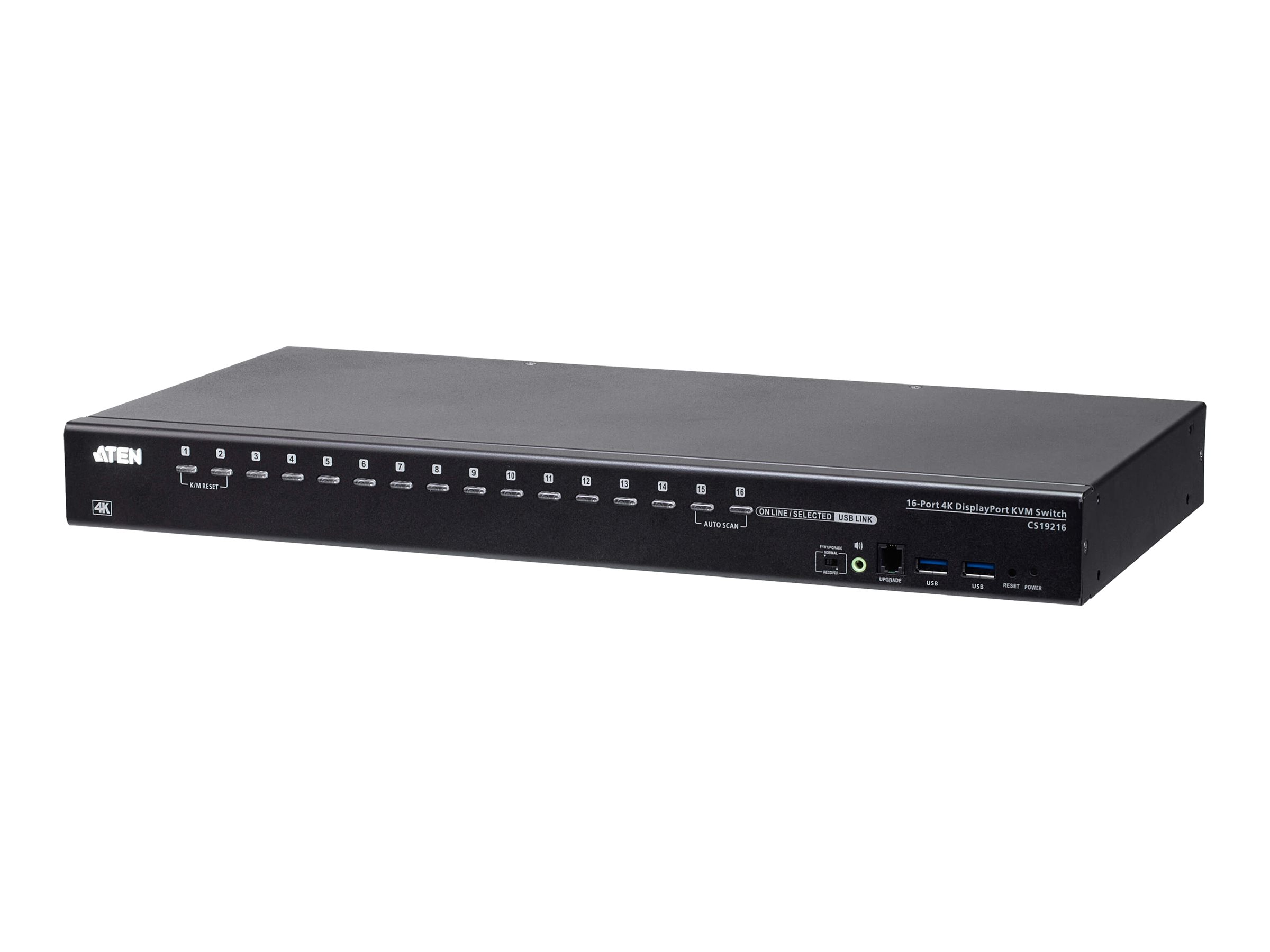

    ATEN 16-Port USB 3.0 4K DisplayPort KVM Switch


    €1770.36 incl tax

    SKU: ST07482270
    Manufacturer part number: CS19216-AT-G
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    RJ-45 port 16
    Properties Display port
    Properties USB 3.0
    Number of computers controlled16
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeDisplayPort
    Console ports3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
    DisplayPorts quantity16
    DisplayPort version1.2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity16
    Console USB ports quantity2
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    USB connector typeUSB Type-A, USB Type-B
    Audio connectionsYes
    Headphone outputs17
    Number of microphone inputs17
    DC-in jackYes
    HD type4K Ultra HD
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval1,5,255 s
    HDCPYes
    Firmware upgradeableYes
    Product colourBlack
    Housing materialMetal
    LED indicatorsYes
    Push buttonYes
    Built-in displayNo
    Power sourceDC
    DC input voltage12 V
    Power consumption (typical)26.66 W
    Windows operating systems supportedYes
    Linux operating systems supportedYes
    Mac operating systems supportedYes
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width432.4 mm
    Depth214.3 mm
    Height44 mm
    Weight4.18 kg
    Package width133 mm
    Package depth499 mm
    Package height324 mm
    Package weight5.33 kg
    Quick installation guideYes
    ManualYes
    Master (outer) case net weight12.5 kg
    Harmonized System (HS) code85176200
    Master (outer) case width427 mm
    Master (outer) case length519 mm
    Master (outer) case height348 mm
    Master (outer) case gross weight15.3 kg
    Products per master (outer) case3 pc(s)
    Description
    ATEN 16-Port USB 3.0 4K DisplayPort KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, DC input voltage: 12 V, Power consumption (typical): 26.66 W. Width: 432.4 mm, Depth: 214.3 mm, Height: 44 mm
    Gross depth (mm)432.4
    Gross depth (mm)432.4
    Gross height (mm)44
    Gross height (mm)44
    Gross weight3.86
    Gross width (mm)214.3
    Gross width (mm)214.3
    Net weight3.54
    Tare weight (kg)0.32
    Tare weight (kg)0.32
    Volume (m3)0.00407718608
    Volume (m3)0.00407718608
    Gross depth master carton565
    Gross depth master carton565
    Gross width master carton387
    Gross width master carton387
    Gross height master carton260
    Gross height master carton260
    Net weight master carton8.022
    Net weight master carton8.022
    Tare weight master carton0.966
    Tare weight master carton0.966
