Manufacturer: ATEN

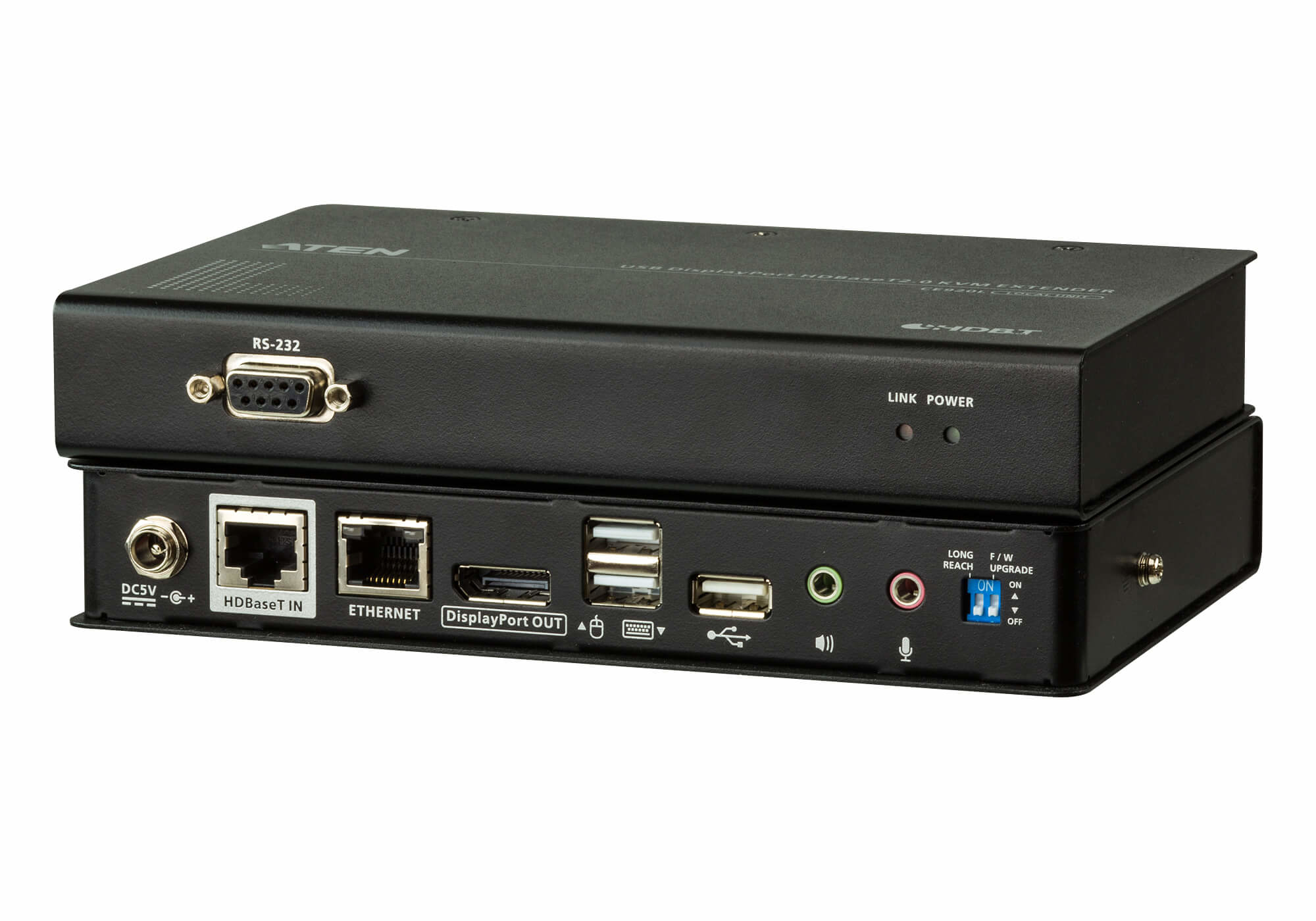

ATEN CE920-ATA-G KVM extender Transmitter & receiver

€789.65 incl tax

SKU: ST07041252

Manufacturer part number: CE920-ATA-G

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
LT	3 - 5 days	20	€789.65 incl tax
LT	5 - 15 days	5	€950.95 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

Properties	Display port
RJ-45 port	1
Properties	USB

Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	150 m
Cable types supported	Cat5e, Cat6, Cat6a
Rack mounting	Yes
Maximum digital resolution	4096 x 2160 pixels
Product colour	Black
Material	Metal
USB 2.0 ports quantity	4
USB data transfer rates	480 Mbit/s
LED indicators	Yes
Transmitter video port type	DisplayPort
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Receiver local video port type	DisplayPort
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
AC adapter output voltage	5 V
Power consumption (transmitter) (max)	3.99 W
Power consumption (receiver) (max)	6.74 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Transmitter width	18.2 cm
Transmitter depth	12.2 cm
Transmitter height	2.87 cm
Transmitter weight	630 g
Receiver width	18.2 cm
Receiver depth	12.2 cm
Receiver height	2.87 cm
Receiver weight	650 g
Package width	98 mm
Package depth	325 mm
Package height	210 mm
Package weight	2.18 kg
AC adapter included	Yes
Cables included	DisplayPort
Manual	Yes
Mounting bracket(s) included	Yes
PC Audio in	Yes
PC Audio out	Yes
Description
Description	ATEN CE920-ATA-G. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: DisplayPort, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: DisplayPort, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 5 V, Power consumption (transmitter) (max): 3.99 W, Power consumption (receiver) (max): 6.74 W. Transmitter width: 18.2 cm, Transmitter depth: 12.2 cm, Transmitter height: 2.87 cm

Gross depth (mm)	325.00
Gross height (mm)	210.00
Gross weight	2.16
Gross width (mm)	100.00
Net weight	1.34
Packing quantity	1.00
Paper/Pasteboard	767.00
Plastic (No PET)	59.00
Tare weight (kg)	0.83
Volume (m3)	0.01
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Producer product name	CE920 USB DisplayPort HDBaseT2.0
Producer product family	KVM Extenders
Cable	1 x USB Type-A to Type-B Cable; 1 x DisplayPort Cable
Other features	Full-Speed USB 2.0 Ports - Provides consistent transfer speeds for peripherals; EDID buffer for smooth turn on and high quality display; Supports 2-channel stereo audio for high quality applications
I/O ports	Console Ports: 1 x DisplayPort Female (Black); 3 x USB Type A Female; 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink); 1 x RJ-45 Female (Black); KVM Ports: 1 x DisplayPort Female (Black); 1 x USB Type B Female (White); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink); 1 x RJ-45 Female (Black)
Palette Qty	253
Producer	Aten
Warranty	24
