Manufacturer: ATEN

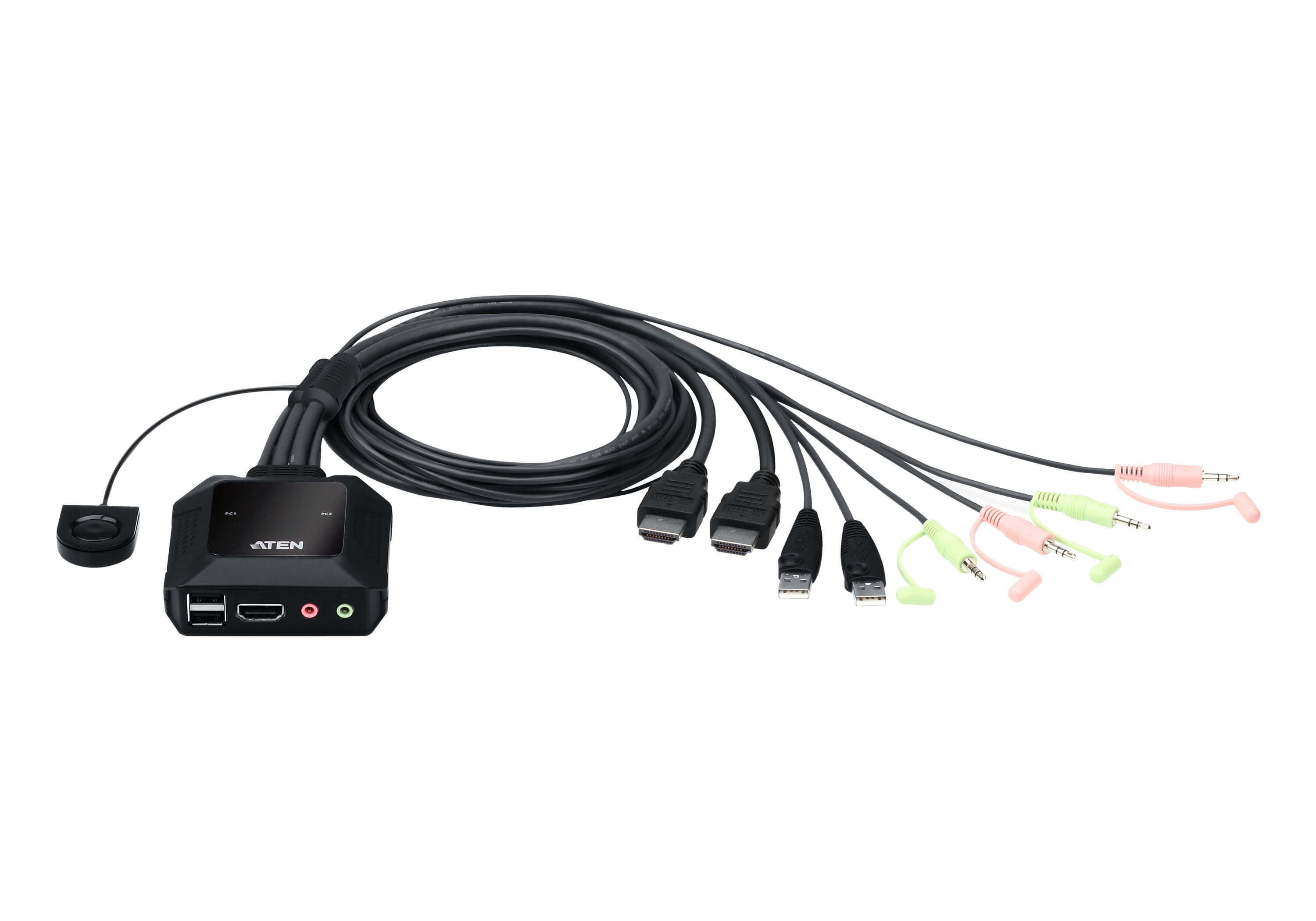

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector

€69.94 incl tax

SKU: ST05398710

Manufacturer part number: CS22H-AT

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LT	3 - 5 days	10	€69.94 incl tax
LV	2 - 5 days	1	€74.21 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

Properties	HDMI
RJ-45 port	2
Properties	USB

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
HDMI ports quantity	3
Console USB ports quantity	2
Audio connections	Yes
Headphone outputs	3
Number of microphone inputs	3
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	60 Hz
Rack mounting	No
Product colour	Black
Housing material	Plastic
LED indicators	Yes
Built-in display	No
Power source	DC
DC input voltage	5 V
Power consumption (typical)	3.47 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Width	83.4 mm
Depth	84.2 mm
Height	30.4 mm
Weight	340 g
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	420 g
Quick installation guide	Yes
Master (outer) case net weight	6.8 kg
Harmonized System (HS) code	85176200
Master (outer) case width	328 mm
Master (outer) case length	389 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	9.3 kg
Products per master (outer) case	20 pc(s)
Description
Description	ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 3.47 W. Width: 83.4 mm, Depth: 84.2 mm, Height: 30.4 mm

Gross depth (mm)	83.4
Gross height (mm)	30.4
Gross weight	0.44
Gross width (mm)	84.2
Net weight	0.34
Packing quantity	1.00
Paper/Pasteboard	85
Plastic (No PET)	15
Tare weight (kg)	0.1
Volume (m3)	0.000213477312
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Inner carton packing Qty	1.00
Producer product name	CS22H-AT
Other features	Console Ports: 1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink); KVM Ports: 2 x HDMI Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink); Power: 1 x USB Micro Type B Female
Producer product family	2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
Resolution	4096 x 2160 @ 60Hz
Dimensions (WxDxH)	8.42 x 8.34 x 3.04
Operating temperature (T-T)	0 to 50
Operating relative humidity (H-H)	0 - 80% RH, Non-Condensing
Palette Qty	858
Producer	Aten
Warranty	24

Products specifications

1
Details 2
Details 3

Properties	HDMI
RJ-45 port	2
Properties	USB

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
HDMI ports quantity	3
Console USB ports quantity	2
Audio connections	Yes
Headphone outputs	3
Number of microphone inputs	3
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	60 Hz
Rack mounting	No
Product colour	Black
Housing material	Plastic
LED indicators	Yes
Built-in display	No
Power source	DC
DC input voltage	5 V
Power consumption (typical)	3.47 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Width	83.4 mm
Depth	84.2 mm
Height	30.4 mm
Weight	340 g
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	420 g
Quick installation guide	Yes
Master (outer) case net weight	6.8 kg
Harmonized System (HS) code	85176200
Master (outer) case width	328 mm
Master (outer) case length	389 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	9.3 kg
Products per master (outer) case	20 pc(s)
Description
Description	ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 3.47 W. Width: 83.4 mm, Depth: 84.2 mm, Height: 30.4 mm

Gross depth (mm)	83.4
Gross height (mm)	30.4
Gross weight	0.44
Gross width (mm)	84.2
Net weight	0.34
Packing quantity	1.00
Paper/Pasteboard	85
Plastic (No PET)	15
Tare weight (kg)	0.1
Volume (m3)	0.000213477312
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Inner carton packing Qty	1.00
Producer product name	CS22H-AT
Other features	Console Ports: 1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink); KVM Ports: 2 x HDMI Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink); Power: 1 x USB Micro Type B Female
Producer product family	2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
Resolution	4096 x 2160 @ 60Hz
Dimensions (WxDxH)	8.42 x 8.34 x 3.04
Operating temperature (T-T)	0 to 50
Operating relative humidity (H-H)	0 - 80% RH, Non-Condensing
Palette Qty	858
Producer	Aten
Warranty	24
