Manufacturer: TELTONIKA

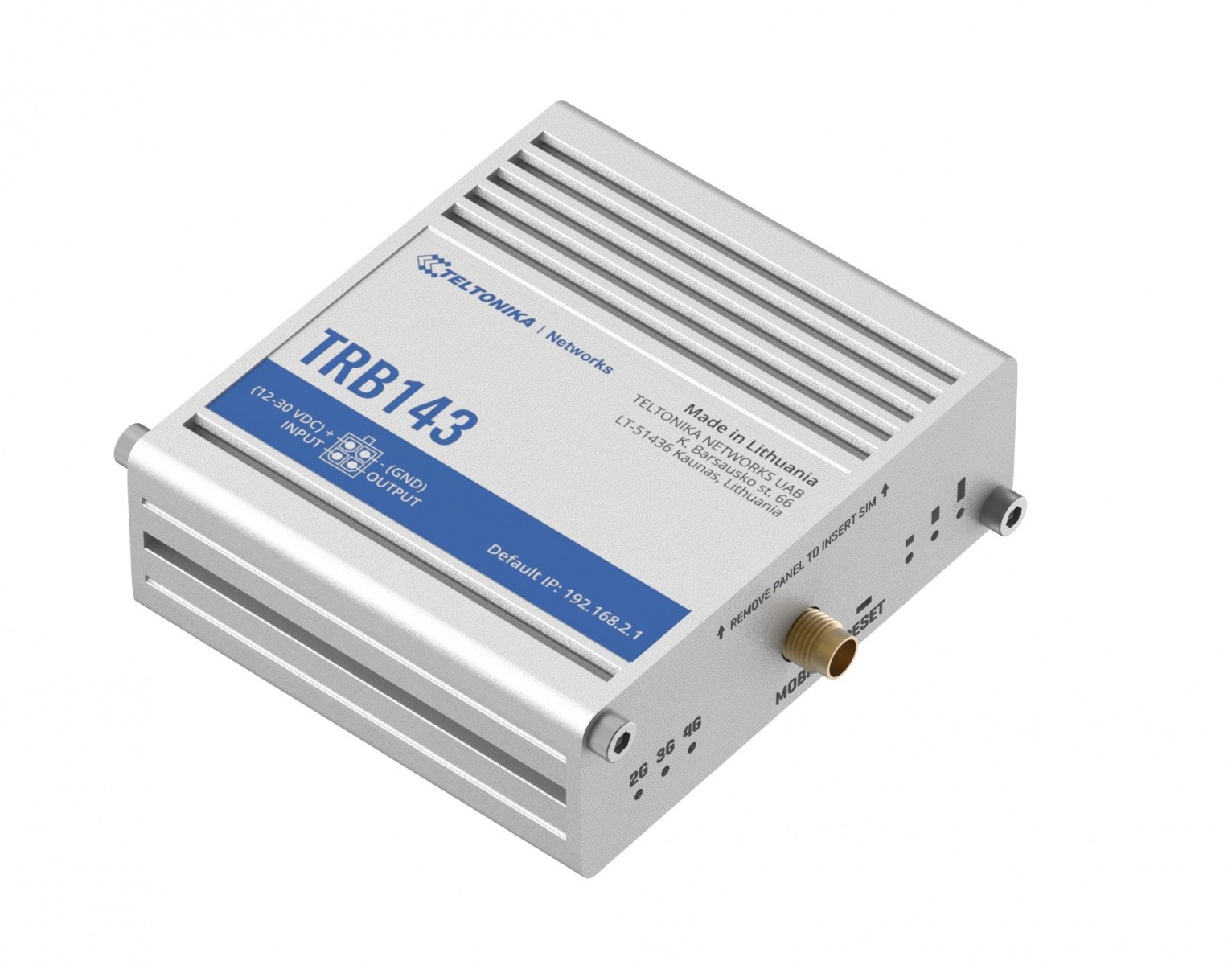

Bramka LTE TRB143 (Cat 4), 3G, 2G, M-BUS, 1xRJ-45

€192.15 incl tax

SKU: ST07559982

Manufacturer part number: TRB143000000

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LT	3 - 5 days	10	€192.15 incl tax
PL	8 - 15 days	6	€210.32 incl tax
LV	2 - 5 days	1	€213.20 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

3G/4G support	3G
Properties	RJ-45
Porto Types	SIM cards
3G/4G support	4G
RJ-45 port	1
RJ-45 port	12

Model	TRB143
Type	GSM 3G/4G
Data transmission	LTE
Data transmission	UMTS
Data transmission	GPRS
GSM network	900 MHz
GSM network	1900 MHz
UMTS network	900 MHz
UMTS network	2100 MHz
LTE network	2500 MHz
LTE network	700 MHz
LTE network	800 MHz
LTE network	900 MHz
LTE network	1800 MHz
LTE network	2100 MHz
LTE network	2300 MHz
LTE network	2600 MHz
Aero2 support	No
Standards	802.3u
Standards	802.11e
Standards	802.3
Standards	802.3az
Number of antennas	One connector
Antenna	Detachable external
Security	Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) Mobile quota control: Set up custom data limits for SIM card WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Management, monitoring, configuration	Sieć: Routing, Connection monitoring, Firewall, DHCP, QoS / Smart Queue Management (SQM), DDNS, SSHFS VPN: OpenVPN, GRE, IPsec, PPTP, L2TP, SSTP, Stunnel, DMVPN, WireGuard, ZeroTier Zarządzanie i monitorowanie: WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, Modbus, RMS Monitoring połaczenia: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Chmura: RMS, Clouds of things, ThingWorx, Cumulocity, Azure IoT Hub
Card reader	None
I/O ports	1 x 10/100/1000 Mbit/s
I/O ports	1 x SIM card slot
I/O ports	1 x M-BUS
SIM card	Mini
Power supply	Złącze 4pin, 12-30 VDC
Software	RutOS (OpenWrt based Linux OS)
Accessories included	TRB143 Zasilacz 18 W Klucz HEX Kabel LAN 1.5 M Skrócona instrukcja obsługi Antena LTE (magnetyczna, złącze męskie SMA, kabel 3m) QSG (Quick Start Guide) Skrócona instrukcja obsługi
Color	Aluminium
Weight	145 (gram)
Dimensions	74.5 x 25 x 64.4 mm
Environment requirements	Temperatura pracy: -40 °C do 75 °C Wilgotność podczas pracy: 10% do 90% bez kondensacji
Certificates	CB CE UKCA RoHS REACH WEEE
Designation	CE+WEEE
Width	150
Height	175
Depth	70
Weight	423
Description
Description	Brama TRB143 Bramka przemysłowa została zaprojektowana specjalnie do zastosowań telemetrycznych i monitorowania mediów. Wyposażono ją w interfejs M-Bus, łączność komórkową, jeden port Gigabit Ethernet i parę cyfrowych wejść/wyjść, co sprawia, że można je łatwo zastosować w niezliczonych scenariuszach monitorowania parametrów środowiskowych. Zdalne monitorowanie i konfiguracja są łatwe i bezpieczne dzięki programowym funkcjom bezpieczeństwa, takim jak wstępnie skonfigurowany Firewall i Open VPN, a także kompatybilności z FOTA, kontrolą SMS i własnym systemem zdalnego zarządzania Teltoni-ka Networks.

Description	TELTONIKA TRB143 IOT 4G GATEWAY M-BUS
CountryofOrigin	CHINA
TariffHeading	85176200
PictureLocation	https://www2.f9baltic.com/productimages/big/TRB143000000.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/TRB143000000.jpg
AdditionalPictures	TRB143000000_6.jpg TRB143000000_5.jpg TRB143000000_4.jpg TRB143000000_2.jpg
Weight	0.450000
Height	71.000000
Length	151.000000
Width	175.000000
BoxSize	0
PalletSize	0
Connections	M-Bus
Connections	Ethernet (RJ-45)
SIM card type	mini-SIM
Ethernet LAN (RJ-45) ports quantity	1
Operating temperature range (T-T), �C	- 40 - 75
Internal memory	256
Standards and Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
Weight, g	145
Total storage capacity	512 MB
Operating system provided	RutOS (OpenWrt based Linux OS)
IP classification	IP30
Green certifications	REACH
Green certifications	RoHS compliant
Ethernet LAN data transfer rates, Mbit/s	10/100/1000
Antennas quantity	1
Auto MDI/MDI-X	Yes
Dimensions W x D x H, mm	74.5 x 73 x 25
LED indicators	3 x connection type status LEDs, 3 x connection strength LEDs, 1x Power LED
Green certifications	WEEE
Wireless standard	802.3/3u
Wireless standard	802.3az
SIM card support	Yes
Description
Description	TRB143 M-BUS CELLULAR GATEWAY With an integrated M-Bus interface, the TRB143 industrial gateway was engineered explicitly for telemetry and utility-monitoring applications. Cellular and wired connectivity enhance the telemetry process by ensuring the data transferring of meter readings. This device has one Gigabit Ethernet port and a pair of digital Inputs/Outputs, which makes it easily applicable to a myriad of environmental parameter-monitoring scenarios. Remote monitoring and configuration are made easy and secure thanks to software security features, such as a preconfigured Firewall and Open VPN, and compatibility with FOTA, SMS control and Teltoni?ka Networks? own Remote Management System.

Packing quantity	1.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Producer	Teltonika
Gross weight	0.256
Net weight	0.145
Tare weight (kg)	0.111
Gross depth (mm)	170
Gross width (mm)	70
Gross height (mm)	150
Volume (m3)	0.001785
Paper/Pasteboard	111
Palette Qty	968
Ethernet LAN data rates	10/100/1000
Producer product name	TRB143
Producer product family	LTE Cat 4 M-Bus
Ethernet LAN (RJ-45) ports	1
Mesh Support	No
Mobile Broadband	4G
MU-MiMO	No
Warranty	24
