PrevTeltonika TRB160 LTE Cat 6 ...

NextTenda 4G08 Router Black

Manufacturer: TELTONIKA

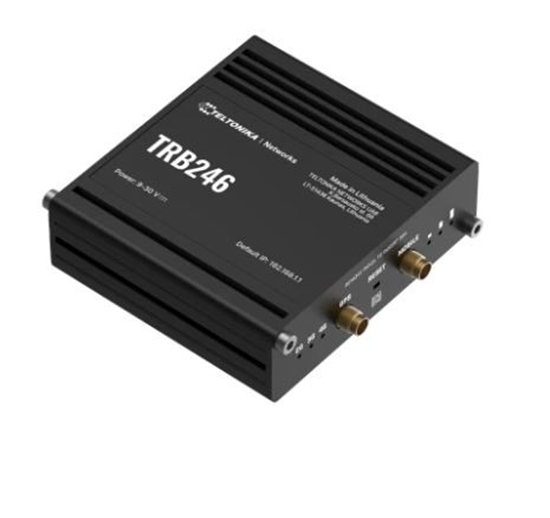

Teltonika TRB246 4G/LTE Gateway

€156.26 incl tax

SKU: ST09273653

Manufacturer part number: TRB246000600

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
LT	3 - 5 days	40	€156.26 incl tax
PL	9 - 12 days	6	€157.94 incl tax
LV	2 - 5 days	4	€173.36 incl tax
LV	7 - 12 days	8	€176.32 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

3G/4G support	3G
Porto Types	SIM cards
3G/4G support	4G
Properties	RJ-45
RJ-45 port	12
RJ-45 port	1

Model	TRB246
Type	GSM 3G/4G
Data transmission	LTE
LTE network	2100 MHz
LTE network	1800 MHz
LTE network	900 MHz
LTE network	800 MHz
LTE network	2600 MHz
LTE network	2500 MHz
LTE network	2300 MHz
Aero2 support	No
Standards	IPv4
Standards	IPv6
Standards	802.3u
Standards	802.3
Standards	802.3az
Number of antennas	Two connectors
Antenna	Detachable external
Security	Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Tag-based VLAN separation Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of SSH, Web interface, CLI and Telnet
Management, monitoring, configuration	RMS: Teltonika Remote Management System (RMS) JSON-RPC: Management API over HTTP/HTTPS SNMP: SNMP (v1, v2, v3), SNMP Trap MQTT: MQTT Broker, MQTT publisher TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET SSH: SSH (v1, v2) FOTA: Firmware update from server, automatic notification WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
Card reader	None
I/O ports	1 x 10/100 Mbit/s
SIM card	Mini
Power supply	Zakres napięcia wejściowego: 9 30 VDC, ochrona przed odwrotną polaryzacją Pobór energii: Bezczynność: < 1,5 W, maks.: < 3,5 W
Certificates	CE, UKCA, RCM, CB, EAC, UCRF, WEEE
Environment requirements	Temperatura robocza: -40°C do 75°C Wilgotność pracy: 10% do 90% bez kondensacji Stopień ochrony przed wnikaniem: IP30
Color	Black
Weight	165 (gram)
Dimensions	83 x 25 x 74.2 mm
Designation	CE+WEEE
Width	100
Height	105
Depth	30
Weight	200
Description
Description	TRB246 to przemysłowa brama 4G LTE wyposażona w interfejsy I/O, RS232, RS485 oraz Ethernet, przeznaczona do rozwiązań IoT wymagających wszechstronności i niezawodnego wsparcia komunikacji M2M. Ta brama posiada funkcję podwójnej karty SIM i obsługuje wiele protokołów, takich jak DNP3, DLMS i Modbus, co jest kluczowe dla zapewnienia płynnej transmisji danych. Osadzona w obudowie aluminiowej, ta przemysłowa brama IoT jest odporna na ekstremalne warunki środowiskowe w produkcji, rolnictwie lub budownictwie.

power over ethernet (poe)

nein

manufacturer

Teltonika

product group

Industrial Networking

product type

Gateways/Controllers

colour

black

weight

182.52 g

height of packaging (single piece)

30 mm

width of packaging (single piece)

110 mm

depth of packaging (single piece)

110 mm

package weight (single piece)

0.202 kg

gross weight

0.202

height

25 mm

width

83 mm

depth

75 mm

operating temperature min.

-40 °C

operating temperature max.

75 °C

quantity of ports

lan (mbps)

10/100

mains connection

Systemstecker, Proprietär

network standard

Fast Ethernet

other connectors

RS232/485

power supply unit (internal/external)

extern

fast ethernet ports rj-45

radio standard umts

radio standard 4g

radio standard 2g

Description

TRB246 ist ein industrielles 4G-LTE-Gateway mit I/Os, RS232-, RS485- und Ethernet-Schnittstellen für IoT-Lösungen, die Vielseitigkeit und zuverlässige M2M-Kommunikationsunterstützung erfordern. Das Gateway verfügt über Dual-SIM-Funktionalität und unterstützt verschiedene Protokolle wie DNP3, DLMS und Modbus, die für eine reibungslose Datenübertragung unerlässlich sind. Dieses industrietaugliche IoT-Gateway ist in einem Aluminiumgehäuse untergebracht und kann extremen Umgebungsbedingungen in der Fertigung, Landwirtschaft oder im Baugewerbe standhalten.

KONNEKTIVITÄT: 4G/LTE (Cat 4), 3G, 2G
DUAL SIM: Mit automatischer Ausfallsicherung, Backup-WAN und andere Switching-Szenarien
SERIELLE SCHNITTSTELLE: Ausgerüstet mit RS232/RS485 für die serielle Kommunikation
Ethernet, I/Os und serielle (RS232, RS485) Schnittstellen mit 16-poligem Klemmblock

Gross depth (mm)	74.00
Gross height (mm)	25.00
Gross weight	0.27
Gross width (mm)	83.00
Net weight	0.17
Packing quantity	1.00
Paper/Pasteboard	100.00
Tare weight (kg)	0.10
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Producer	Teltonika
Palette Qty	3774
Ethernet LAN data rates	10/100
Producer product name	TRB246
Producer product family	Industrial 4G IoT Gateway
Ethernet LAN (RJ-45) ports	1
Mesh Support	No
Mobile Broadband	4G
MU-MiMO	No
Warranty	24

Products specifications

1
Details 2
Details 3
Details 4

3G/4G support	3G
Porto Types	SIM cards
3G/4G support	4G
Properties	RJ-45
RJ-45 port	12
RJ-45 port	1

Model	TRB246
Type	GSM 3G/4G
Data transmission	LTE
LTE network	2100 MHz
LTE network	1800 MHz
LTE network	900 MHz
LTE network	800 MHz
LTE network	2600 MHz
LTE network	2500 MHz
LTE network	2300 MHz
Aero2 support	No
Standards	IPv4
Standards	IPv6
Standards	802.3u
Standards	802.3
Standards	802.3az
Number of antennas	Two connectors
Antenna	Detachable external
Security	Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Tag-based VLAN separation Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of SSH, Web interface, CLI and Telnet
Management, monitoring, configuration	RMS: Teltonika Remote Management System (RMS) JSON-RPC: Management API over HTTP/HTTPS SNMP: SNMP (v1, v2, v3), SNMP Trap MQTT: MQTT Broker, MQTT publisher TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET SSH: SSH (v1, v2) FOTA: Firmware update from server, automatic notification WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
Card reader	None
I/O ports	1 x 10/100 Mbit/s
SIM card	Mini
Power supply	Zakres napięcia wejściowego: 9 30 VDC, ochrona przed odwrotną polaryzacją Pobór energii: Bezczynność: < 1,5 W, maks.: < 3,5 W
Certificates	CE, UKCA, RCM, CB, EAC, UCRF, WEEE
Environment requirements	Temperatura robocza: -40°C do 75°C Wilgotność pracy: 10% do 90% bez kondensacji Stopień ochrony przed wnikaniem: IP30
Color	Black
Weight	165 (gram)
Dimensions	83 x 25 x 74.2 mm
Designation	CE+WEEE
Width	100
Height	105
Depth	30
Weight	200
Description
Description	TRB246 to przemysłowa brama 4G LTE wyposażona w interfejsy I/O, RS232, RS485 oraz Ethernet, przeznaczona do rozwiązań IoT wymagających wszechstronności i niezawodnego wsparcia komunikacji M2M. Ta brama posiada funkcję podwójnej karty SIM i obsługuje wiele protokołów, takich jak DNP3, DLMS i Modbus, co jest kluczowe dla zapewnienia płynnej transmisji danych. Osadzona w obudowie aluminiowej, ta przemysłowa brama IoT jest odporna na ekstremalne warunki środowiskowe w produkcji, rolnictwie lub budownictwie.

power over ethernet (poe)

nein

manufacturer

Teltonika

product group

Industrial Networking

product type

Gateways/Controllers

colour

black

weight

182.52 g

height of packaging (single piece)

30 mm

width of packaging (single piece)

110 mm

depth of packaging (single piece)

110 mm

package weight (single piece)

0.202 kg

gross weight

0.202

height

25 mm

width

83 mm

depth

75 mm

operating temperature min.

-40 °C

operating temperature max.

75 °C

quantity of ports

lan (mbps)

10/100

mains connection

Systemstecker, Proprietär

network standard

Fast Ethernet

other connectors

RS232/485

power supply unit (internal/external)

extern

fast ethernet ports rj-45

radio standard umts

radio standard 4g

radio standard 2g

Description

TRB246 ist ein industrielles 4G-LTE-Gateway mit I/Os, RS232-, RS485- und Ethernet-Schnittstellen für IoT-Lösungen, die Vielseitigkeit und zuverlässige M2M-Kommunikationsunterstützung erfordern. Das Gateway verfügt über Dual-SIM-Funktionalität und unterstützt verschiedene Protokolle wie DNP3, DLMS und Modbus, die für eine reibungslose Datenübertragung unerlässlich sind. Dieses industrietaugliche IoT-Gateway ist in einem Aluminiumgehäuse untergebracht und kann extremen Umgebungsbedingungen in der Fertigung, Landwirtschaft oder im Baugewerbe standhalten.

KONNEKTIVITÄT: 4G/LTE (Cat 4), 3G, 2G
DUAL SIM: Mit automatischer Ausfallsicherung, Backup-WAN und andere Switching-Szenarien
SERIELLE SCHNITTSTELLE: Ausgerüstet mit RS232/RS485 für die serielle Kommunikation
Ethernet, I/Os und serielle (RS232, RS485) Schnittstellen mit 16-poligem Klemmblock

Gross depth (mm)	74.00
Gross height (mm)	25.00
Gross weight	0.27
Gross width (mm)	83.00
Net weight	0.17
Packing quantity	1.00
Paper/Pasteboard	100.00
Tare weight (kg)	0.10
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Producer	Teltonika
Palette Qty	3774
Ethernet LAN data rates	10/100
Producer product name	TRB246
Producer product family	Industrial 4G IoT Gateway
Ethernet LAN (RJ-45) ports	1
Mesh Support	No
Mobile Broadband	4G
MU-MiMO	No
Warranty	24
