Main features | |

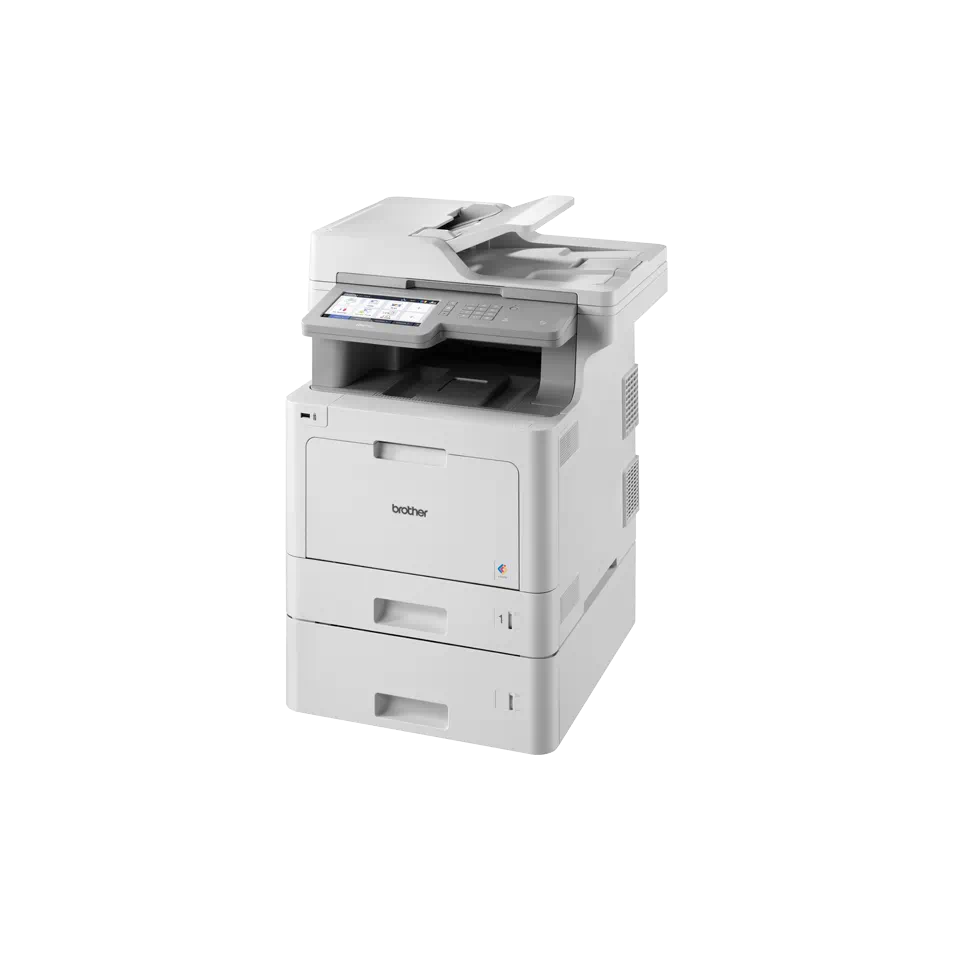

Product Description | Brother MFC-L9570CDWT - multifunction printer - colour |
Device Type | Multifunction printer |
Fax Type | Super G3 - plain paper |
Bundled Services | Brother PRINT AirBag for 400000 pages |
Printing Technology | Laser (colour) |
Display Colour Support | Colour |
Display Features | Touch screen |
Monthly Duty Cycle (max) | 80000 pages |
Recommended Monthly Volume | 6000 pages |
Max Copying Resolution | Up to 1200 x 600 dpi (mono) / up to 1200 x 600 dpi (colour) |
Max Printing Speed | Up to 31 ppm (mono) / up to 31 ppm (colour) |
Max Printing Resolution | Up to 2400 x 600 dpi (mono) / up to 2400 x 600 dpi (colour) |
Max Fax Transmission Speed | 33.6 Kbps |
Scanning | 1200 x 2400 dpi |
Original Type | Sheets |
Document Feeder Capacity | 80 sheets |
Media Size | 76.2 x 127 mm (min) - Legal (216 x 356 mm), A4 (210 x 297 mm) (max) |
Media Type | Plain paper, labels, recycled paper, thin paper, thick paper, glossy paper |
Standard Media Capacity | 800 sheets |
Max Media Capacity | 2380 sheets |
Bypass Feeder Capacity | 50 sheets |
Output Trays Capacity | 150 sheets |
Automatic Duplexing | Yes (copying) Yes (printing) Yes (scanning) |
Connection Availability | Yes |
Interface | USB 2.0, Gigabit LAN, Wi-Fi(n), USB host, NFC |
AirPrint Enabled | Yes |
Office Machine Features | Print from USB flash drive, scan to e-mail, scan to FTP, scan to SMB, scan to SharePoint, scan to USB host, scan to e-mail server |
Dimensions (WxDxH) | 49.5 cm x 52.6 cm x 68.2 cm |
Weight | 42.6 kg |
Environmental Standards | ENERGY STAR Qualified, Blue Angel |
Extended details | |
Memory | |
Standard Memory | 1 GB |
Copying | |
Max Copying Resolution | Up to 1200 x 600 dpi (mono) / up to 1200 x 600 dpi (colour) |
Max Document Enlargement | 400% |
Max Document Reduction | 25% |
Maximum Copies | 99 |
Automatic Duplexing | Yes |
Printing | |
Max Printing Resolution | Up to 2400 x 600 dpi (mono) / up to 2400 x 600 dpi (colour) |
Max Printing Speed | Up to 31 ppm (mono) / up to 31 ppm (colour) |
Printer Drivers / Emulations | PCL 6, PostScript 3, PDF 1.7, XPS |
Automatic Duplexing | Yes |
First Print Out Time B/W | 15 sec |
First Print Out Time Colour | 15 sec |
Scanning | |
Scan Element | CIS |
Automatic Duplexing | Yes |
Optical Resolution | 1200 x 2400 dpi |
Interpolated Resolution | 19200 x 19200 dpi |
Grayscale Depth | 8-bit |
Colour Depth | 24-bit |
Scanning Resolution Details | 1200 x 2400 dpi - flatbed ¦ 1200 x 600 dpi - ADF |
Fax Machine | |
Compatibility | Super G3 |
Max Transmission Speed | 33.6 Kbps |
Reception Memory Capacity | Up to 500 pages |
Transmission Memory Capacity | Up to 500 pages |
Fax Machine Features | |
Error Correction Mode (ECM) | Yes |
Speed Dialing | 300 station(s) |
Broadcast Transmission | 350 stations |
Features | Fax forwarding, Dual Access |
Document & Media Handling | |
Original Type | Sheets |
Document Feeder Capacity | 80 sheets |
Min Media Size | 76.2 x 127 mm |
Max Media Size | A4/Legal |
Min Media Weight | 60 g/m² |
Max Media Weight | 163 g/m² |
Supported Media Type | Plain paper, labels, recycled paper, thin paper, thick paper, glossy paper |
Supported Media Sizes | ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), Folio (216 x 330 mm) |
Standard Media Capacity | 800 sheets |
Max Media Capacity | 2380 sheets |
Bypass Feeder Capacity | 50 sheets |
Output Trays Capacity | 150 sheets |
Document & Media Handling Details | Input tray - 250 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 105 g/m² ¦ ADF - 80 sheets ¦ Bypass tray - 50 sheets size: 76.2 x 127 mm - Legal (216 x 356 mm) weight: 60 g/m² - 163 g/m² ¦ Input tray - 500 sheets - Legal (216 x 356 mm) ¦ Output tray - 150 sheets |
Speed Details | Printing: up to 31 ppm - B/W ¦ Printing: up to 31 ppm - colour ¦ Printing: up to 14 spm - B/W duplex ¦ Printing: up to 14 spm - colour duplex ¦ Scanning: up to 50 ppm - B/W ¦ Scanning: up to 50 ppm - colour ¦ Scanning: up to 100 ppm - B/W duplex ¦ Scanning: up to 100 ppm - colour duplex |
Connections | |
Interfaces | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x Gigabit LAN - RJ-45 ¦ 2 x USB host - 4 pin USB Type A |
Security Protocols & Features | Kerberos, LDAP, SSL, WEP, WPA-PSK, TLS, IPsec, 802.1x, WPA2-PSK, TKIP, AES, ARP, TTLS |
Power | |
Power Consumption Operational | 580 Watt |
Power Consumption Standby | 70 Watt |
Power Consumption Sleep | 10 Watt |
Miscellaneous | |
Warm-Up Time | 31 sec |
First Copy Out Time B/W | 16 sec |
First Copy Out Time Colour | 17 sec |
Included Accessories | Phone cable |
Consumables Included | 1 x Cartridge (black) - up to 6500 pages ISO/IEC 19798 ¦ 1 x Cartridge (cyan) - up to 6500 pages ISO/IEC 19798 ¦ 1 x Cartridge (magenta) - up to 6500 pages ISO/IEC 19798 ¦ 1 x Cartridge (yellow) - up to 6500 pages ISO/IEC 19798 ¦ 1 x drum - up to 50000 pages - Brother DR421CL ¦ 1 x transfer unit - up to 130000 pages - Brother BU330CL ¦ 1 x waste toner collector - up to 50000 pages - Brother WT320CL |
Environmental Standards | |
ENERGY STAR Certified | Yes |
Blue Angel Compliant | Yes |
Dimensions & Weight | |
Width | 49.5 cm |
Depth | 52.6 cm |
