    Manufacturer: ARCTIC

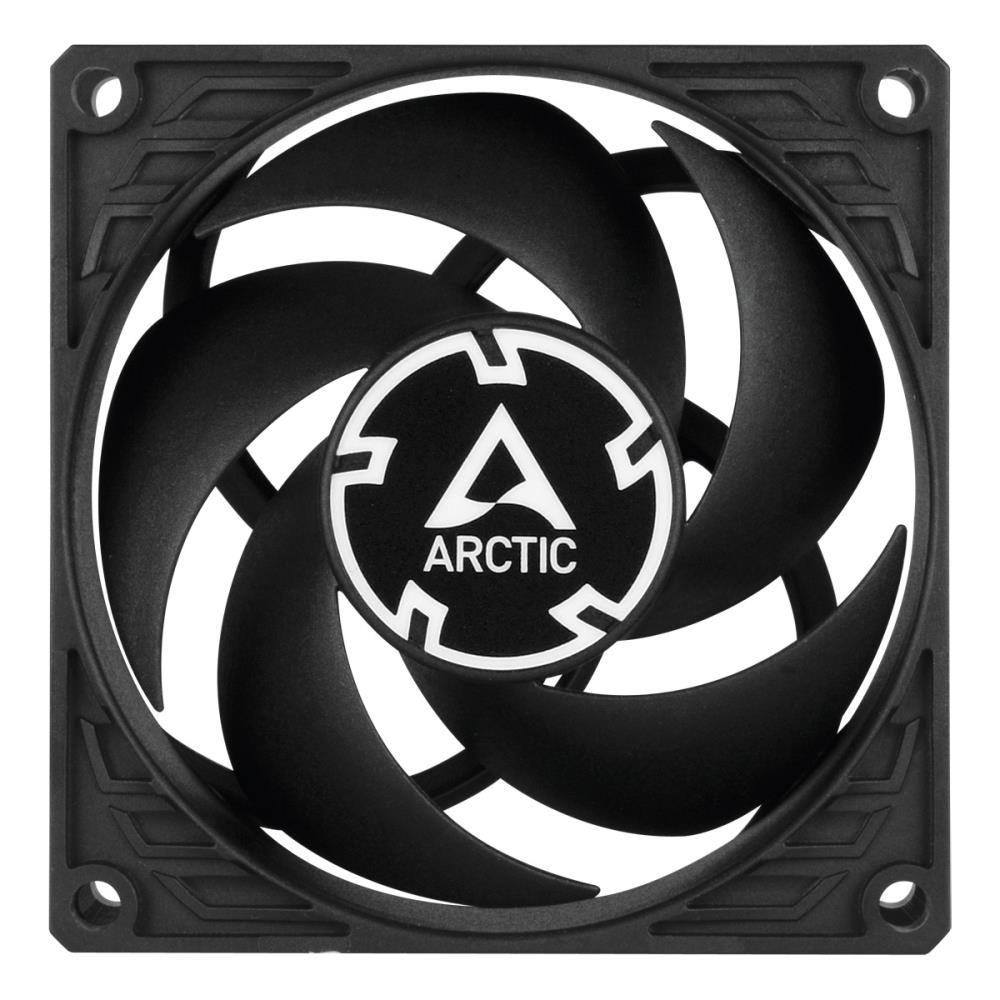

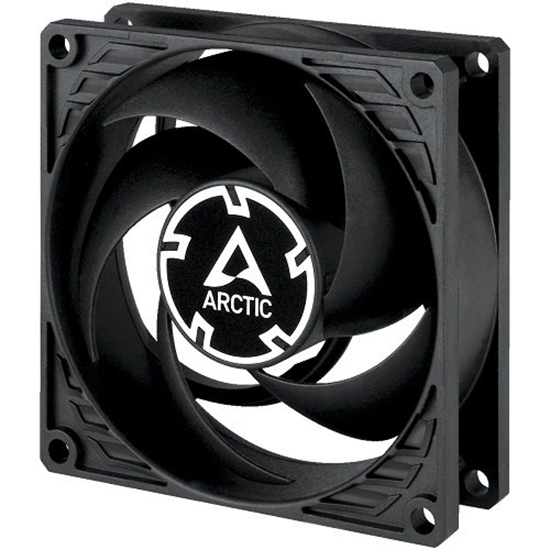

    Ventilators Arctic Arctic P8 Max Black


    €7.43 incl tax

    SKU: ST08087423
    Manufacturer part number: ACFAN00286A
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    LT
    LV
    PL
    LV

    Products specifications
    Producer Case cooler 80 mm.
    Producer Water cooling
    Description
    P8 Max | Number of fans 1 | Nominal voltage 12 V | Air flow 40 cfm | Colour Black | Dimensions 80x80x25mm
    Description
    Ligdza (socket): 4-pin, Diametrs: 80 mm, Ventilators ātrums (apgr.min.): 5000 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
    Weight0.15
    Gross weight0.2
    Description

    The ARCTIC P8 Max fan (model ACFAN00286A) is designed for use in computer cases, providing effective cooling for system components.

    Technical Specifications:

    • Dimensions: 80 x 80 x 25 mm
    • Rotation Speed: 500–5000 RPM
    • Airflow: 40 CFM (approximately 68 m³/h)
    • Static Pressure: 5.3 mm H₂O
    • Noise Level: 25.3 dBa
    • Bearing Type: Dual Ball Bearing
    • Speed Control: PWM (Pulse Width Modulation)
    • Cable Length: 40 cm
    • Operating Voltage: 12 V DC
    • Connector Type: 4-pin
    • Mean Time Between Failures (MTBF): 500,000 hours

    ARCTIC P8 Max ventilators (modelis ACFAN00286A) ir paredzēts lietošanai datoru korpusos un nodrošina efektīvu sistēmas komponentu dzesēšanu.

    Tehniskās specifikācijas:

    • Izmēri: 80 x 80 x 25 mm
    • Griešanās ātrums: 500–5000 apgr./min
    • Gaisa plūsma: 40 CFM (aptuveni 68 m³/h)
    • Statiskā spiediena: 5.3 mm ūdens kolonna
    • Troksnis līmenis: 25.3 dBa
    • Gultņa tips: Divkāršais lodīšu gultnis
    • Ātruma kontrole: PWM (platuma impulsu modulācija)
    • Kabeļa garums: 40 cm
    • Barošanas spriegums: 12 V DC
    • Savienojuma tips: 4-pin
    • Vidējais laiks līdz atteicei (MTBF): 500 000 stundas

    Вентилятор ARCTIC P8 Max (модель ACFAN00286A) предназначен для использования в корпусах компьютеров и обеспечивает эффективное охлаждение компонентов системы.

    Технические характеристики:

    • Размеры: 80 x 80 x 25 мм
    • Скорость вращения: 500–5000 об/мин
    • Воздушный поток: 40 CFM (около 68 м³/ч)
    • Статическое давление: 5.3 мм водяного столба
    • Уровень шума: 25.3 дБа
    • Тип подшипника: Двойной шарикоподшипник
    • Управление скоростью: PWM (широтно-импульсная модуляция)
    • Длина кабеля: 40 см
    • Напряжение питания: 12 В DC
    • Тип подключения: 4-pin
    • Среднее время наработки на отказ (MTBF): 500 000 часов
    Description
    High-speed PWM Fan P8 MAX, -pin, 80mm, lack.rFeatures:uPowerful cooling.u The P8 Ma is a powerful fan with 500 to 5000 rpm.The fan delivers a static pressure of 5.3 mmH2O and generates an airflow of up to 0 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is etremely efficient at 0.19 A. The P8 Ma is ideal for 2U server racks, which often require a high airflow to effectively dissipate heat. In addition, it has a 0 dB mode for silent operation in IDLE.uEtremely wide speed range.u The P8 Ma enales precise fan speed (500 to 5000 rpm) via pulse width modulation control, which can e adapted to the individual cooling requirements. The P8 Ma enales silent operation when only a low airflow is required and provides a high performance level if needed.uVirtually silent due fluid dynamic earing.uAs a special feature, the P8 Ma is equipped with ARCTIC's proven Hydrodynamic Bearing. This enales the virtually silent operation at low speeds that customers have een asking for. At maimum speed, rute performance is still guaranteed. Although theese earings tend to wear out, ARCTIC does not compromise on duraility and still offers the 6-year warranty.uOptimised for static pressure.u The P8 Ma delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P8 Ma is also specially suitale for use on heat sinks, radiators, pinholes and filters.uLow power consumption.u The P8 Ma is distinguished y its etremely high efficiency. At a speed of 3000 rpm and a voltage of 12 volts, it requires only 0.669 watts, which corresponds to a current of 0.06 amps.u0 dB Mode - Zero rpm.u The speed of the fan can e throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maimum performance when required. This enales the P8 Ma to e etremely fleile in adjusting the speed to optimally regulate the airflow for every case.rSpecifications:Fan speed: 500-5000 RPM (0 rpm elow 5 % PWM).Air flow: 0.00 CFM 67.96 m³h.Static pressure: 5.3 (mm H2O).Fan earing: Fluid dynamic earing.Current voltage: 0.19A 12V DC.Connection: -pin connector.Cale length: 00 mm.Size: 808025 mm.Weight: 8 g.rWarranty: 6 years.
    Description
    Ligdza (socket): 4-pin, Diametrs: 80 mm, Ventilators ātrums (apgr.min.): 5000 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi

    Products specifications
    Producer Case cooler 80 mm.
    Producer Water cooling
    Description
    P8 Max | Number of fans 1 | Nominal voltage 12 V | Air flow 40 cfm | Colour Black | Dimensions 80x80x25mm
    Description
    Ligdza (socket): 4-pin, Diametrs: 80 mm, Ventilators ātrums (apgr.min.): 5000 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
    Weight0.15
    Gross weight0.2
    Description

    The ARCTIC P8 Max fan (model ACFAN00286A) is designed for use in computer cases, providing effective cooling for system components.

    Technical Specifications:

    • Dimensions: 80 x 80 x 25 mm
    • Rotation Speed: 500–5000 RPM
    • Airflow: 40 CFM (approximately 68 m³/h)
    • Static Pressure: 5.3 mm H₂O
    • Noise Level: 25.3 dBa
    • Bearing Type: Dual Ball Bearing
    • Speed Control: PWM (Pulse Width Modulation)
    • Cable Length: 40 cm
    • Operating Voltage: 12 V DC
    • Connector Type: 4-pin
    • Mean Time Between Failures (MTBF): 500,000 hours

    ARCTIC P8 Max ventilators (modelis ACFAN00286A) ir paredzēts lietošanai datoru korpusos un nodrošina efektīvu sistēmas komponentu dzesēšanu.

    Tehniskās specifikācijas:

    • Izmēri: 80 x 80 x 25 mm
    • Griešanās ātrums: 500–5000 apgr./min
    • Gaisa plūsma: 40 CFM (aptuveni 68 m³/h)
    • Statiskā spiediena: 5.3 mm ūdens kolonna
    • Troksnis līmenis: 25.3 dBa
    • Gultņa tips: Divkāršais lodīšu gultnis
    • Ātruma kontrole: PWM (platuma impulsu modulācija)
    • Kabeļa garums: 40 cm
    • Barošanas spriegums: 12 V DC
    • Savienojuma tips: 4-pin
    • Vidējais laiks līdz atteicei (MTBF): 500 000 stundas

    Вентилятор ARCTIC P8 Max (модель ACFAN00286A) предназначен для использования в корпусах компьютеров и обеспечивает эффективное охлаждение компонентов системы.

    Технические характеристики:

    • Размеры: 80 x 80 x 25 мм
    • Скорость вращения: 500–5000 об/мин
    • Воздушный поток: 40 CFM (около 68 м³/ч)
    • Статическое давление: 5.3 мм водяного столба
    • Уровень шума: 25.3 дБа
    • Тип подшипника: Двойной шарикоподшипник
    • Управление скоростью: PWM (широтно-импульсная модуляция)
    • Длина кабеля: 40 см
    • Напряжение питания: 12 В DC
    • Тип подключения: 4-pin
    • Среднее время наработки на отказ (MTBF): 500 000 часов
    Description
    High-speed PWM Fan P8 MAX, -pin, 80mm, lack.rFeatures:uPowerful cooling.u The P8 Ma is a powerful fan with 500 to 5000 rpm.The fan delivers a static pressure of 5.3 mmH2O and generates an airflow of up to 0 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is etremely efficient at 0.19 A. The P8 Ma is ideal for 2U server racks, which often require a high airflow to effectively dissipate heat. In addition, it has a 0 dB mode for silent operation in IDLE.uEtremely wide speed range.u The P8 Ma enales precise fan speed (500 to 5000 rpm) via pulse width modulation control, which can e adapted to the individual cooling requirements. The P8 Ma enales silent operation when only a low airflow is required and provides a high performance level if needed.uVirtually silent due fluid dynamic earing.uAs a special feature, the P8 Ma is equipped with ARCTIC's proven Hydrodynamic Bearing. This enales the virtually silent operation at low speeds that customers have een asking for. At maimum speed, rute performance is still guaranteed. Although theese earings tend to wear out, ARCTIC does not compromise on duraility and still offers the 6-year warranty.uOptimised for static pressure.u The P8 Ma delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P8 Ma is also specially suitale for use on heat sinks, radiators, pinholes and filters.uLow power consumption.u The P8 Ma is distinguished y its etremely high efficiency. At a speed of 3000 rpm and a voltage of 12 volts, it requires only 0.669 watts, which corresponds to a current of 0.06 amps.u0 dB Mode - Zero rpm.u The speed of the fan can e throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maimum performance when required. This enales the P8 Ma to e etremely fleile in adjusting the speed to optimally regulate the airflow for every case.rSpecifications:Fan speed: 500-5000 RPM (0 rpm elow 5 % PWM).Air flow: 0.00 CFM 67.96 m³h.Static pressure: 5.3 (mm H2O).Fan earing: Fluid dynamic earing.Current voltage: 0.19A 12V DC.Connection: -pin connector.Cale length: 00 mm.Size: 808025 mm.Weight: 8 g.rWarranty: 6 years.
    Description
    Ligdza (socket): 4-pin, Diametrs: 80 mm, Ventilators ātrums (apgr.min.): 5000 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
