| Total power | 750 W |
| AC input voltage | 90 -264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 - 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500,620,740,860 mm |
| Peripheral (Molex) power cable length | 500,620,740,860 mm |
| EPS power connector (8-pin) | Y |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 67 cm |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
| Certification | ErP 2014 Lot 3, TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 1500 RPM |
| Operating temperature (T-T) | 0 - 50 °C |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.17 kg |
| Package width | 194 mm |
| Package depth | 310 mm |
| Package height | 120 mm |
| Package weight | 2.57 kg |
| Number of cartons per pallet | 5 |
| Master (outer) case width | 32.5 cm |
| Master (outer) case length | 62 cm |
| Master (outer) case height | 22 cm |
| Quantity per master (outer) case | 5 pc(s) |
| Noise level (quiet mode, 50%) | 17.8 dB |
| Noise level (full-load mode, 100%) | 24.9 dB |
| Description |

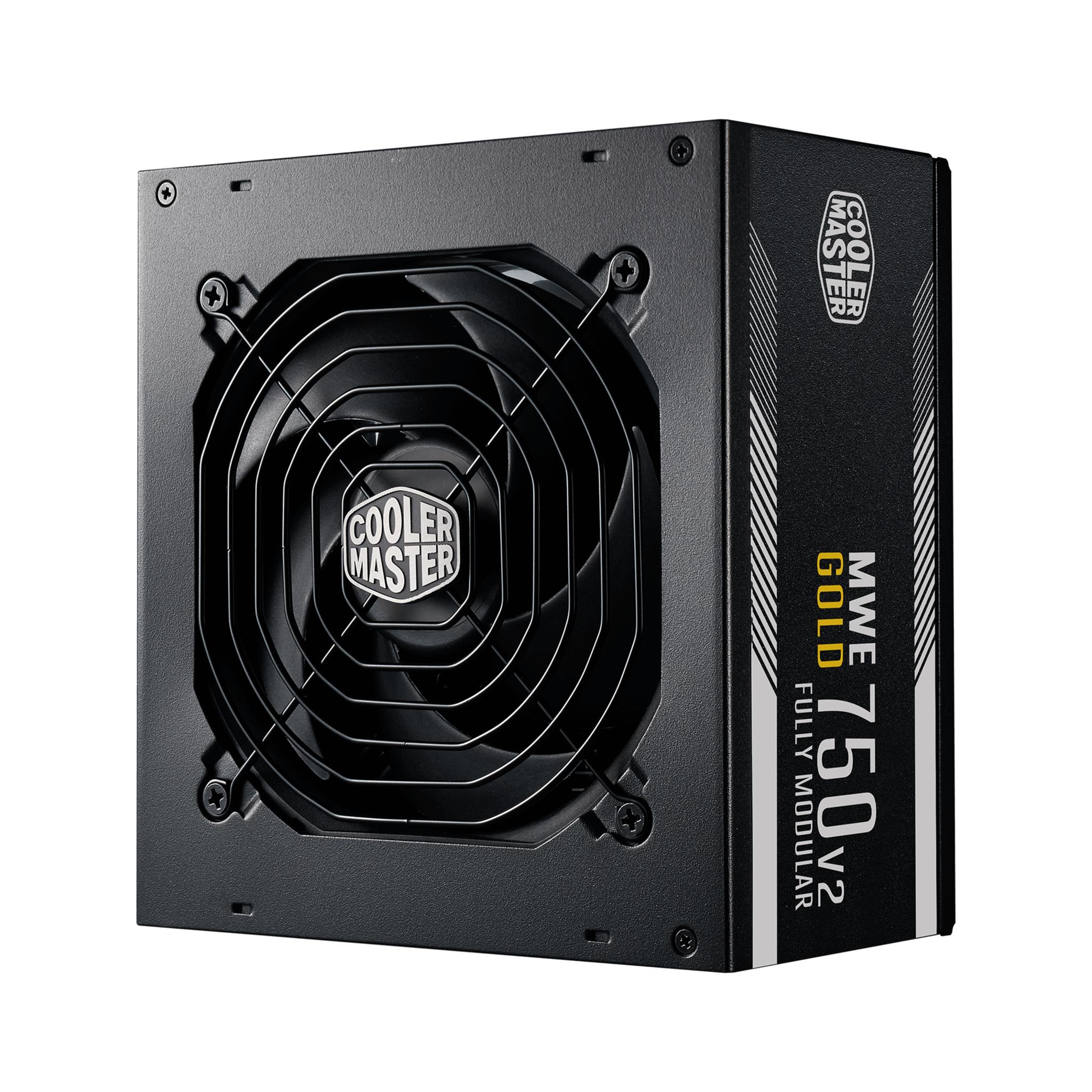

| Cooler Master MWE Gold 750 - V2. Total power: 750 W, AC input voltage: 90 -264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 500,620,740,860 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 160 mm, Height: 86 mm |
