Datalogic Barcodescanner QD2590 [QD2590-BKK1B]

Main features

Product Description

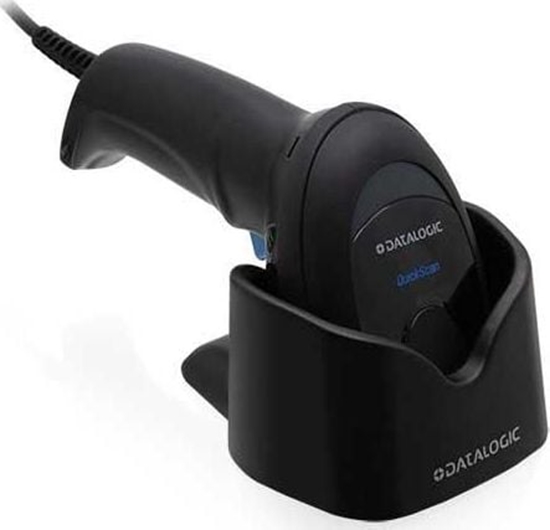

Datalogic QuickScan QD2590 - Kit - barcode scanner

Type

Barcode scanner - handheld - keyboard wedge, RS-232, USB - decoded

Colour

Black

Minimum Bar Width

3 mil

Scan Element Type

2D imager - Red LED

Sensor Resolution

1280 x 800

Scan Speed

60 frames / sec

Connectivity Technology

Wired

Power

DC 5 V

Dimensions (WxDxH)

6.8 cm x 12.6 cm x 14.8 cm

Weight

145 g

Extended details

General

Type

Barcode scanner - handheld

Colour

Black

Barcode

Interface Type

Keyboard wedge, RS-232, USB

Minimum Bar Width

3 mil

Scan Element Type

2D imager - Red LED

Sensor Resolution

1280 x 800

Light Source Wave Length

617 nm

Scan Mode

Single-pass

Frame Rate

60 frames / sec

Max Working Distance

41 cm

Skew (Degrees)

65

Pitch (Degrees)

65

Print Contrast Signal (PCS)

15%

Decode Capability

EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, UPC A Composite, UPC E Composite

TTL Decoding

Decoded

Connectivity Technology

Wired

OK Notification

Beeper, LED indicator

Features

Green Spot technology, Digimarc Barcode Technology

Expansion / Connectivity

Interfaces

1 x RS-232 ¦ 1 x keyboard wedge ¦ 1 x USB

Miscellaneous

Included Accessories

Autosense stand

Cables Included

USB cable

Compliant Standards

RoHS, IP52

Power

Voltage

DC 5 V

Electric Current Required

90 mA (standby), 450 mA (typical)

Software

Software Included

Datalogic Aladdin

Dimensions & Weight

Width

6.8 cm

Depth

12.6 cm

Height

14.8 cm

Weight

145 g
