Manufacturer: D-LINK

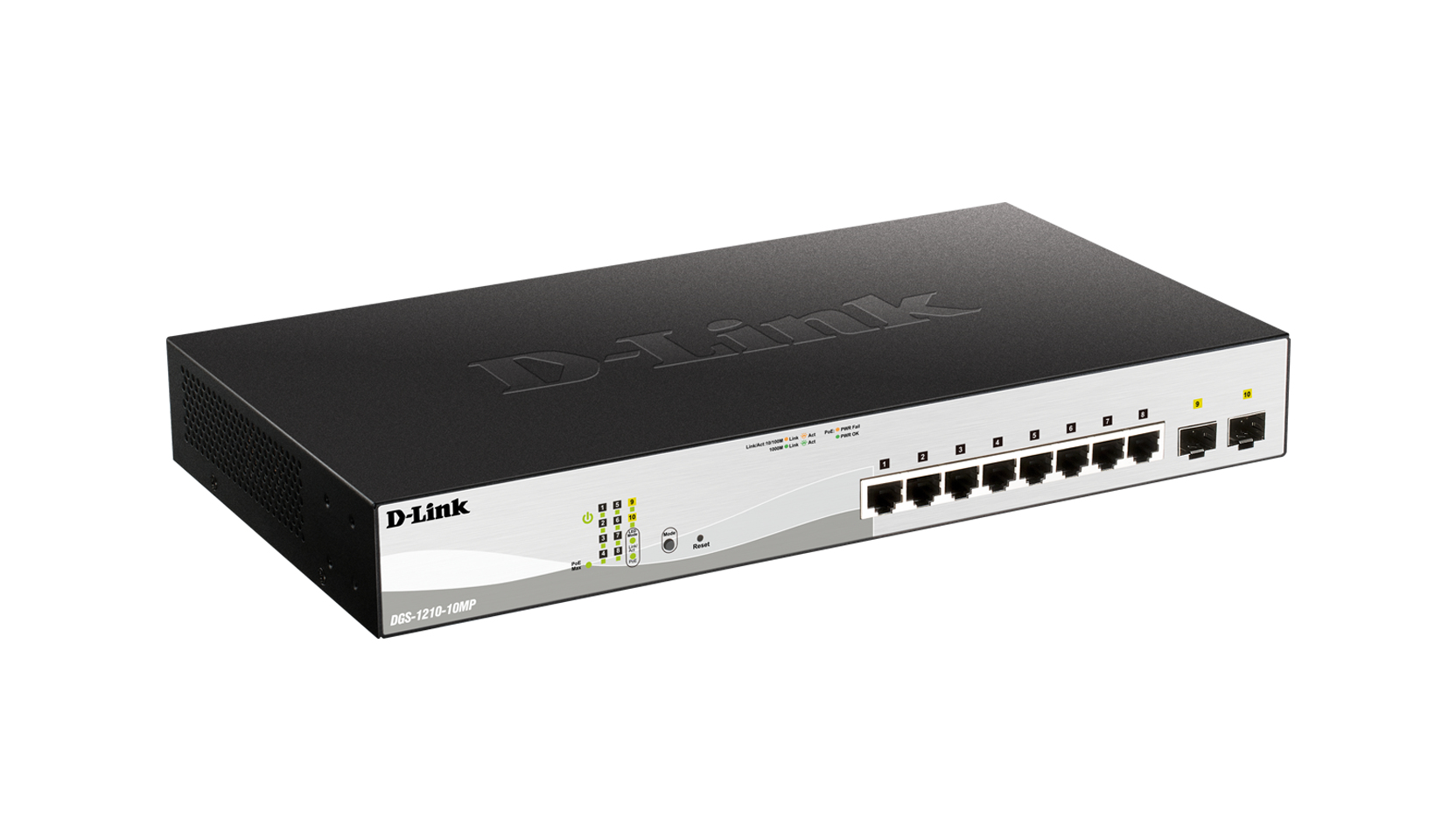

D-Link DGS-1210-10MP network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

€208.59 incl tax

SKU: ST02473307

Manufacturer part number: DGS-1210-10MP

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	2	€208.59 incl tax

Qty:

Specifications

Products specifications

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2573, RFC2575, RFC2576, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, FC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC271, RFC1757, RFC2819, RFC2021, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2674, RFC2618, RFC4022, RFC4113, RFC2389, RFC2620
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Fiber optic connector	SFP
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Number of VLANs	4094
Fiber ethernet cabling technology	100BASE-FX, 1000BASE-X
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	768
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, EAP, MD5, PEAP, SNMP, SSH-2, SSL/TLS, TTLS
Loop protection	Yes
IP-MAC-Port binding	Yes
Multicast support	Yes
Product colour	Black
LED indicators	Activity, Link, Power, Speed
Safety	CB, UL, BSMI, CCC
Certification	CE A, VCCI A, FCC A, BSMI, CCC
Memory type	DDR3-SDRAM
Internal memory	128 MB
Flash memory	32 MB
Firmware upgradeable	Yes
Maximum cable length	100 m
Mean time between failures (MTBF)	1274005 h
Shipping (inner) case height	34.9 cm
Shipping (inner) case width	29.4 cm
Shipping (inner) case length	41.6 cm
Shipping (inner) case net weight	9.31 kg
Products per shipping (inner) case	3 pc(s)
Pallet gross weight (air)	268.3 kg
Master (outer) cases per pallet (air)	24 pc(s)
Products per pallet (air)	72 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	118.2 cm
Pallet gross weight (sea)	430.6 kg
Master (outer) cases per pallet (sea)	40 pc(s)
Products per pallet (sea)	120 pc(s)
Pallet height (sea)	188 cm
Shipping (inner) case gross weight	10.1 kg
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	152.3 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	130 W
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	519.51 BTU/h
Width	330 mm
Depth	180 mm
Height	44 mm
Weight	1.77 kg
Package width	319 mm
Package depth	400 mm
Package height	91 mm
Package weight	3.1 kg
Harmonized System (HS) code	85176990
Description
Description	D-Link DGS-1210-10MP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE)

Products specifications

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2573, RFC2575, RFC2576, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, FC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC271, RFC1757, RFC2819, RFC2021, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2674, RFC2618, RFC4022, RFC4113, RFC2389, RFC2620
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Fiber optic connector	SFP
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Number of VLANs	4094
Fiber ethernet cabling technology	100BASE-FX, 1000BASE-X
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	768
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, EAP, MD5, PEAP, SNMP, SSH-2, SSL/TLS, TTLS
Loop protection	Yes
IP-MAC-Port binding	Yes
Multicast support	Yes
Product colour	Black
LED indicators	Activity, Link, Power, Speed
Safety	CB, UL, BSMI, CCC
Certification	CE A, VCCI A, FCC A, BSMI, CCC
Memory type	DDR3-SDRAM
Internal memory	128 MB
Flash memory	32 MB
Firmware upgradeable	Yes
Maximum cable length	100 m
Mean time between failures (MTBF)	1274005 h
Shipping (inner) case height	34.9 cm
Shipping (inner) case width	29.4 cm
Shipping (inner) case length	41.6 cm
Shipping (inner) case net weight	9.31 kg
Products per shipping (inner) case	3 pc(s)
Pallet gross weight (air)	268.3 kg
Master (outer) cases per pallet (air)	24 pc(s)
Products per pallet (air)	72 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	118.2 cm
Pallet gross weight (sea)	430.6 kg
Master (outer) cases per pallet (sea)	40 pc(s)
Products per pallet (sea)	120 pc(s)
Pallet height (sea)	188 cm
Shipping (inner) case gross weight	10.1 kg
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	152.3 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	130 W
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	519.51 BTU/h
Width	330 mm
Depth	180 mm
Height	44 mm
Weight	1.77 kg
Package width	319 mm
Package depth	400 mm
Package height	91 mm
Package weight	3.1 kg
Harmonized System (HS) code	85176990
Description
Description	D-Link DGS-1210-10MP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE)
