Manufacturer: D-LINK

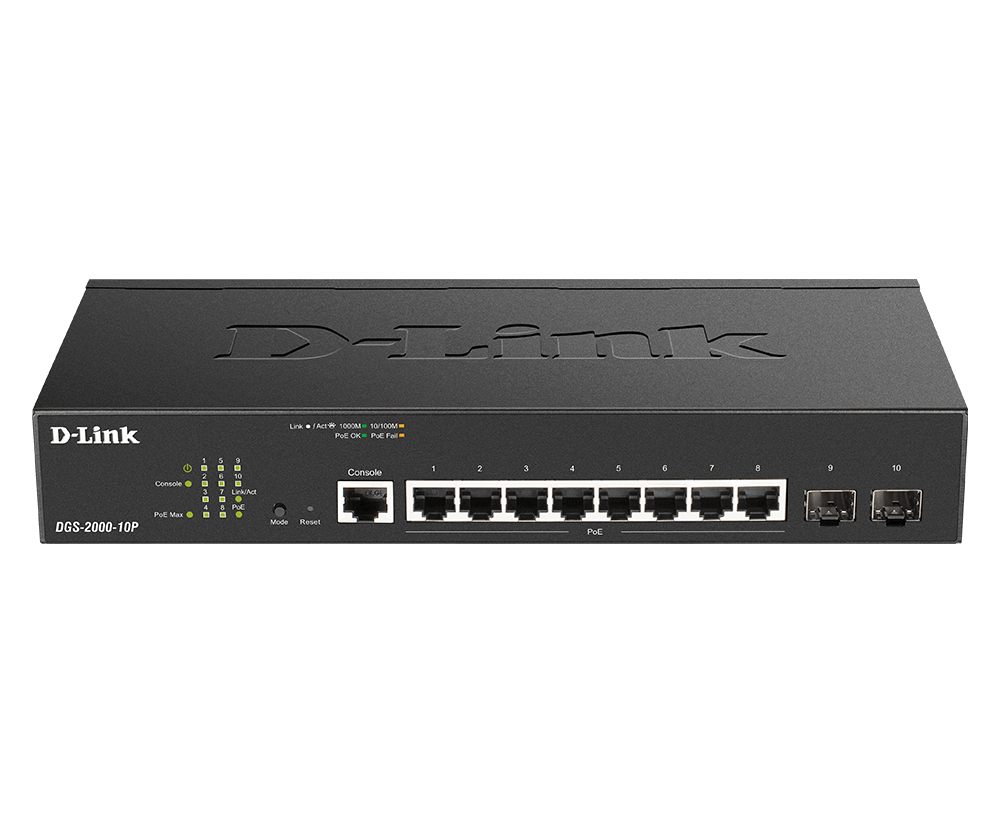

D-Link DGS-2000-10P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

€334.65 incl tax

SKU: ST04695857

Manufacturer part number: DGS-2000-10P

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	1	€334.65 incl tax

Qty:

Specifications

Products specifications

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Console port	RJ-45
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Half duplex	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Virtual LAN features	Tagged VLAN
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Store-and-forward	Yes
Packet buffer memory	4.1 MB
DHCP features	DHCP relay, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Static port security	Yes
SSH/SSL support	Yes
IP-MAC-Port binding	Yes
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, Power, Speed
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	32 MB
Mean time between failures (MTBF)	277967 h
Power supply included	Yes
DC input voltage	54 V
Power consumption (typical)	2.5 W
Power consumption (max)	81.9 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	65 W
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	279.59 BTU/h
Width	280 mm
Depth	126 mm
Height	44 mm
Weight	950 g
Harmonized System (HS) code	85176990
Description
Description	D-Link DGS-2000-10P. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 54 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Products specifications

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Console port	RJ-45
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Half duplex	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Virtual LAN features	Tagged VLAN
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Store-and-forward	Yes
Packet buffer memory	4.1 MB
DHCP features	DHCP relay, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Static port security	Yes
SSH/SSL support	Yes
IP-MAC-Port binding	Yes
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, Power, Speed
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	32 MB
Mean time between failures (MTBF)	277967 h
Power supply included	Yes
DC input voltage	54 V
Power consumption (typical)	2.5 W
Power consumption (max)	81.9 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	65 W
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	279.59 BTU/h
Width	280 mm
Depth	126 mm
Height	44 mm
Weight	950 g
Harmonized System (HS) code	85176990
Description
Description	D-Link DGS-2000-10P. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 54 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
