Manufacturer: D-LINK

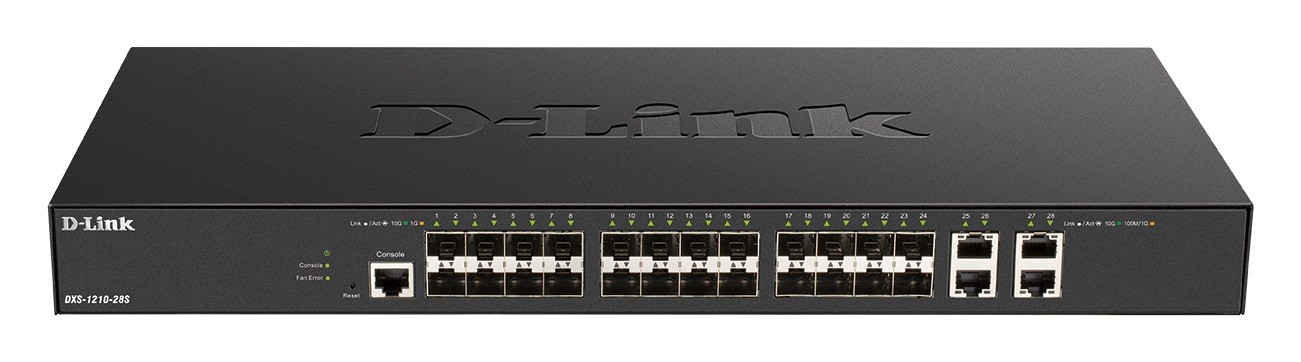

D-Link DXS-1210-28S network switch Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black

€2195.61 incl tax

SKU: ST04555933

Manufacturer part number: DXS-1210-28S

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
PL	9 - 12 days	1	€2195.61 incl tax
PL	8 - 15 days	1	€2577.74 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

WRL stadarti	802.11b
Properties	RJ-45
RJ-45 port	4

Switch class	Managed
Switch class	SMART
Application	Medium and large companies
Switch layer	L2
Switch layer	L3
Network architecture	GigabitEthernet
Number of 10Gb ports	24
Number of SFP+ ports	24
Console port	Yes
Forwarding mode	Store-and-forward
Throughput	560 (Gigabity na sek.)
Forwarding rate	416.64 (Megabity na sek.)
MAC address table size	32000
Support for Jumbo frames	Yes
Jumbo frame size	12.288 (Kilobajt)
Number of VLAN groups	4000
VLAN	802.1Q
Supported protocols and standards	IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3az Energy Efficiency Ethernet (EEE) IEEE 802.3an 10GBASE-T 10 Gigabit Ethernet IEEE 802.3ae 10GbE over fiber IEEE 802.3z 1000BASE-X Auto MDI/MDIX support for 1000/10GBASE-T
QoS	802.1p
L2 features	Obejmują port mirroring, Spanning Tree Protocol (STP) oraz Link Aggregation Control Protocol (LACP).
L3 features	IP Interfaces, ARP, IPv6 Neighbor Discovery (ND), Default Routing and Static Routing.
Chassis type	Rack
Fan	Yes
Power consumption	27.7 (Watt)
Power supply	100 - 240 VAC
Dimensions	441 x 209.5 x 44 mm
Weight	3.27 (kilogram)
Other features	4x 10G BASE-T
Width	350
Height	570
Depth	90
Weight	4600
Description
Description	Przełącznik zarządzalny Smart Ethernet D-Link DXS-1210-28S Przełączniki DXS-1210 to przystępne cenowo urządzenia przeznaczone dla wielu sieciowych zastosowań w firmach o każdej wielkości.

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	4
SFP+ module slots quantity	24
Console port	RJ-45
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Cable types supported	Cat6, Cat6a, Cat7
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4094
MAC address table	32000 entries
Switching capacity	560 Gbit/s
Throughput	416.64 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Access Control List (ACL)	Yes
Access Control List (ACL) rules	256
IGMP snooping	Yes
Management protocols	SNMP v1/v2c/v3
GARP VLAN Registration Protocol (GVRP)	Yes
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, Speed
Number of fans	2 fan(s)
Certification	CE Class A FCC Class A VCCI Class A IC BSMI
AC input voltage	100 - 240 V
Power consumption (max)	85.7 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	441 mm
Depth	209.5 mm
Height	44 mm
Weight	3.27 kg
Manual	Yes
Harmonized System (HS) code	85176990
Description
Description	D-Link DXS-1210-28S. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 560 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U

Gross depth (mm)	440.00
Gross height (mm)	45.00
Gross weight	3.40
Gross width (mm)	212.00
Net weight	3.10
Packing quantity	1.00
Paper/Pasteboard	290.00
Plastic (No PET)	10.00
Tare weight (kg)	0.30
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
Producer product name	DXS-1210-28S
Producer product family	Gigabit Ethernet Smart Managed Switch
Switch type	Managed L2
POE	No
Predominant port type	10 Gbps (RJ-45)
Form factor	Rackmountable
Producer	D-Link
Warranty	60

Products specifications

1
Details 2
Details 3
Details 4

WRL stadarti	802.11b
Properties	RJ-45
RJ-45 port	4

Switch class	Managed
Switch class	SMART
Application	Medium and large companies
Switch layer	L2
Switch layer	L3
Network architecture	GigabitEthernet
Number of 10Gb ports	24
Number of SFP+ ports	24
Console port	Yes
Forwarding mode	Store-and-forward
Throughput	560 (Gigabity na sek.)
Forwarding rate	416.64 (Megabity na sek.)
MAC address table size	32000
Support for Jumbo frames	Yes
Jumbo frame size	12.288 (Kilobajt)
Number of VLAN groups	4000
VLAN	802.1Q
Supported protocols and standards	IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3az Energy Efficiency Ethernet (EEE) IEEE 802.3an 10GBASE-T 10 Gigabit Ethernet IEEE 802.3ae 10GbE over fiber IEEE 802.3z 1000BASE-X Auto MDI/MDIX support for 1000/10GBASE-T
QoS	802.1p
L2 features	Obejmują port mirroring, Spanning Tree Protocol (STP) oraz Link Aggregation Control Protocol (LACP).
L3 features	IP Interfaces, ARP, IPv6 Neighbor Discovery (ND), Default Routing and Static Routing.
Chassis type	Rack
Fan	Yes
Power consumption	27.7 (Watt)
Power supply	100 - 240 VAC
Dimensions	441 x 209.5 x 44 mm
Weight	3.27 (kilogram)
Other features	4x 10G BASE-T
Width	350
Height	570
Depth	90
Weight	4600
Description
Description	Przełącznik zarządzalny Smart Ethernet D-Link DXS-1210-28S Przełączniki DXS-1210 to przystępne cenowo urządzenia przeznaczone dla wielu sieciowych zastosowań w firmach o każdej wielkości.

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	4
SFP+ module slots quantity	24
Console port	RJ-45
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Cable types supported	Cat6, Cat6a, Cat7
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4094
MAC address table	32000 entries
Switching capacity	560 Gbit/s
Throughput	416.64 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Access Control List (ACL)	Yes
Access Control List (ACL) rules	256
IGMP snooping	Yes
Management protocols	SNMP v1/v2c/v3
GARP VLAN Registration Protocol (GVRP)	Yes
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, Speed
Number of fans	2 fan(s)
Certification	CE Class A FCC Class A VCCI Class A IC BSMI
AC input voltage	100 - 240 V
Power consumption (max)	85.7 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	441 mm
Depth	209.5 mm
Height	44 mm
Weight	3.27 kg
Manual	Yes
Harmonized System (HS) code	85176990
Description
Description	D-Link DXS-1210-28S. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 560 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U

Gross depth (mm)	440.00
Gross height (mm)	45.00
Gross weight	3.40
Gross width (mm)	212.00
Net weight	3.10
Packing quantity	1.00
Paper/Pasteboard	290.00
Plastic (No PET)	10.00
Tare weight (kg)	0.30
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
Producer product name	DXS-1210-28S
Producer product family	Gigabit Ethernet Smart Managed Switch
Switch type	Managed L2
POE	No
Predominant port type	10 Gbps (RJ-45)
Form factor	Rackmountable
Producer	D-Link
Warranty	60
