Manufacturer: NONAME

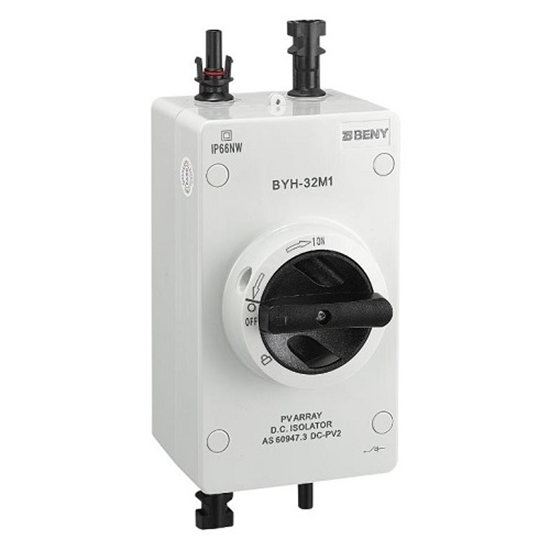

DC Isolator Switch - 2P, 32A, 1000VDC, MC4, IP66

€45.97 incl tax

SKU: ST10384447

Manufacturer part number: NV821396

Manufacturer Homepage

Stock *

	Stock	Delivery	Quantity	Price
	LT	2 - 4 days	5	€45.97 incl tax

Qty:

Specifications

Products specifications

Description

DC isolator switch for disconnecting the DC circuit and controlling the PV installation up to 1000V 32A, with handle, with valve, for safe use and maintenance.Can e widely used in residential and commercial solar PV systems.It is the first DC switch compliant with AS 6097.3:2018 DC-PV2 standards and can e used worldwide in PV DC systems.Features:2 poles, 1000V DC, 32A.No polarity.Fire retardant and UV resistant.The switch is locked in the off position.Arcing time less than 3ms, that make PV solar system effectively disconnected.A reathing valve shall e attached on the DC isolator.Pre-wired MC in factory avoid the loose wiring or failure installation.The DC isolator switch is wired with MC for faster and safer installation.Certificates: IECEN 6097-3, ASNZS 5033:201 DC-21B, DC-PV2.rTechnical data: Numer of contacts: 2.Rated voltage (Ue): DC 1000V.Insulation voltage (Ui): DC 1200V.Rated current (In): 16A 25A 32A.Maimum current: 32A.Rated impulse voltage (Uimp): 8kV.Mechanical life: 15000 cycles.Electrical life: 1000 cycles.Connection type: M (min. 1.2Nm, ma. 1.8Nm).Wire cross-sectional area: ma. -16mm2.Disconnection time: 3ms.Protection class: IP66 for housing, IP20 for switch.Dimensions: 18899108 mm.Operating temperature: -0°C to 85°C.rWarranty: 2 months.
