Manufacturer: DEEPCOOL

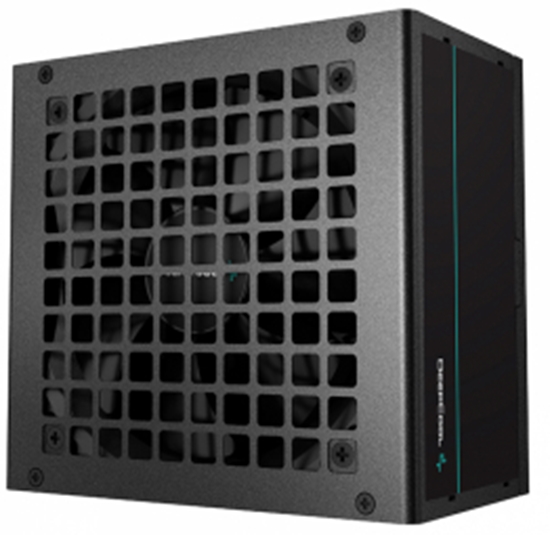

Barošanas bloks Deepcool PF600 600W

€53.36 incl tax

SKU: ST06390647

Manufacturer part number: R-PF600D-HA0B-EU

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LT	3 - 5 days	5000	€53.36 incl tax
PL	8 - 15 days	11	€54.50 incl tax
LV	2 - 5 days	12	€58.72 incl tax
LV	2 - 5 days	65	€61.46 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5

Color	Black
Form Factor	ATX
Power supply	600W - 650W

Total power	600 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Combined power (+3.3V)	100 W
Combined power (+12V)	576 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	15 A
Max output current (+12V)	48 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Hold time	16 ms
Efficiency	85%
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	55 cm
Number of SATA power connectors	4
SATA power cable length	450,600,750,900 mm
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	2
Purpose	PC/Server
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS
ATX version	2.4
Mean time between failures (MTBF)	100000 h
Product colour	Black
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
On/off switch	Yes
Operating temperature (T-T)	0 - 30 °C
Cables included	AC
Width	150 mm
Depth	140 mm
Height	86 mm
Package type	Box
Description
Description	DeepCool PF600. Total power: 600 W, AC input voltage: 220 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,600,750,900 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC

Description
	Jauda: 600W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 2, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi

Weight	5
Gross weight	5.3
Description
	Power: 600W Energy Efficiency: 80 Plus PFC: active Fan: 120mm SATA connections: 6 MOLEX PATA connections: 2 PCI-E: 4 x 6 + 2 PIN.
	Jauda: 600W Energoefektivitāte: 80 Plus PFC: Aktīvs Ventilators: 120mm SATA pieslēgumi: 6 MOLEX PATA pieslēgumi: 2 PCI-E: 4 x 6 + 2 PIN.
	Мощность: 600 Вт Энергоэффективность: 80 Плюс PFC: активный Вентилятор: 120 мм Подключения SATA: 6 MOLEX PATA подключения: 2 PCI-E: 4 x 6 + 2 контакта.

Gross depth (mm)	262
Gross height (mm)	114
Gross weight	1.845
Gross width (mm)	180
Net weight	1.476
Packing quantity	1.00
Paper/Pasteboard	69
Plastic (No PET)	300.00
Tare weight (kg)	0.369
Volume (m3)	0.00537624
Embeeded battery	No
WEEE tax	No
WEE classification	CL109:6:2017-04-01
Nominal power	600
Producer product name	PF600
Certification	80 PLUS Standard Certified
Other features	120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
Form factor	ATX12V V2.4
PCI Express power connectors (6+2 pin)	2
Number of SATA power connectors	2
ATX power connector (20+4 pin)	1
EPS power connector (8-pin)	1
Colour of product	Black
Palette Qty	321
Producer	Deepcool
Warranty	36

Products specifications

1
Details 2
Details 3
Details 4
Details 5

Color	Black
Form Factor	ATX
Power supply	600W - 650W

Total power	600 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Combined power (+3.3V)	100 W
Combined power (+12V)	576 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	15 A
Max output current (+12V)	48 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Hold time	16 ms
Efficiency	85%
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	55 cm
Number of SATA power connectors	4
SATA power cable length	450,600,750,900 mm
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	2
Purpose	PC/Server
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS
ATX version	2.4
Mean time between failures (MTBF)	100000 h
Product colour	Black
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
On/off switch	Yes
Operating temperature (T-T)	0 - 30 °C
Cables included	AC
Width	150 mm
Depth	140 mm
Height	86 mm
Package type	Box
Description
Description	DeepCool PF600. Total power: 600 W, AC input voltage: 220 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,600,750,900 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC

Description
	Jauda: 600W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 2, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi

Weight	5
Gross weight	5.3
Description
	Power: 600W Energy Efficiency: 80 Plus PFC: active Fan: 120mm SATA connections: 6 MOLEX PATA connections: 2 PCI-E: 4 x 6 + 2 PIN.
	Jauda: 600W Energoefektivitāte: 80 Plus PFC: Aktīvs Ventilators: 120mm SATA pieslēgumi: 6 MOLEX PATA pieslēgumi: 2 PCI-E: 4 x 6 + 2 PIN.
	Мощность: 600 Вт Энергоэффективность: 80 Плюс PFC: активный Вентилятор: 120 мм Подключения SATA: 6 MOLEX PATA подключения: 2 PCI-E: 4 x 6 + 2 контакта.

Gross depth (mm)	262
Gross height (mm)	114
Gross weight	1.845
Gross width (mm)	180
Net weight	1.476
Packing quantity	1.00
Paper/Pasteboard	69
Plastic (No PET)	300.00
Tare weight (kg)	0.369
Volume (m3)	0.00537624
Embeeded battery	No
WEEE tax	No
WEE classification	CL109:6:2017-04-01
Nominal power	600
Producer product name	PF600
Certification	80 PLUS Standard Certified
Other features	120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
Form factor	ATX12V V2.4
PCI Express power connectors (6+2 pin)	2
Number of SATA power connectors	2
ATX power connector (20+4 pin)	1
EPS power connector (8-pin)	1
Colour of product	Black
Palette Qty	321
Producer	Deepcool
Warranty	36
