    PrevEaton 3S 550 UPS DIN
    NextEaton 3S 700 FR 0.7 kVA 420...
    Manufacturer: EATON

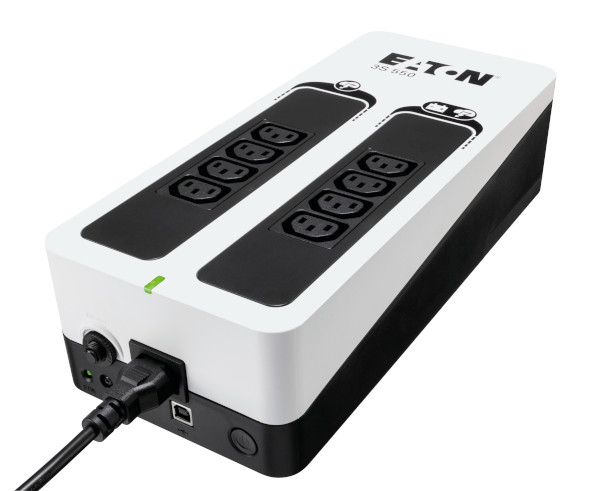

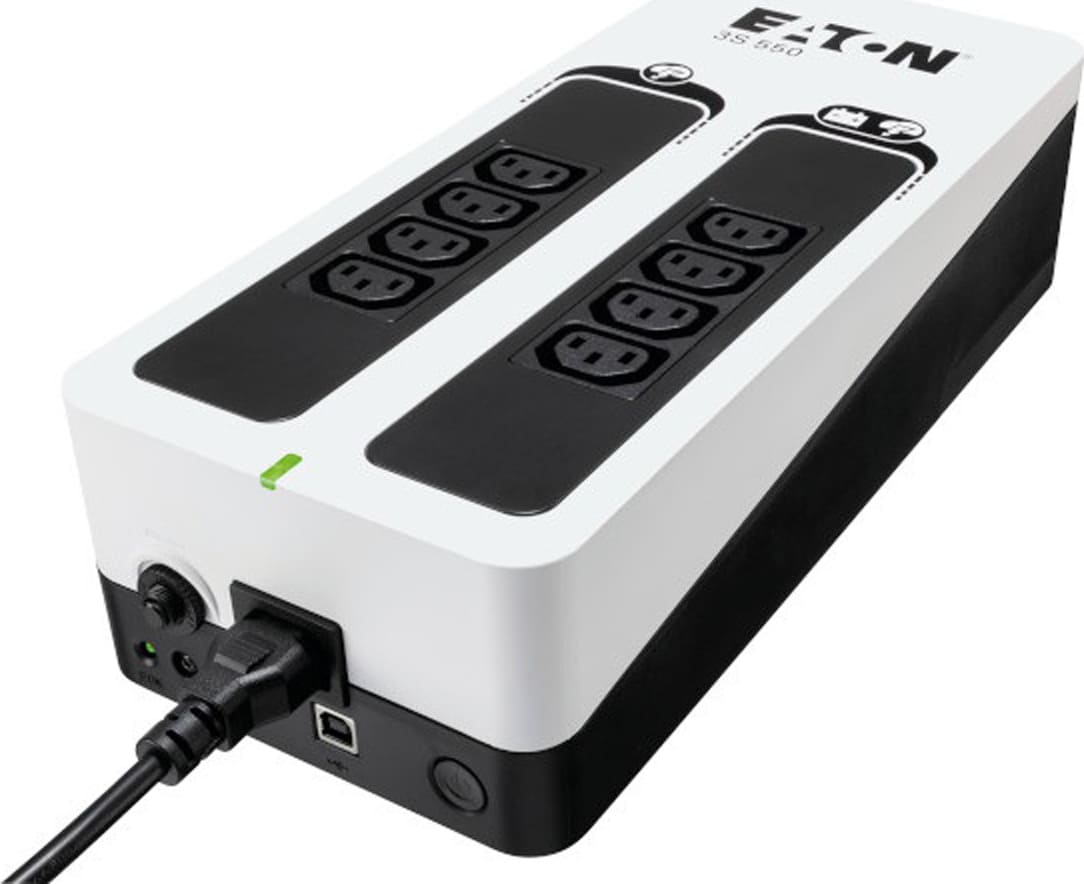

    Eaton 3S 550 UPS IEC


    €103.72 incl tax

    SKU: ST04232123
    Manufacturer part number: 3S550I
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LT
    LT
    PL

    Products specifications
    Output power 330
    UPS voltage regulators 550
    Tips Offline
    Socket (USB) yes
    Tips Standby (Offline)
    Socket (IEC320) yes
    Batteries Batteries
    Apparent power550 VA
    Active power330 (Watt)
    UPS Architectureoff-line (standby)
    Number of phases input1 (230V)
    No. of batteries1
    Voltage230 (Volt)
    Chassis typeTower
    Filters / protectionOverdischarge
    Filters / protectionSurge
    Input power portsIEC-C14
    Output power ports8 x IEC-C13
    I/O connectors1 x USB (Type B)
    ColorWhite
    ColorBlack
    Dimensions

    83.5 x 140 x 325 mm
    Weight2.9 (kilogram)
    Video
    Video
    Width245
    Height400
    Depth160
    Weight4111
    UPS topologyStandby (Offline)
    Output power capacity0.55 kVA
    Output power330 W
    Input operation voltage (min)161 V
    Input operation voltage (max)284 V
    Input frequency50/60 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency50 Hz
    Maximum current10 A
    Surge protectionYes
    Power protection featuresOverdischarge
    AC outlets quantity8 AC outlet(s)
    USB portNo
    USB 2.0 ports quantity1
    Battery technologySealed Lead Acid (VRLA)
    Hot-swap batteryNo
    Automatic battery testYes
    Cold startYes
    Product colourBlack, White
    Cable length1.5 m
    LED indicatorsYes
    SafetyIEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
    CertificationCE/EAC/Ukr/Cm/CB report
    Operating temperature (T-T)0 - 40 °C
    Operating altitude0 - 3000 m
    Width325 mm
    Depth140 mm
    Height86 mm
    Weight3.2 kg
    Harmonized System (HS) code85078000
    Nominal input voltage230 V
    Description
    Eaton 3S550I. UPS topology: Standby (Offline), Output power capacity: 0.55 kVA, Output power: 330 W. AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Product colour: Black, White, Cable length: 1.5 m, Safety: IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11. Width: 325 mm, Depth: 140 mm, Height: 86 mm
    DescriptionEATON 3S 550 IEC UPS
    VatTypeVAT
    Weight4.150000000
    Height160.000000000
    Width246.000000000
    Length400.000000000
    Description
    EATON 3S 550 IEC UPS
    ShortDescEaton 3S 550 UPS IEC
    UPS Power (VA)550 VA
    UPS Power (W)330 W
    Runtime (min)9/3
    Input Voltage (V)184-264 V (adjustable to 161-284 V)
    Output Voltage (V)184-264 V (adjustable to 161-284 V)
    Input Frequency (Hz) 46-70 Hz
    Output Frequency (Hz)50-60 Hz
    Input ConnectionsC14
    Output Connections
  • 3x C13
  • 3x C13 surge only
    		•
    Waveform Type-
    Recharge time (hours)-
    Battery TypeSealed, lead-acid
    TopologyOffline
    USBYes
    SmartSlot-
    RJ-45-
    Other ConnectionsUSB (HID compliant)
    Control Panel-
    Alarm-
    ColorBlack/White
    Form FactorTower
    Package Contents
  • 2x IEC-IEC cables
  • USB cable
  • Quickstart guide
  • Safety instructions
    		•
    Width325 mm
    Depth83.5 mm
    Height140 mm
    Net Weight2.900 kg
    Gross Weight4.000 kg

    Products specifications
    Output power 330
    UPS voltage regulators 550
    Tips Offline
    Socket (USB) yes
    Tips Standby (Offline)
    Socket (IEC320) yes
    Batteries Batteries
    Apparent power550 VA
    Active power330 (Watt)
    UPS Architectureoff-line (standby)
    Number of phases input1 (230V)
    No. of batteries1
    Voltage230 (Volt)
    Chassis typeTower
    Filters / protectionOverdischarge
    Filters / protectionSurge
    Input power portsIEC-C14
    Output power ports8 x IEC-C13
    I/O connectors1 x USB (Type B)
    ColorWhite
    ColorBlack
    Dimensions

    83.5 x 140 x 325 mm
    Weight2.9 (kilogram)
    Video
    Video
    Width245
    Height400
    Depth160
    Weight4111
    UPS topologyStandby (Offline)
    Output power capacity0.55 kVA
    Output power330 W
    Input operation voltage (min)161 V
    Input operation voltage (max)284 V
    Input frequency50/60 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency50 Hz
    Maximum current10 A
    Surge protectionYes
    Power protection featuresOverdischarge
    AC outlets quantity8 AC outlet(s)
    USB portNo
    USB 2.0 ports quantity1
    Battery technologySealed Lead Acid (VRLA)
    Hot-swap batteryNo
    Automatic battery testYes
    Cold startYes
    Product colourBlack, White
    Cable length1.5 m
    LED indicatorsYes
    SafetyIEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
    CertificationCE/EAC/Ukr/Cm/CB report
    Operating temperature (T-T)0 - 40 °C
    Operating altitude0 - 3000 m
    Width325 mm
    Depth140 mm
    Height86 mm
    Weight3.2 kg
    Harmonized System (HS) code85078000
    Nominal input voltage230 V
    Description
    Eaton 3S550I. UPS topology: Standby (Offline), Output power capacity: 0.55 kVA, Output power: 330 W. AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Product colour: Black, White, Cable length: 1.5 m, Safety: IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11. Width: 325 mm, Depth: 140 mm, Height: 86 mm
    DescriptionEATON 3S 550 IEC UPS
    VatTypeVAT
    Weight4.150000000
    Height160.000000000
    Width246.000000000
    Length400.000000000
    Description
    EATON 3S 550 IEC UPS
    ShortDescEaton 3S 550 UPS IEC
    UPS Power (VA)550 VA
    UPS Power (W)330 W
    Runtime (min)9/3
    Input Voltage (V)184-264 V (adjustable to 161-284 V)
    Output Voltage (V)184-264 V (adjustable to 161-284 V)
    Input Frequency (Hz) 46-70 Hz
    Output Frequency (Hz)50-60 Hz
    Input ConnectionsC14
    Output Connections
  • 3x C13
  • 3x C13 surge only
    		•
    Waveform Type-
    Recharge time (hours)-
    Battery TypeSealed, lead-acid
    TopologyOffline
    USBYes
    SmartSlot-
    RJ-45-
    Other ConnectionsUSB (HID compliant)
    Control Panel-
    Alarm-
    ColorBlack/White
    Form FactorTower
    Package Contents
  • 2x IEC-IEC cables
  • USB cable
  • Quickstart guide
  • Safety instructions
    		•
    Width325 mm
    Depth83.5 mm
    Height140 mm
    Net Weight2.900 kg
    Gross Weight4.000 kg
