Manufacturer: EATON

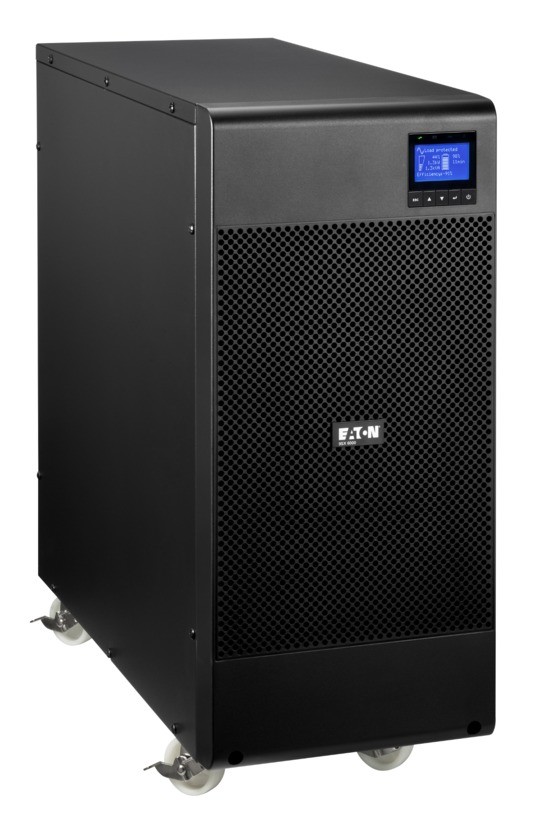

EATON 9SX 5000i

€3259.64 incl tax

SKU: ST03305227

Manufacturer part number: 9SX5KI

Manufacturer Homepage

Warranty: 24 months

Stock *

Qty:

Products specifications

Apparent power	5 kVA
Active power	4500 (Watt)
UPS Architecture	on-line double conversion
Number of phases input	1 (230V)
Chassis type	Tower
Input power ports	Terminal
Output power ports	1 x Terminal
Color	Black
Dimensions	575 x 244 x 542 mm
Weight	65.5 (kilogram)
Video
Video
Width	370
Height	690
Depth	790
Weight	81000
Description
Description	Wysokiej wydajności UPS z podwójną konwersją online.

UPS topology	Line-Interactive
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Output voltage regulation	3%
Response time	500 ms
Noise level	45 dB
Charging current	90 A
Form factor	Compact
Product colour	Black
Operating temperature (T-T)	0 - 40 °C
Width	244 mm
Depth	542 mm
Height	575 mm
Weight	65.5 kg
Description
Description	Eaton 9SX 5000I. UPS topology: Line-Interactive, Input operation voltage (min): 176 V, Input operation voltage (max): 276 V. Charging current: 90 A. Form factor: Compact, Product colour: Black. Width: 244 mm, Depth: 542 mm, Height: 575 mm

ShortDesc	Eaton 9SX 5000i
UPS Power (VA)	5000 VA
UPS Power (W)	4500 W
Runtime (min)	21/8
Input Voltage (V)	200-240V
Output Voltage (V)	200-240V
Input Frequency (Hz)	50-60 Hz autoselect
Output Frequency (Hz)	50/60 Hz autoselect, frequency converter as standard
Input Connections	-
Output Connections	-
Waveform Type	-
Recharge time (hours)	-
Battery Type	-
Topology	Line interactive
USB	Yes
SmartSlot	-
RJ-45	-
Other Connections	USB RS232 (USB and RS232 ports cannot be used simultaneously) 4x dry contacts (DB9) Mini terminal block for remote On/Off and 1 for remote power Off Slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Control Panel	Multilingual graphical LCD display
Alarm	-
Color	-
Form Factor	Tower
Package Contents	-
Width	244 mm
Depth	542 mm
Height	575 mm
Net Weight	65.500 Kg
Gross Weight	80.000 kg

Products specifications

Apparent power	5 kVA
Active power	4500 (Watt)
UPS Architecture	on-line double conversion
Number of phases input	1 (230V)
Chassis type	Tower
Input power ports	Terminal
Output power ports	1 x Terminal
Color	Black
Dimensions	575 x 244 x 542 mm
Weight	65.5 (kilogram)
Video
Video
Width	370
Height	690
Depth	790
Weight	81000
Description
Description	Wysokiej wydajności UPS z podwójną konwersją online.

UPS topology	Line-Interactive
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Output voltage regulation	3%
Response time	500 ms
Noise level	45 dB
Charging current	90 A
Form factor	Compact
Product colour	Black
Operating temperature (T-T)	0 - 40 °C
Width	244 mm
Depth	542 mm
Height	575 mm
Weight	65.5 kg
Description
Description	Eaton 9SX 5000I. UPS topology: Line-Interactive, Input operation voltage (min): 176 V, Input operation voltage (max): 276 V. Charging current: 90 A. Form factor: Compact, Product colour: Black. Width: 244 mm, Depth: 542 mm, Height: 575 mm

ShortDesc	Eaton 9SX 5000i
UPS Power (VA)	5000 VA
UPS Power (W)	4500 W
Runtime (min)	21/8
Input Voltage (V)	200-240V
Output Voltage (V)	200-240V
Input Frequency (Hz)	50-60 Hz autoselect
Output Frequency (Hz)	50/60 Hz autoselect, frequency converter as standard
Input Connections	-
Output Connections	-
Waveform Type	-
Recharge time (hours)	-
Battery Type	-
Topology	Line interactive
USB	Yes
SmartSlot	-
RJ-45	-
Other Connections	USB RS232 (USB and RS232 ports cannot be used simultaneously) 4x dry contacts (DB9) Mini terminal block for remote On/Off and 1 for remote power Off Slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Control Panel	Multilingual graphical LCD display
Alarm	-
Color	-
Form Factor	Tower
Package Contents	-
Width	244 mm
Depth	542 mm
Height	575 mm
Net Weight	65.500 Kg
Gross Weight	80.000 kg
