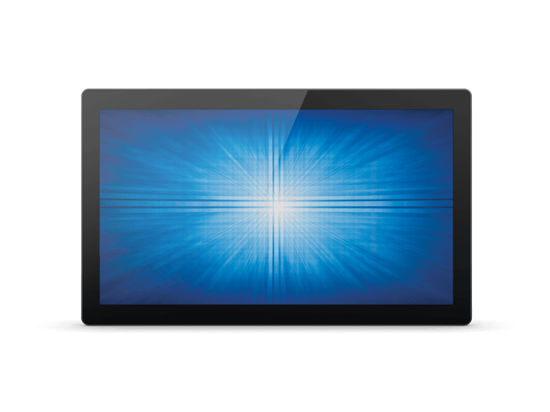

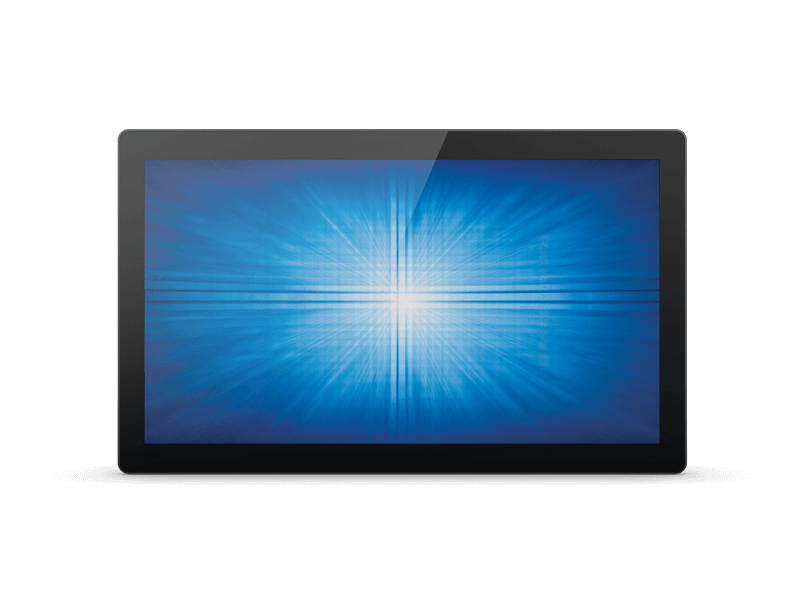

Part Number(s): - IntelliTouch (Worldwide) - E327914
- IntelliTouch Dual Touch (Worldwide) - E327528
- TouchPro PCAP (Worldwide) - E330620
Enclosure Color:
Black Touch Technology & Capacity: - SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
- SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Interface: - TouchPro PCAP, IntelliTouch DT - USB 2.0
- IntelliTouch - Dual serial/USB 2.0
Diagonal Size:
21.5'' diagonal, Active matrix TFT LCD (LED) On Screen Display: - Accessible through switches on the unit’s tethered OSD Control box.
- Controls: Menu, Up, Down, Select, Power
- Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru
- Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
- Lockouts: OSD, Power
Aspect Ratio:
16:9 Active Area (mm):
18.76" x 10.55" / 476.64mm x 268.11mm Resolution:
1920 x 1080 Other Supported Resolutions: - 640 x 480 60Hz
- 720 x 400 70Hz
- 800 x 500, 60Hz
- 800 x 600 56, 60Hz
- 1024 x 768 60Hz
- 1280 x 800 60Hz
- 1280 x 1024 60Hz
- 1366 x 768 60Hz, 60Hz RB
- 1440 x 900 60Hz, 60Hz RB
- 1680 x 1050 60Hz, 60Hz RB
- 1920 x 1080 50, 60Hz
Viewing Angle:
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total Number of Colors:
16.7 million Brightness (typical): - LCD panel: 250 nits
- IntelliTouch: 225 nits
- IntelliTouch Dual-Touch: 225 nits
- TouchPro PCAP: 225 nits
Response Time-total (typical):
14 msec Contrast Ratio:
1000:1 Input Video Format: - HDMI V1.3 Type A receptacle for HDMI input
- Analog VGA on Female DB-15 connector
- DisplayPort V1.1a - Supports later versions of Display Port video input
Input Video Frequency: - Horizontal: 30 - 82 KHz
- Vertical: 50 - 75 Hz
Video Interface:
HDMI, VGA & Display Port Power Supply:
External DC - Optional power brick (sold separately) Input power connector (Monitor):
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) Input Voltage:
12VDC +/- 5% Adapter Output Power Connector:
DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) Power Consumption (Typical):
Monitor + Adapter
ON (Default - 75% Brightness): 12.8 W, ON (Typical - 100% Brightness): 14.5 W
SLEEP: 1.5 W, OFF: 0.5W Dimensions:
Bezel: 20.12" x 11.74" x 1.65" / 511.8mm x 298.2mm x 42mm
Zero-Bezel: 20.31" x 12.24" x 1.49" / 516mm x 311mm x 37.9mm Shipping Box Dimensions:
24.41" x 16.65" x 7.48" / 620mm x 423mm x 190mm Weight (Unpackaged):
11.24 lbs / 5.1 kg Weight (Packaged):
18.08 lbs / 8.2 kg Operating Temperature:
0°C to 40°C / 32°F to 104°F Storage Temperature:
-20°C to 60°C / -4°F to 140°F Humidity:
Operating: 20% to 80%
Storage: 10% to 95% Sealability:
Touchscreen sealed to bezel
Touchscreen sealed to LCD MTBF:
50,000 hours demonstrated Warranty:
3-year Mounting Options:
VESA 4-hole 100mm mounting interface on rear of unit
2-hole mounting interface on all 4 sides
Front mount with optional bezel kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
Rack mount with optional kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details) |
