    • Exsys EX-6007PoE-WT PoE Gigabit Injector, Metal housing
    Manufacturer: EXSYS

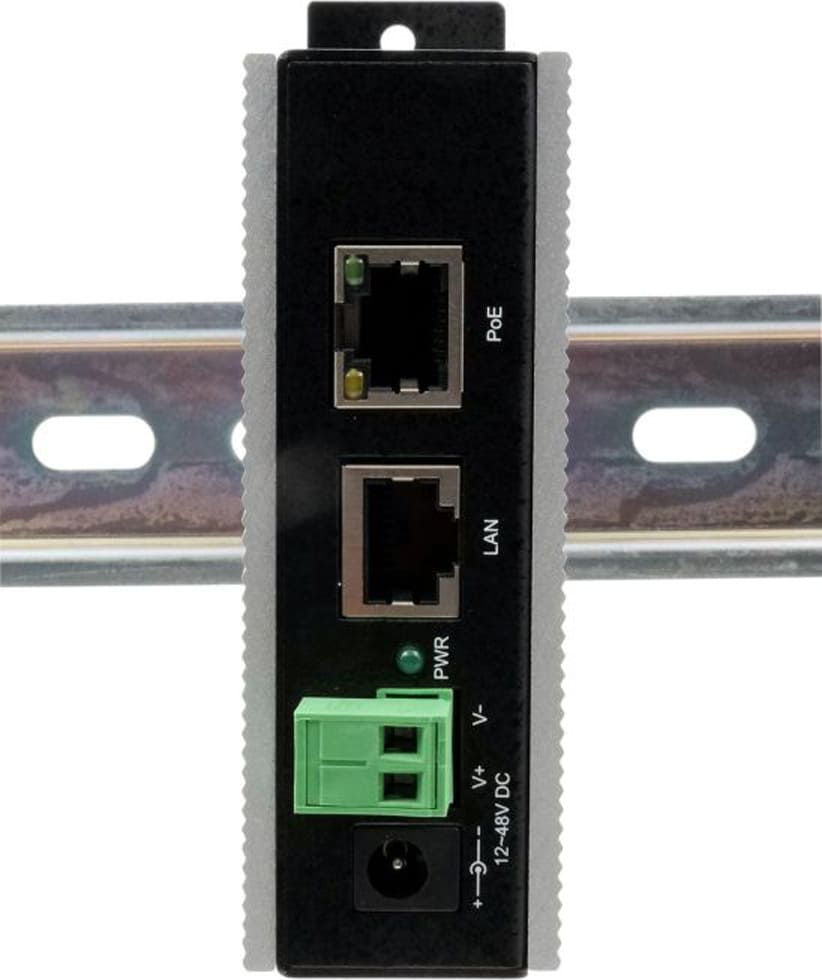

    Exsys EX-6007PoE-WT PoE Gigabit Injector, Metal housing


    €158.09 incl tax

    SKU: ST10359589
    Manufacturer part number: EX-6007POE-WT
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    power over ethernet (poe)PoE+ (IEEE 802.3at)
    manufacturerEXSYS
    product groupPoE adapter
    product typePoE-Injector
    colourvarious
    weight860
    height of packaging (single piece)80
    width of packaging (single piece)170
    depth of packaging (single piece)250
    package weight (single piece)0.682
    gross weight0.682
    scope of deliveryEX-6007PoE-WT, Power Supply 12V/3A, DIN-Rail Kit, Manual
    height26
    width114.5
    depth57.25
    operating temperature min.-40
    operating temperature max.85
    quantity of ports2
    lan (mbps)10/100/1000
    mains connectionLoose cable / screw terminals
    power supplyExternal power supply unit
    protection class (ip code)IP30
    network standardGigabit Ethernet
    gigabit ethernet ports rj-451
    quantity of poe ports1
    max. poe output power per port30
    max. poe output power (total)30
    Description

    With the EX-6007PoE-WT, end devices such as IP-telephones, IP-cameras, WLAN access points, etc. can be supplied with a voltage of 52V.

    The EX-6007PoE-WT steps up a common 12-48VDC power input to 52VDC for PoE power source. With a slim, compact housing and a temperature range of -40ºF to +185ºF, it is ideal for use in industrial environments. The EX-6007PoE-WT operates as power source equipment (PSE) = 34.20 W for the powered device (PD) = 25.50 W. It provides the user with greater installation flexibility since the end device no longer has to be in the immediate proximity of an outlet. Using IEEE 802.3af/at Power over Ethernet (PoE), the EX-6007PoE-WT eliminates the need for a nearby power outlet and provides a reliable and user-friendly networking solution. This preserves the user's investment in LAN and Internet applications.

    • Provides power to remote network devices
    • Support a extended temperature field from -40°F to +185°F
    • Support 10/100/1000 Base-T Ethernet standard
    • Fully IEEE 802.3af/at compliant PoE (PSE) type 1 = 15.40W and IEEE802.3at PoE+ (PSE) type 2 = 34.20W
    • Maximum Power Delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W
    • LED indicator for PoE power supply status
    • Built in step-up converter from 12~48 VDC to 52 VDC
    • Power Input: 12V up to 48V (DC Jack or Terminal Block)
    • Built in isolated DC to DC converter
    • Wall or DIN-Rail mounting
    • Slim, rugged metal housing for critical applications

    Products specifications
    power over ethernet (poe)PoE+ (IEEE 802.3at)
    manufacturerEXSYS
    product groupPoE adapter
    product typePoE-Injector
    colourvarious
    weight860
    height of packaging (single piece)80
    width of packaging (single piece)170
    depth of packaging (single piece)250
    package weight (single piece)0.682
    gross weight0.682
    scope of deliveryEX-6007PoE-WT, Power Supply 12V/3A, DIN-Rail Kit, Manual
    height26
    width114.5
    depth57.25
    operating temperature min.-40
    operating temperature max.85
    quantity of ports2
    lan (mbps)10/100/1000
    mains connectionLoose cable / screw terminals
    power supplyExternal power supply unit
    protection class (ip code)IP30
    network standardGigabit Ethernet
    gigabit ethernet ports rj-451
    quantity of poe ports1
    max. poe output power per port30
    max. poe output power (total)30
    Description

    With the EX-6007PoE-WT, end devices such as IP-telephones, IP-cameras, WLAN access points, etc. can be supplied with a voltage of 52V.

    The EX-6007PoE-WT steps up a common 12-48VDC power input to 52VDC for PoE power source. With a slim, compact housing and a temperature range of -40ºF to +185ºF, it is ideal for use in industrial environments. The EX-6007PoE-WT operates as power source equipment (PSE) = 34.20 W for the powered device (PD) = 25.50 W. It provides the user with greater installation flexibility since the end device no longer has to be in the immediate proximity of an outlet. Using IEEE 802.3af/at Power over Ethernet (PoE), the EX-6007PoE-WT eliminates the need for a nearby power outlet and provides a reliable and user-friendly networking solution. This preserves the user's investment in LAN and Internet applications.

    • Provides power to remote network devices
    • Support a extended temperature field from -40°F to +185°F
    • Support 10/100/1000 Base-T Ethernet standard
    • Fully IEEE 802.3af/at compliant PoE (PSE) type 1 = 15.40W and IEEE802.3at PoE+ (PSE) type 2 = 34.20W
    • Maximum Power Delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W
    • LED indicator for PoE power supply status
    • Built in step-up converter from 12~48 VDC to 52 VDC
    • Power Input: 12V up to 48V (DC Jack or Terminal Block)
    • Built in isolated DC to DC converter
    • Wall or DIN-Rail mounting
    • Slim, rugged metal housing for critical applications
