Manufacturer: FNIRSI

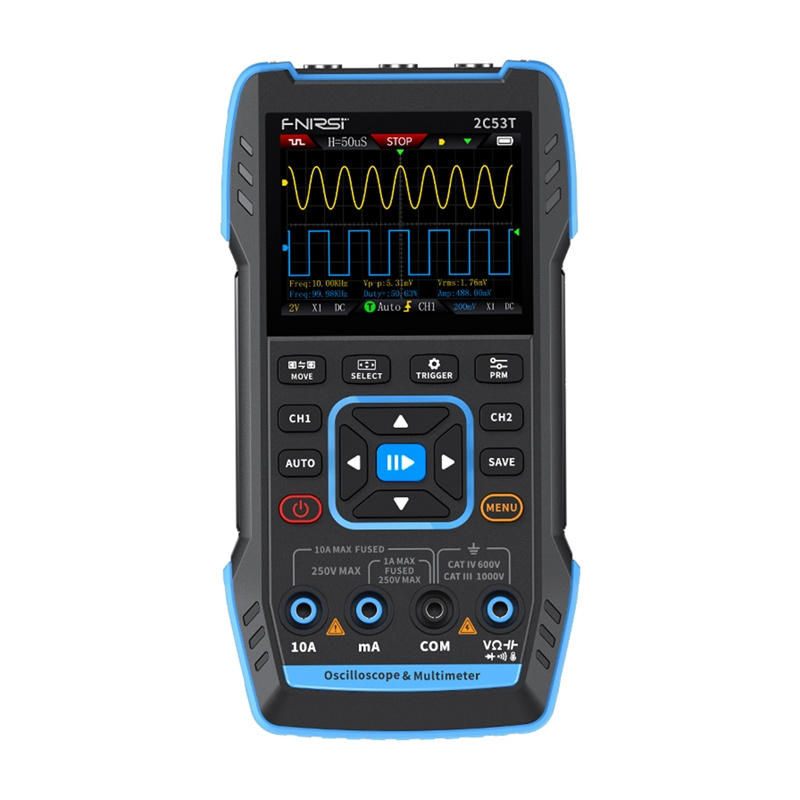

FNIRSI 2C53T portable 3in1 oscilloscope multimeter

€85.74 incl tax

SKU: ST09789470

Manufacturer part number: 2C53T

Manufacturer Homepage

Warranty: 12 months

Stock *

	Stock	Delivery	Quantity	Price
		6 - 12 days	121	€85.74 incl tax

Qty:

Specifications

Products specifications

ScreenResolutionCharging specificationsRechargeable batterySupported functionsStandby timeLanguageDimensionsWeight

Oscilloscope parameters

ChannelsSamplingAnalog bandwidthMemory depthImpedanceTime base rangeVertical sensitivityMaximum measurement voltageTrigger modeDisplay modeCouplingTrack persistenceMathematical functionsWaveform dump recordingWaveform image exportCursor measurement

Signal generator parameters

ChannelFrequencyAmplitude

Multimeter parameters

DC voltageAC voltageDC currentAC currentResistanceCapacitanceTemperatureDiode measurementContinuity test

Description
Description	FNIRSI 2C53T portable 3in1 oscilloscope multimeter signal generator The FNIRSI 2C53T combines the functions of a 2×50 MHz/250 MSa/s oscilloscope with an 8-bit ADC and 16 kpct memory buffer per channel (pre/post-trigger), a multimeter up to 19999 and a 50 kHz signal generator. Input impedance is 1 MΩ ∥ 15 pF with AC/DC/GND switching. The rugged ABS housing with silicone overlays, 2.8-inch 320×240 px screen and 3000 mAh battery (up to 4 h of operation) guarantee mobility and continuous measurements even in harsh environments. The device is CAT II 300 V certified, with dual ceramic fuses and an anti-overvoltage circuit. With the ability to save waveforms and update firmware, you are always in control of your results and have access to the latest features. Color screen and multimeter The 2.8″ display with a resolution of 320×240 px presents waveforms in full color with an "infinite afterglow" function (fixes the signal trace on the screen, even after it fades), keeping the waveform trace on the screen. Y-T, Rolling and X-Y modes (so-called Lissajous figures for analyzing phase differences between signals) make it easy to observe phase relationships, and high brightness guarantees readability in all conditions. A built-in multimeter with up to 19999 resolution allows you to measure DC/AC, low and high currents, resistance, capacitance, diodes, temperature and continuity (buzzer). Smart protections protect the user and equipment from overload. Advanced hardware architecture The professional ARM + FPGA + high-performance ADC combination, used in desktop oscilloscopes, provides fast triggering and faithful representation of signals. The triggering system offers Edge (rising/falling), Pulse Width, Video and Slope modes with pre-trigger up to 50% and post-trigger up to 50%, so even the shortest anomalies are recorded without loss of detail. Signal generator The built-in function generator offers voltages up to ±400 V and frequencies up to 50 kHz and 13 waveforms (sine, square, triangle, sawtooth, ramp, pulse, noise, etc.) with adjustable offset (signal offset relative to zero) and amplitude in 10 mV/div steps, allowing testing of filters, amplifiers and analog circuits without additional hardware. Automatic measurement setup The AUTO function adjusts the range and trigger with a single button, allowing instant waveform viewing without time-consuming setup. Support for additional Single and Normal modes streamlines work for quick field measurements. One click is all it takes to save a screenshot of the waveform to the oscilloscope's memory or directly to a computer via USB. This makes it easy to archive results and further analyze them in any environment. Isolated measurement channels Two completely independent CH1 and CH2 inputs with 50 MHz bandwidth eliminate mutual interference, improving measurement precision. The 250 MSa/s sampling rate reproduces PWM pulses and power supply ripples with maximum fidelity. Rugged construction The ABS (Acrylonitrile Butadiene Styrene - a high-strength plastic) silicone-coated housing provides drop and shock resistance, and the gold-plated PCB (Printed Circuit Board) tracks are corrosion-resistant. The 3,000 mAh battery guarantees up to 3 hours of operation. The fold-out stand allows the device to be positioned at any angle, while ergonomic buttons and a USB-C port provide convenience in handling and charging. Included: FNIRSI 2C53T portable 3-in-1 oscilloscope 10× measurement probes (2 pcs.) Probe with crocodile clamps Cables for the multimeter Charging cable Carrying bag User's manual Product parameters
2.8-inch HD color display
320 × 240
USB-C (5 V/1 A)
Lithium-ion 3000 mAh
Oscilloscope, signal generator, multimeter (see function parameters for details)
6 h (laboratory maximum)
Chinese and English
167 × 89 × 35 mm
300 g
two-channel
250 MSa/s
50 MHz (each channel independently 50 MHz)
1 kpoints
1 MΩ
10 ns - 20 s
10 mV/effect - 10 V/effect (×1)
±400 V
AUTO/Normal/Single
Y-T/Rolling/X-Y
AC/DC
OFF, 500 ms, 1 s, ∞.
8 basic operations + FFT
yes
yes
yes
single channel
1 Hz - 50 kHz
0,1 - 3,0 V
1.9999 V / 19.999 V / 199.99 V / 1000 V ±(0.5 %+3)
1.9999 V / 19.999 V / 199.99 V / 750.0 V ±(1 %+3)
19.999 mA / 199.99 mA / 1.9999 A / 9.999 A ±(1.2 %+3)
19.999 mA / 199.99 mA / 1.9999 A / 9.999 A ±(1.5 %+3)
9.999 MΩ / 1.9999 MΩ / 199.99 kΩ / 19.999 kΩ ±(0.5 %+3); 1.9999 kΩ / 199.99 Ω ±(2.0 %+3)
9.999 mF / 99.99 mF ±(5.0 %+20)
-55 °C - 1300 °C (-67 °F - 2372 °F) ±(2.5 %+5)
Yes
Yes
