Manufacturer: FNIRSI

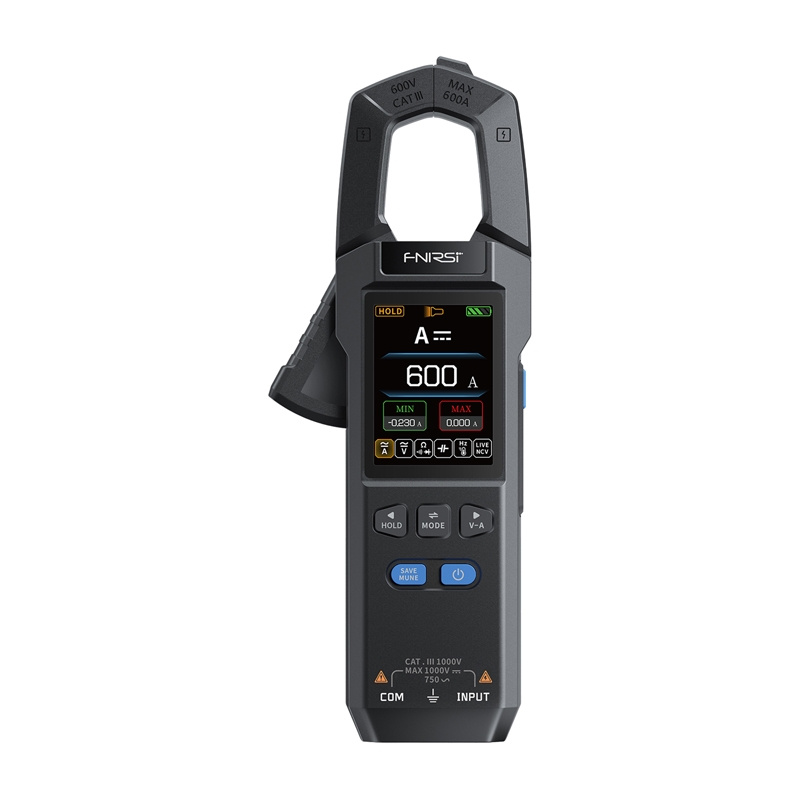

FNIRSI DMC-100 digital clamp meter

€42.53 incl tax

SKU: ST09787318

Manufacturer part number: DMC-100

Manufacturer Homepage

Warranty: 12 months

Stock *

	Stock	Delivery	Quantity	Price
		4 - 8 days	45	€42.53 incl tax

Qty:

Specifications

Products specifications

ManufacturerModelDisplayPower supplyChargingMaximum clamp diameterDimensionsWeightDC voltage rangeDC voltage accuracyAC voltage rangeAccuracy of AC voltageDC current rangeAccuracy of DC currentAC current rangeAccuracy of AC currentResistance rangeResistance accuracyAdditional resistance rangeResistance accuracyCapacitance rangeAccuracy of capacitanceAdditional capacitance rangeAccuracy of capacitanceFrequency rangeFrequency accuracyTemperature rangeTemperature accuracyDiode / continuity / NCV / phase wire test (LIVE)

Description
Description	FNIRSI DMC-100 digital clamp meter FNIRSI DMC-100 is a digital clamp meter for universal measurements in electrical installations. The device integrates the functions of measuring current, voltage, resistance and many other parameters, while allowing non-contact voltage testing. Thanks to its clamp design and 25mm diameter bore, the DMC-100 is suitable for both home work and professional service use. Extensive measurement functions The meter supports measurement of AC/DC current, AC/DC voltage, resistance, capacitance, circuit continuity, diodes, frequency, temperature, and neutral and phase wire test. Thanks to the NCV (non-contact voltage detection) function, it is possible to quickly check the presence of voltage without the risk of contact with wires. Dual measuring system design The use of two independent measuring circuits allows simultaneous measurement of voltage and current, with automatic power calculation. This feature speeds up diagnostics and eliminates the need for additional instruments. Measurement accuracy and data recording The device offers measurement accuracy based on True RMS technology and a resolution of up to 10000 counts, which guarantees precise readings even for nonlinear signals. The graph and data recording function allows analysis of up to 30 sets of results, with the ability to view the last 8 measurements. Efficient power supply A built-in 1500 mAh lithium battery ensures long operation without recharging. Protected by a silicone cap, the USB-C connector is protected from dust and damage. The 2" color LCD display and built-in flashlight allow you to work in low visibility conditions. Included clamp meter USB-A to USB-C charging cable probe for measuring temperature measuring cable user manual
Fnirsi
DMC-100
TFT 2.0" color screen
Lithium battery 3.7V
USB Type-C, 5V/1A
25mm
193 × 74 × 32 mm
194 g
9.999V / 99.99V / 999.9V
±(0.5% + 3)
9.999V / 99.99V / 750.0V
±(1% + 3)
99.99A / 600.0A
±(2.5% + 10)
99.99A / 600.0A
±(2.5% + 10)
9.999MΩ / 999.9kΩ / 99.99kΩ / 9.999kΩ / 999.9Ω
±(1.5% + 3)
99.99MΩ
±(1.5% + 3)
999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
±(2.0% + 5)
9.999mF / 99.99mF
±(5.0% + 20)
9.999MHz / 999.9kHz / 99.99kHz / 9.999kHz / 999.99Hz / 99.99Hz / 9.999Hz
±(0.1% + 2)
(-55 ~ 1300°C) / (-67 ~ 2372°F)
±(2.5% + 5)
yes

Products specifications

Description
Description	FNIRSI DMC-100 digital clamp meter FNIRSI DMC-100 is a digital clamp meter for universal measurements in electrical installations. The device integrates the functions of measuring current, voltage, resistance and many other parameters, while allowing non-contact voltage testing. Thanks to its clamp design and 25mm diameter bore, the DMC-100 is suitable for both home work and professional service use. Extensive measurement functions The meter supports measurement of AC/DC current, AC/DC voltage, resistance, capacitance, circuit continuity, diodes, frequency, temperature, and neutral and phase wire test. Thanks to the NCV (non-contact voltage detection) function, it is possible to quickly check the presence of voltage without the risk of contact with wires. Dual measuring system design The use of two independent measuring circuits allows simultaneous measurement of voltage and current, with automatic power calculation. This feature speeds up diagnostics and eliminates the need for additional instruments. Measurement accuracy and data recording The device offers measurement accuracy based on True RMS technology and a resolution of up to 10000 counts, which guarantees precise readings even for nonlinear signals. The graph and data recording function allows analysis of up to 30 sets of results, with the ability to view the last 8 measurements. Efficient power supply A built-in 1500 mAh lithium battery ensures long operation without recharging. Protected by a silicone cap, the USB-C connector is protected from dust and damage. The 2" color LCD display and built-in flashlight allow you to work in low visibility conditions. Included clamp meter USB-A to USB-C charging cable probe for measuring temperature measuring cable user manual
Fnirsi
DMC-100
TFT 2.0" color screen
Lithium battery 3.7V
USB Type-C, 5V/1A
25mm
193 × 74 × 32 mm
194 g
9.999V / 99.99V / 999.9V
±(0.5% + 3)
9.999V / 99.99V / 750.0V
±(1% + 3)
99.99A / 600.0A
±(2.5% + 10)
99.99A / 600.0A
±(2.5% + 10)
9.999MΩ / 999.9kΩ / 99.99kΩ / 9.999kΩ / 999.9Ω
±(1.5% + 3)
99.99MΩ
±(1.5% + 3)
999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
±(2.0% + 5)
9.999mF / 99.99mF
±(5.0% + 20)
9.999MHz / 999.9kHz / 99.99kHz / 9.999kHz / 999.99Hz / 99.99Hz / 9.999Hz
±(0.1% + 2)
(-55 ~ 1300°C) / (-67 ~ 2372°F)
±(2.5% + 5)
yes
