Manufacturer: GIGABYTE

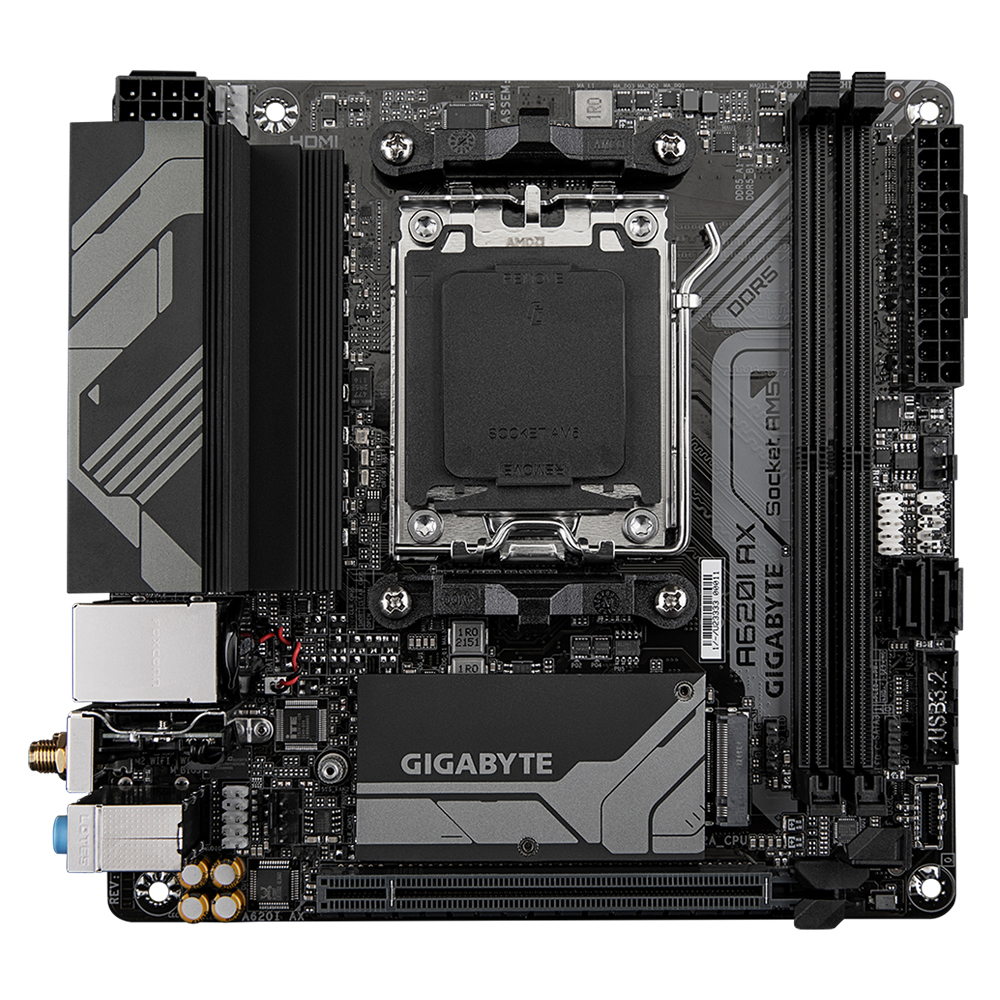

Gigabyte A620I AX motherboard AMD A620 Socket AM5 mini ITX

€139.09 incl tax

SKU: ST07599512

Manufacturer part number: A620I AX

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LT	3 - 5 days	70	€139.09 incl tax
PL	8 - 15 days	3	€146.40 incl tax
LV	2 - 5 days	7	€154.28 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

Video interface	HDMI
Form Factor	mATX
Video interface	DisplayPort
Form Factor	mITX

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Maximum internal memory	96 GB
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory clock speed (max)	6400 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD
Number of storage drives supported	3
RAID support	Yes
RAID levels	0, 1
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	2
Audio connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	3
Microphone in	Yes
WiFi-AP antenna jack	2
USB connector type	USB Type-A, USB Type-C
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model	Realtek RTL8852CE
Bluetooth	Yes
Bluetooth version	5.3
Component for	PC
Motherboard form factor	mini ITX
Motherboard chipset family	AMD
Motherboard chipset	AMD A620
Audio output channels	7.1 channels
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x16 slots	1
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Width	170 mm
Depth	170 mm
Cables included	SATA
Bundled software	Norton Internet Security
Description
Description	Gigabyte A620I AX. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

Description	GIGABYTE A620I AX AM5 DDR5 mATX MB
VatType	VAT
Weight	0.785000000
Height	72.000000000
Width	187.000000000
Length	230.000000000
Description
Description	GIGABYTE A620I AX AM5 2xDDR5 4xSATA 1xM.2 mATX MB

Gross depth (mm)	265.00
Gross height (mm)	52.00
Gross weight	0.76
Gross width (mm)	235.00
Net weight	0.53
Packing quantity	1.00
Paper/Pasteboard	200.00
Plastic (No PET)	25.00
Tare weight (kg)	0.23
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	No
Palette Qty	534
Producer product name	A620I AX 1.0
Supported hard disk drive interfaces	SATA, M.2
Processor family	AMD
Supported memory types	DDR5 DIMM
Processor socket	AM5
Number of SATA connectors	2
Producer	Gigabyte
Warranty	36

Products specifications

1
Details 2
Details 3
Details 4

Video interface	HDMI
Form Factor	mATX
Video interface	DisplayPort
Form Factor	mITX

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Maximum internal memory	96 GB
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory clock speed (max)	6400 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD
Number of storage drives supported	3
RAID support	Yes
RAID levels	0, 1
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	2
Audio connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	3
Microphone in	Yes
WiFi-AP antenna jack	2
USB connector type	USB Type-A, USB Type-C
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model	Realtek RTL8852CE
Bluetooth	Yes
Bluetooth version	5.3
Component for	PC
Motherboard form factor	mini ITX
Motherboard chipset family	AMD
Motherboard chipset	AMD A620
Audio output channels	7.1 channels
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x16 slots	1
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Width	170 mm
Depth	170 mm
Cables included	SATA
Bundled software	Norton Internet Security
Description
Description	Gigabyte A620I AX. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

Description	GIGABYTE A620I AX AM5 DDR5 mATX MB
VatType	VAT
Weight	0.785000000
Height	72.000000000
Width	187.000000000
Length	230.000000000
Description
Description	GIGABYTE A620I AX AM5 2xDDR5 4xSATA 1xM.2 mATX MB

Gross depth (mm)	265.00
Gross height (mm)	52.00
Gross weight	0.76
Gross width (mm)	235.00
Net weight	0.53
Packing quantity	1.00
Paper/Pasteboard	200.00
Plastic (No PET)	25.00
Tare weight (kg)	0.23
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	No
Palette Qty	534
Producer product name	A620I AX 1.0
Supported hard disk drive interfaces	SATA, M.2
Processor family	AMD
Supported memory types	DDR5 DIMM
Processor socket	AM5
Number of SATA connectors	2
Producer	Gigabyte
Warranty	36
