Manufacturer: GIGABYTE

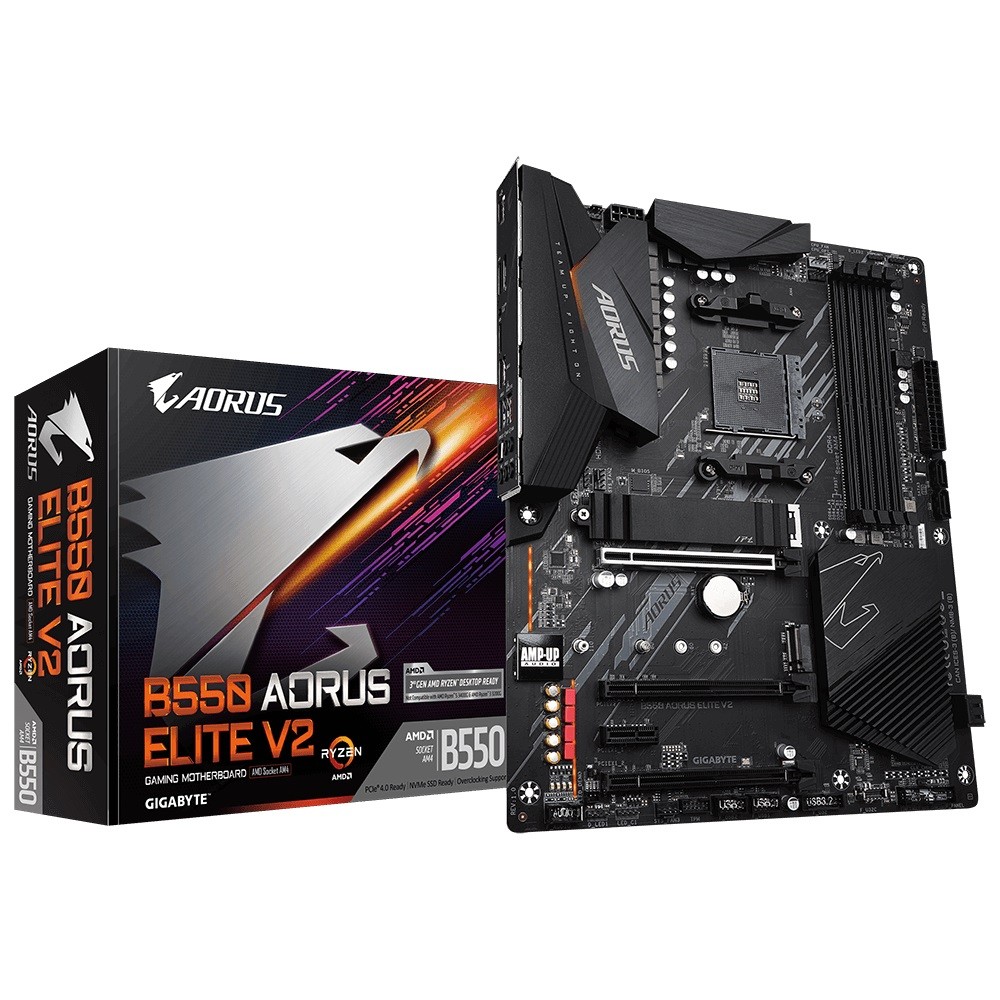

Gigabyte B550 AORUS ELITE V2 motherboard AMD B550 Socket AM4 ATX

€133.61 incl tax

SKU: ST04530846

Manufacturer part number: B550 AORUS ELITE V2

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	17	€133.61 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5

Form Factor	ATX
CPU Socket	Socket AM4
Video interface	HDMI
Memory type	DDR4
Video interface	DisplayPort

Model	B550 AORUS ELITE V2
CPU socket	Socket AM4
Processor family	AMD Ryzen
Integrated CPU	No
Chipset manufacturer	AMD
Chipset type	AMD B550
Memory type	DDR4
Number of DDR4 slots	4
Memory bus frequency	4400 MHz
Memory bus frequency	4000 MHz
Memory bus frequency	2933 MHz
Memory bus frequency	3600 MHz
Memory bus frequency	2133 MHz
Memory bus frequency	2400 MHz
Memory bus frequency	2667 MHz
Memory bus frequency	3333 MHz
Memory bus frequency	3200 MHz
Max memory size	128 (GigaBajt)
Expansion slots	1 x PCIe 3.0 x 1
Expansion slots	2 x PCIe 3.0 x 16
Max. number of SATA devices	4
Max. number of ATA devices	0
RAID	Yes
Detailed data on disk/drive interfaces	1 x złącze M.2 (M2A_CPU), zintegrowane z procesorem, obsługujące gniazdo 3, klucz M, dyski SSD typu 2242/2260/2280/22110: Procesory AMD Ryzen trzeciej generacji obsługują dyski SSD SATA i PCIe 4.0 x4 / x2 AMD Ryzen trzeciej generacji z procesorami Radeon Graphics obsługuje dyski SSD SATA i PCIe 3.0 x4 / x2 1 x złącze M.2 (M2B_SB), zintegrowane z chipsetem, obsługujące gniazdo 3, klucz M, dyski SSD typu 2242/2260/2280/22110: Obsługa dysków SSD SATA i PCIe 3.0 x4 / x2 4 x złącza SATA 6 Gb/s zintegrowane z chipsetem: Obsługa macierzy RAID 0, RAID 1 i RAID 10
Sound card	Realtek ALC1200 codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 Wsparcie dla S/PDIF Out
Network interface	1 x 10/100/1000/2500 Mbit/s
Network interface	Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
USB ports at back panel	7
USB ports on motherboard	8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	0
FireWire (IEEE 1394)	No
COM connector / port	No
LPT connector / port	No
External connectors	1 x HDMI
External connectors	1 x Q-Flash Plus button
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	1 x S/PDIF
External connectors	2 x USB 2.0
External connectors	1 x Rear Speaker
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	3 x USB 3.0
External connectors	2 x USB 3.1
External connectors	1 x DisplayPort
External connectors	1 x Side Speaker
Onboard connectors	1 x TPM header
Onboard connectors	2 x USB 2.0/1.1 header
Onboard connectors	2 x USB 3.0 header
Onboard connectors	1 x 3pin CPU fan
Onboard connectors	1 x 8pin 12V power
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	2 x M.2
Onboard connectors	4 x SATA III 6Gb/s
Onboard connectors	1 x System panel header
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x Clear CMOS jumper
Special functions	Wsparcie dla APP Center Dostępne aplikacje w APP Center mogą się różnić w zależności od modelu płyty głównej. Obsługiwane funkcje każdej aplikacji mogą się również różnić w zależności od specyfikacji płyty głównej. Obsługa @ BIOS EasyTune Fast Boot Game Boost Obsługa ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Obsługa Q-Flash wsparcie dla Xpress Install
BIOS	1 x 256 Mbit flash Korzysta z licencjonowanego AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor	ATX
Dimensions	30.5 x 24.4 cm
Supported operating systems	Windows 10
Software	Norton Internet Security (wersja OEM) Realtek 8125 Gaming LAN Bandwidth Control Utility
Other information	Z uwagi na różne warunki obsługi Linuxa, prosimy o pozyskanie sterowników ze strony internetowej producenta danego układu. Większość producentów chipsetów nie wspiera obsługi starszych systemów operacyjnych takich jak Win9X/ME/2000/XP. Jeśli producent udostępni taki BIOS, znajdzie się on w sekcji "Do pobrania" odpowiednio dla każdego produktu z oferty.
Designation	CE+WEEE
Width	340
Height	80
Depth	270
Weight	1620

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2667,2933,3200 MHz
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID levels	0, 1, 10
Parallel processing technology support	Not supported
Maximum graphics card memory	16 MB
Graphics card family	AMD
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
TPM connector	Yes
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
S/PDIF out port	Yes
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
LAN controller	Realtek RTL8125
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Audio chip	Realtek ALC1200
Windows operating systems supported	Windows 10 x64
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 slots	2
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Harmonized System (HS) code	84733020
Width	305 mm
Depth	244 mm
Height	272 mm
Weight	1.12 kg
Description
Description	Gigabyte B550 AORUS ELITE V2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum graphics card memory: 16 MB, Graphics card family: AMD. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8125

Description	GIGABYTE B550 AORUS ELITE V2 AM4 DDR4
VatType	VAT
Weight	1.625000000
Height	80.000000000
Width	272.000000000
Length	340.000000000
Description
Description	GIGABYTE B550 AORUS ELITE V2 AM4 DDR4 2xM.2 4xSATA HDMI ATX MB

Gross depth (mm)	335
Gross height (mm)	275
Gross weight	1.64
Gross width (mm)	80
Net weight	0.965
Packing quantity	8
Paper/Pasteboard	625
Plastic (No PET)	50.00
Tare weight (kg)	0.675
Volume (m3)	0.00737
Embeeded battery	No
WEEE tax	No
Memory slots	2
Chipset	AMD B
Producer product name	B550 AORUS ELITE V2 1.0
Processor family	AMD
Motherboard form factor	ATX
Supported memory types	DDR4 DIMM
Processor socket	AM4
Compatible processor series	Compatible with 3rd generation AMD Ryzen processors
Gross depth master carton	565
Gross width master carton	365
Gross height master carton	360
Net weight master carton	13.12
Tare weight master carton	1.262
Palette Qty	184
Producer	Gigabyte
Warranty	36
