| Model | B840M DS3H |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 5 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD B840 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 6666 MHz |
| Memory bus frequency | 6600 MHz |
| Memory bus frequency | 8200 MHz |
| Memory bus frequency | 8000 MHz |
| Memory bus frequency | 7950 MHz |
| Memory bus frequency | 7900 MHz |
| Memory bus frequency | 7800 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 7400 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 5200 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 4400 MHz |
| Max memory size | 256 (GigaBajt) |
| Expansion slots | 2 x M.2 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Expansion slots | 1 x PCIe 4.0 x 8 |
| Expansion slots | 1 x PCIe 4.0 x 16 |
| Expansion slots | 1 x PCIe 3.0 x 4 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Złącza rozszerzeń
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU - AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Chipset - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Złącza SATA - 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs::
- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Graphics | Zintegrowany procesor graficzny - obsługa grafiki AMD Radeon
1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa wersji HDMI 2.1, HDCP 2.3 i HDR.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.
2 x DisplayPort, obsługujące maksymalną rozdzielczość 3840x2160@144 Hz
* Obsługa wersji DisplayPort 1.4.
Obsługa do trzech wyświetlaczy jednocześnie
(Specyfikacja grafiki może się różnić w zależności od obsługi procesora.) |
| Sound card | - Realtek audio codec
- Obsługa High Definition Audio
- Ilość kanałów audio 2/4/5.1/7.1
|
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB ports at back panel | 7 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 0 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 1 x Q-Flash Plus button |
| External connectors | 1 x PS/2 Keyboard/MouseCombo |
| External connectors | 2 x DisplayPort |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 4 x USB 2.0 |
| External connectors | 2 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x USB 3.2 Gen 1 Type-C |
| Onboard connectors | 1 x Reset jumper |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-C |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 1 x 4pin Chassis fan |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 2 x M.2 |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 2 x Addressable LED |
| Special functions | - Support for GIGABYTE Control Center (GCC)
- Obsługa Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
|
| BIOS | - 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Form factor | micro ATX |
| Dimensions | 24.4 cm x 17.4 cm |
| Supported operating systems | Windows 10 |
| Supported operating systems | Windows 11 |
| Designation | CE+WEEE |
| Width | 265 |
| Height | 265 |
| Depth | 55 |
| Weight | 1043 |
| Description |

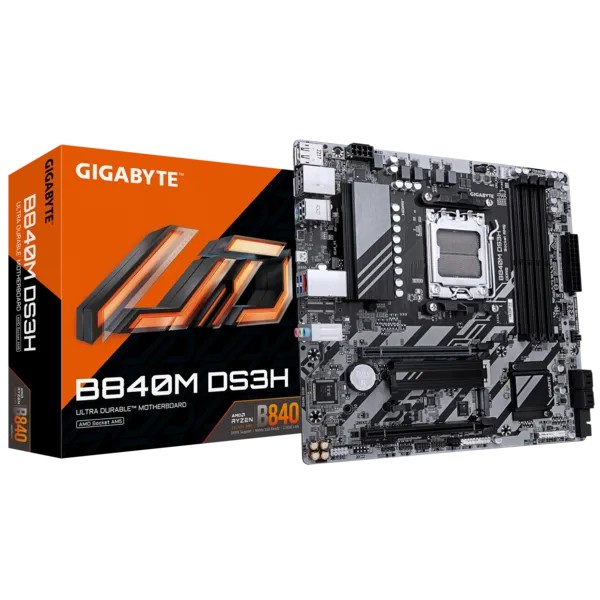

Płyta główna B840M DS3H AM5 4DDR5 HDMI/2DP mATX - X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital 8+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 4.0 x4
- Fast Networking : 2.5GbE LAN
|
