Manufacturer: INTELLINET

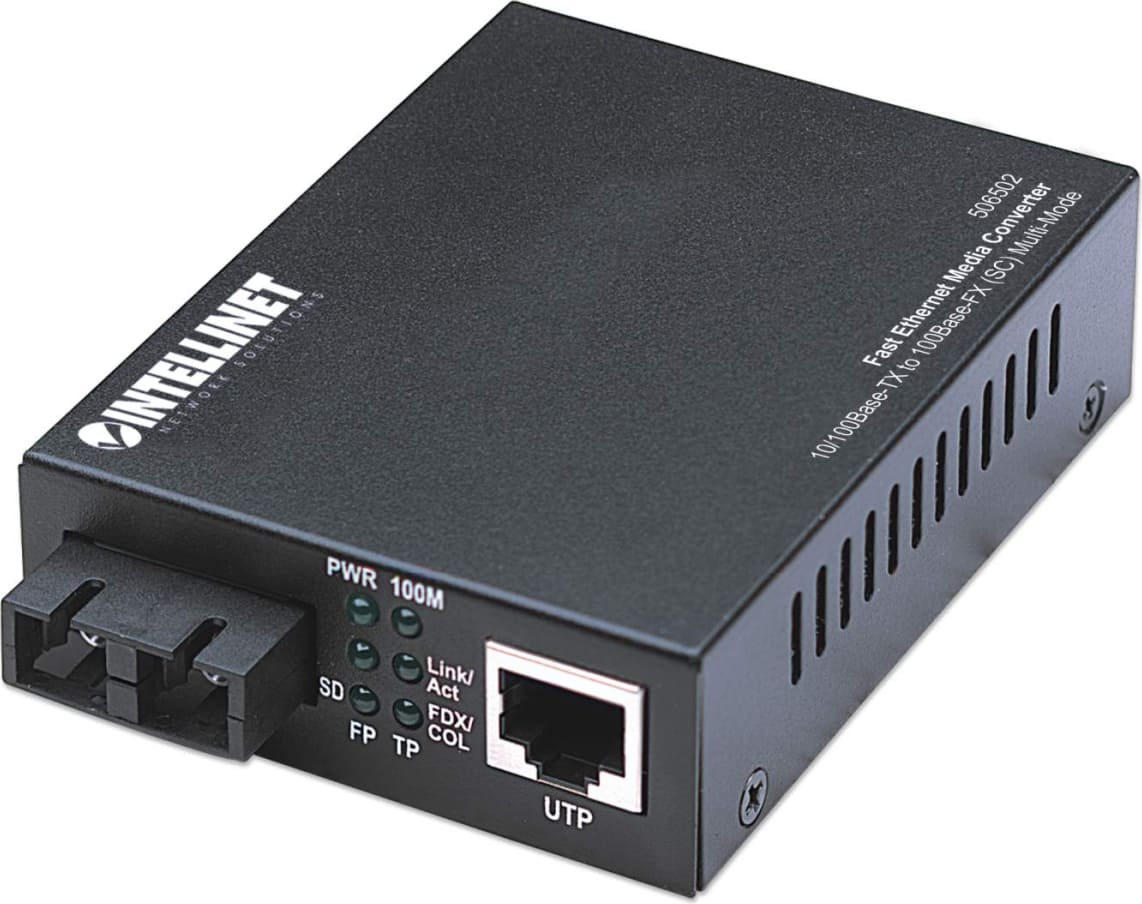

Intellinet 506502 tīlkla mediju pārveidotājs 100 Mbit/s 1310 nm Multi režīms Melns

€77.03 incl tax

SKU: ST09553364

Manufacturer part number: 506502

Manufacturer Homepage

Warranty: 12 months

Stock *

	Stock	Delivery	Quantity	Price
	LV	7 - 12 days	16	€77.03 incl tax

Qty:

Specifications

Products specifications

auto mdi/mdi-x

Yes

weight

500 g

maximum data transfer rate

100 Mbit/s

height

26 mm

width

70 mm

depth

107 mm

input voltage

5 V

networking standards

IEEE 802.3, IEEE 802.3u

product colour

Black

led indicators

LAN, Link, Power, Status

power consumption (max)

2.5 W

operating temperature (t-t)

0 - 70 °C

storage temperature (t-t)

-45 - 80 °C

operating relative humidity (h-h)

10 - 90%

certification

FCC Class B, CE, UKCA, NDAA

harmonized system (hs) code

85176990

internal

package type

Box

ethernet interface type

Fast Ethernet

manual

Yes

ethernet lan data rates

10,100 Mbit/s

duplex system

Full, Half

maximum transfer distance

2000 m

wavelength

1310 nm

fiber mode structure

Multi-mode

fiber cable diameters supported (core/cladding)

50/125,62.5/125 µm

tx power (min)

-22 dBmW

tx power (max)

-12 dBmW

sensitivity

-30 dBmW

housing material

Metal

fiber optic connector

connectivity technology

Wired

ethernet lan (rj-45) ports

fiber ports quantity

dc-in jack

Yes

input current

1 A

external power adapter

Yes

ac adapter included

Yes

Description

Intellinet 506502. Maksimālais datu pārraides ātrums: 100 Mbit/s, Tīkla standarts: IEEE 802.3, IEEE 802.3u, Ethernet interfeisa tips: Ātrais Ethernet. Maksimālais pārskaitījums attālums: 2000 m, Viļņa garums: 1310 nm, Šķiedras režīma struktūra: Multi režīms. LED indikatori: LAN, Link, Jauda, Status, Produkta krāsa: Melns, Apvalka materiāls: Metāls. Optiskās šķiedras konektors: SC, Savienojamības tehnoloģija: Vadu. Ieejas spriegums: 5 V, Ieejas strāva: 1 A, Strāvas patēriņš (maks): 2,5 W
