Manufacturer: INTELLINET NETWORK SOLUTIONS

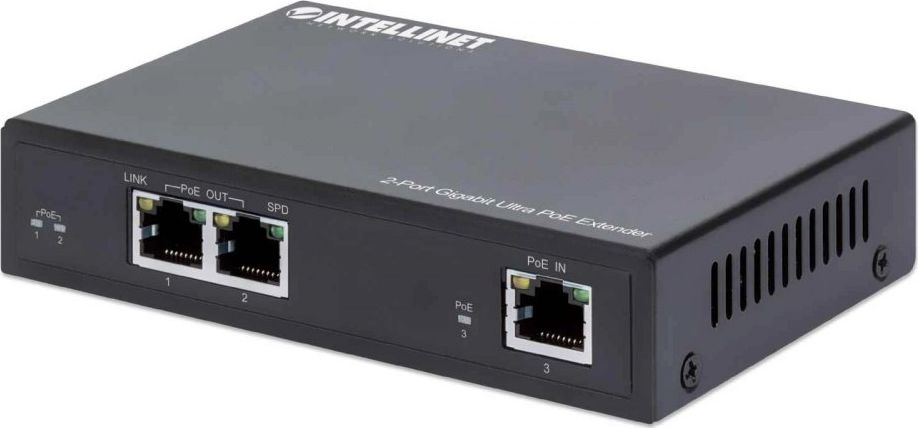

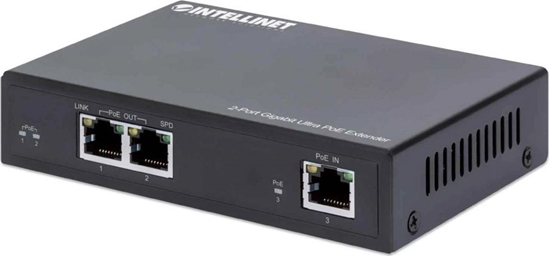

Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing

€89.30 incl tax

SKU: ST05935608

Manufacturer part number: 561600

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	9	€89.30 incl tax

Qty:

Specifications

Products specifications

1
Details 2

WRL stadarti	802.11b
RJ-45 port	3
RJ-45 port	2

Type	Network transmitter
Maximum transfer distance	100 m
Data transfer rate	6000 Mbit/s
Cable types supported	Cat5e
Ethernet LAN data rates	10,100,1000 Mbit/s
Jumbo frames support	Yes
Duplex system	Full
MAC address table	2048 entries
Flow control support	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports	3
Power over Ethernet (PoE) ports quantity	2
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE
Certification	FCC A, CE
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE) voltage range	44 - 57 V
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	20 - 85%
Width	130 mm
Depth	86 mm
Height	29 mm
Weight	331 g
Sustainability certificates	RoHS
Manual	Yes
Harmonized System (HS) code	85176990
Description
Description	Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing. Type: Network transmitter, Maximum transfer distance: 100 m, Data transfer rate: 6000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Housing material: Metal, LED indicators: Activity, Link, PoE. Total Power over Ethernet (PoE) budget: 60 W, Power over Ethernet (PoE) voltage range: 44 - 57 V. Width: 130 mm, Depth: 86 mm, Height: 29 mm

Products specifications

1
Details 2

WRL stadarti	802.11b
RJ-45 port	3
RJ-45 port	2

Type	Network transmitter
Maximum transfer distance	100 m
Data transfer rate	6000 Mbit/s
Cable types supported	Cat5e
Ethernet LAN data rates	10,100,1000 Mbit/s
Jumbo frames support	Yes
Duplex system	Full
MAC address table	2048 entries
Flow control support	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports	3
Power over Ethernet (PoE) ports quantity	2
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE
Certification	FCC A, CE
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE) voltage range	44 - 57 V
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	20 - 85%
Width	130 mm
Depth	86 mm
Height	29 mm
Weight	331 g
Sustainability certificates	RoHS
Manual	Yes
Harmonized System (HS) code	85176990
Description
Description	Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing. Type: Network transmitter, Maximum transfer distance: 100 m, Data transfer rate: 6000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Housing material: Metal, LED indicators: Activity, Link, PoE. Total Power over Ethernet (PoE) budget: 60 W, Power over Ethernet (PoE) voltage range: 44 - 57 V. Width: 130 mm, Depth: 86 mm, Height: 29 mm
