    Manufacturer: LENOVO

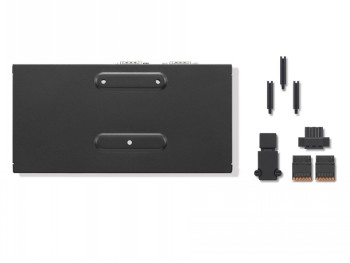

    Lenovo 4XH1C95567 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black


    €386.79 incl tax

    SKU: ST06864444
    Manufacturer part number: 4XH1C95567
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    RJ-45 port 2
    Properties Dock station
    WRL stadarti 802.11b
    Properties USB Type-C
    Properties USB
    DescriptionLENOVO THINKEDGE SE30 IO BOX
    CountryofOriginCHINA
    PictureLocationhttps://www2.f9baltic.com/productimages/big/4XH1C95567.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/4XH1C95567.jpg
    AdditionalPictures 4XH1C95567_2.jpg 4XH1C95567_1.jpg
    Weight1.027592
    Height-1.000000
    Length-1.000000
    Width-1.000000
    BoxSize0
    PalletSize0
    Description
    The ThinkEdge SE30 IOBOX connects to ThinkEdge SE30 via a Type-C connection, providing extra vertical IO offerings such as Power over Ethernet (PoE), Digital Input/Output, and a Serial port (RS232/422/485) offering flexibility and adaptability during Retail, Manufacturing, and Smart Building system integration. One DC cable provides voltage input to the IOBOX and PC device simultaneously, saving customers the extra burden of an AC/DC power transfer in industrial DC power supply environments.

    Key Details
    • Expansion Port Front:
      • 2x RS-232/422/485 (SW changeable)
      • 2x PoE (fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, also compatible with IEEE 802.3af or IEEE 802.3at devices, with input power must be higher than 135W). Equipped with RTL8153B. Support full duplex flow control (IEEE 802.3x)
    • Expansion Port Rear:
      • 1x DC-in 9~36V power input
      • 1x USB-C (connects to SE30 main unit)
      • 1x Digital In connector (Input type: NPN/PNP, Input resistance: 2.5 kO, Isolation voltage: 1.5 kV (DC), Overvoltage protection: 70 V (DC))
      • 1x Digital Out connector (Output type: NPN, voltage 5-30V from external power supply, Current: 500 mA/Channel at 25 C, 300 mA/Channel at 60 C, Isolation voltage: 1.5 kV (DC))
    • Product Dimensions (L*W*H): 177*88*25.6mm
    • Product Weight: 0.506Kg
    • Operating Temperature: - 20 ~ 60 C
    • Shipment Group: IO BOX, DIDO connector, DC connector,screws, USB-C connector, warranty poster, user guide
    • Warranty Period: 1 year
    Connectivity technologyWired
    Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
    Microphone inNo
    Serial ports quantity2
    Ethernet LANYes
    Ethernet LAN (RJ-45) ports2
    Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
    Full duplexYes
    Product colourBlack
    Card reader integratedNo
    LED indicatorsPower
    Brand compatibilityLenovo
    CertificationCE,FCC,cTUVus，ICES,RCM，KCC,VCCI,BSMI,EAC，MOROCCO
    Windows operating systems supportedWindows 10 x64
    Operating temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)10 - 90%
    Width178 mm
    Depth88 mm
    Height25.6 mm
    Weight506 g
    Package width227 mm
    Package depth175 mm
    Package height31 mm
    Package weight650 g
    Warranty cardYes
    User guideYes
    Overload protectionYes
    Description
    Lenovo 4XH1C95567. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, LED indicators: Power, Brand compatibility: Lenovo. Windows operating systems supported: Windows 10 x64. Width: 178 mm, Depth: 88 mm, Height: 25.6 mm

    Products specifications
    RJ-45 port 2
    Properties Dock station
    WRL stadarti 802.11b
    Properties USB Type-C
    Properties USB
    DescriptionLENOVO THINKEDGE SE30 IO BOX
    CountryofOriginCHINA
    PictureLocationhttps://www2.f9baltic.com/productimages/big/4XH1C95567.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/4XH1C95567.jpg
    AdditionalPictures 4XH1C95567_2.jpg 4XH1C95567_1.jpg
    Weight1.027592
    Height-1.000000
    Length-1.000000
    Width-1.000000
    BoxSize0
    PalletSize0
    Description
    The ThinkEdge SE30 IOBOX connects to ThinkEdge SE30 via a Type-C connection, providing extra vertical IO offerings such as Power over Ethernet (PoE), Digital Input/Output, and a Serial port (RS232/422/485) offering flexibility and adaptability during Retail, Manufacturing, and Smart Building system integration. One DC cable provides voltage input to the IOBOX and PC device simultaneously, saving customers the extra burden of an AC/DC power transfer in industrial DC power supply environments.

    Key Details
    • Expansion Port Front:
      • 2x RS-232/422/485 (SW changeable)
      • 2x PoE (fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, also compatible with IEEE 802.3af or IEEE 802.3at devices, with input power must be higher than 135W). Equipped with RTL8153B. Support full duplex flow control (IEEE 802.3x)
    • Expansion Port Rear:
      • 1x DC-in 9~36V power input
      • 1x USB-C (connects to SE30 main unit)
      • 1x Digital In connector (Input type: NPN/PNP, Input resistance: 2.5 kO, Isolation voltage: 1.5 kV (DC), Overvoltage protection: 70 V (DC))
      • 1x Digital Out connector (Output type: NPN, voltage 5-30V from external power supply, Current: 500 mA/Channel at 25 C, 300 mA/Channel at 60 C, Isolation voltage: 1.5 kV (DC))
    • Product Dimensions (L*W*H): 177*88*25.6mm
    • Product Weight: 0.506Kg
    • Operating Temperature: - 20 ~ 60 C
    • Shipment Group: IO BOX, DIDO connector, DC connector,screws, USB-C connector, warranty poster, user guide
    • Warranty Period: 1 year
    Connectivity technologyWired
    Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
    Microphone inNo
    Serial ports quantity2
    Ethernet LANYes
    Ethernet LAN (RJ-45) ports2
    Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
    Full duplexYes
    Product colourBlack
    Card reader integratedNo
    LED indicatorsPower
    Brand compatibilityLenovo
    CertificationCE,FCC,cTUVus，ICES,RCM，KCC,VCCI,BSMI,EAC，MOROCCO
    Windows operating systems supportedWindows 10 x64
    Operating temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)10 - 90%
    Width178 mm
    Depth88 mm
    Height25.6 mm
    Weight506 g
    Package width227 mm
    Package depth175 mm
    Package height31 mm
    Package weight650 g
    Warranty cardYes
    User guideYes
    Overload protectionYes
    Description
    Lenovo 4XH1C95567. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, LED indicators: Power, Brand compatibility: Lenovo. Windows operating systems supported: Windows 10 x64. Width: 178 mm, Depth: 88 mm, Height: 25.6 mm
