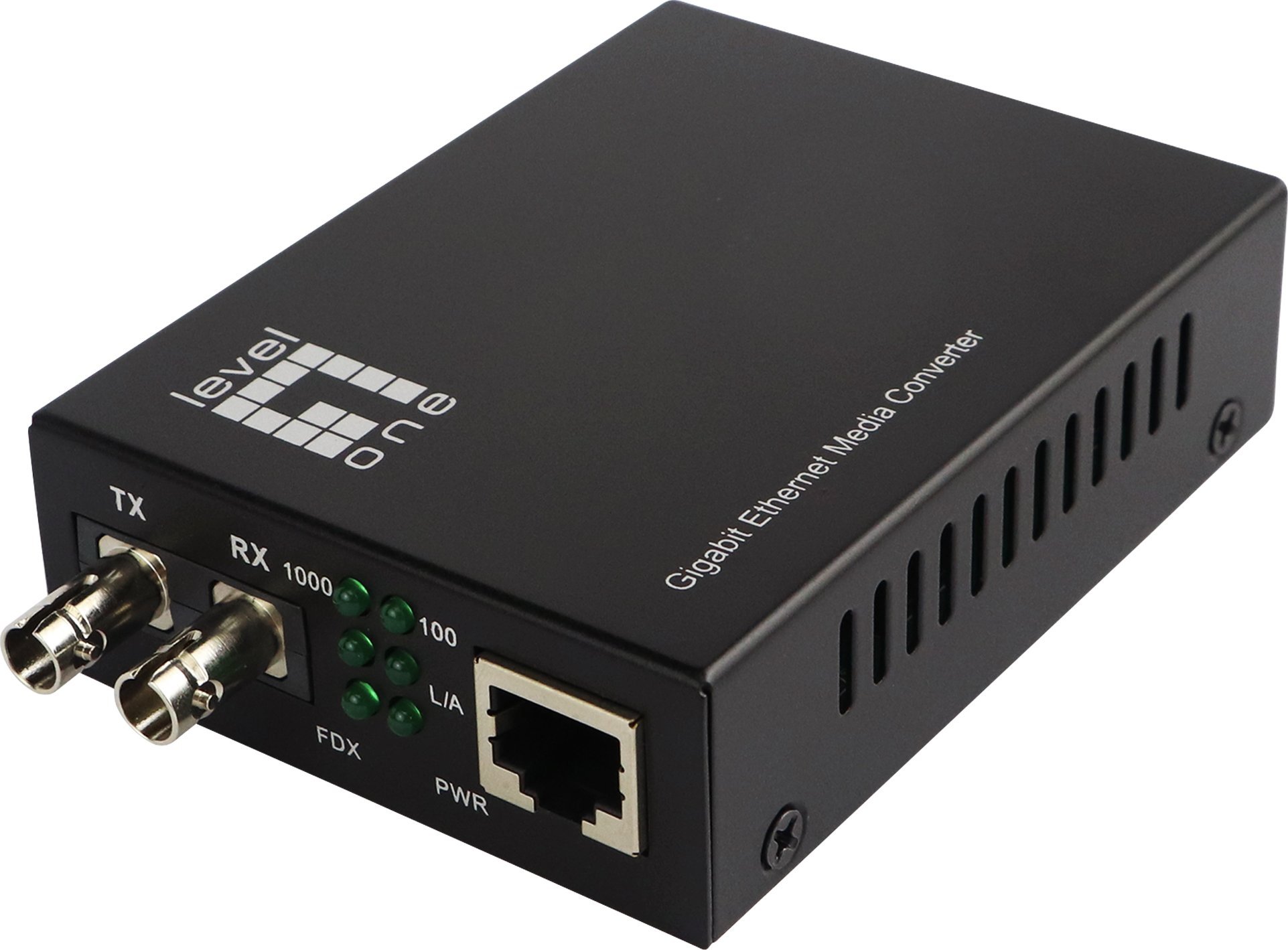

    • Level One LevelOne GVT-2003 tīlkla mediju pārveidotājs 1000 Mbit/s 1310 nm Viens režīms Melns
    Manufacturer: LEVELONE

    Level One LevelOne GVT-2003 tīlkla mediju pārveidotājs 1000 Mbit/s 1310 nm Viens režīms Melns


    €86.30 incl tax

    SKU: ST07486436
    Manufacturer part number: GVT-2003
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    link fault pass-through (lfp)Yes
    weight200 g
    maximum data transfer rate1000 Mbit/s
    height26 mm
    width71 mm
    depth94 mm
    country of originChina
    networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    flow control supportYes
    product colourBlack
    led indicatorsLink, Power
    operating temperature (t-t)-10 - 55 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)5 - 90%
    storage relative humidity (h-h)5 - 90%
    package width235 mm
    package depth120 mm
    package height55 mm
    package weight840 g
    internalNo
    package typeBox
    ethernet interface typeFast Ethernet, Gigabit Ethernet
    compliance certificatesCE
    ethernet lan data rates10,100,1000 Mbit/s
    duplex systemFull, Half
    maximum transfer distance20000 m
    wavelength1310 nm
    fiber mode structureSingle-mode
    fiber optic connectorST
    connectivity technologyWired
    ethernet lan (rj-45) ports1
    dc-in jackYes
    ac adapter includedYes
    master (outer) case gross weight31.2 kg
    master (outer) case width360 mm
    master (outer) case length390 mm
    master (outer) case height480 mm
    products per master (outer) case36 pc(s)
    pallet gross width120 cm
    pallet gross length80 cm
    jumbo frames supportYes
    power consumption (typical)5 W
    master (outer) cases per pallet (air)16 pc(s)
    pallet height (air)158.4 cm
    quick installation guideYes
    sustainability complianceYes
    jumbo frames9000
    converter input interface1000Base-LX, 1000Base-SX
    link loss carry forward (llcf) supportedYes
    link loss return (llr) supportedYes
    Description
    LevelOne GVT-2003. Maksimālais datu pārraides ātrums: 1000 Mbit/s, Konvertora ievades interfeiss: 1000Base-LX, 1000Base-SX, Tīkla standarts: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. Maksimālais pārskaitījums attālums: 20000 m, Viļņa garums: 1310 nm, Šķiedras režīma struktūra: Viens režīms. LED indikatori: Link, Jauda, Produkta krāsa: Melns. Optiskās šķiedras konektors: ST, Savienojamības tehnoloģija: Vadu. Enerģija patēriņš: 5 W

    Products specifications
    link fault pass-through (lfp)Yes
    weight200 g
    maximum data transfer rate1000 Mbit/s
    height26 mm
    width71 mm
    depth94 mm
    country of originChina
    networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    flow control supportYes
    product colourBlack
    led indicatorsLink, Power
    operating temperature (t-t)-10 - 55 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)5 - 90%
    storage relative humidity (h-h)5 - 90%
    package width235 mm
    package depth120 mm
    package height55 mm
    package weight840 g
    internalNo
    package typeBox
    ethernet interface typeFast Ethernet, Gigabit Ethernet
    compliance certificatesCE
    ethernet lan data rates10,100,1000 Mbit/s
    duplex systemFull, Half
    maximum transfer distance20000 m
    wavelength1310 nm
    fiber mode structureSingle-mode
    fiber optic connectorST
    connectivity technologyWired
    ethernet lan (rj-45) ports1
    dc-in jackYes
    ac adapter includedYes
    master (outer) case gross weight31.2 kg
    master (outer) case width360 mm
    master (outer) case length390 mm
    master (outer) case height480 mm
    products per master (outer) case36 pc(s)
    pallet gross width120 cm
    pallet gross length80 cm
    jumbo frames supportYes
    power consumption (typical)5 W
    master (outer) cases per pallet (air)16 pc(s)
    pallet height (air)158.4 cm
    quick installation guideYes
    sustainability complianceYes
    jumbo frames9000
    converter input interface1000Base-LX, 1000Base-SX
    link loss carry forward (llcf) supportedYes
    link loss return (llr) supportedYes
    Description
    LevelOne GVT-2003. Maksimālais datu pārraides ātrums: 1000 Mbit/s, Konvertora ievades interfeiss: 1000Base-LX, 1000Base-SX, Tīkla standarts: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. Maksimālais pārskaitījums attālums: 20000 m, Viļņa garums: 1310 nm, Šķiedras režīma struktūra: Viens režīms. LED indikatori: Link, Jauda, Produkta krāsa: Melns. Optiskās šķiedras konektors: ST, Savienojamības tehnoloģija: Vadu. Enerģija patēriņš: 5 W
