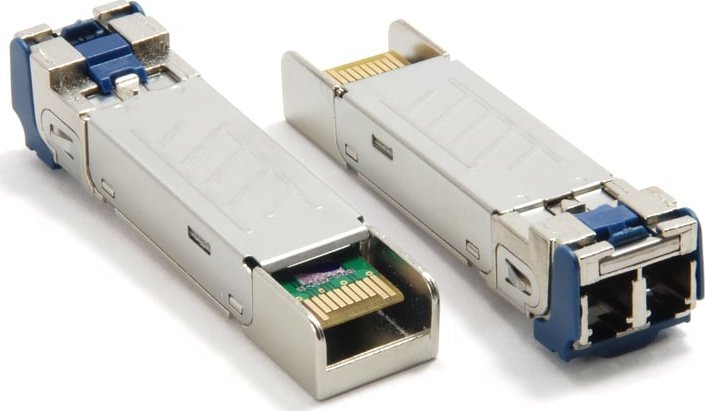

    • Level One LevelOne MiniGBIC GVT-0301 1.25Gbps SFP LX/LC Fiber SM 10km
    Manufacturer: LEVELONE

    Level One LevelOne MiniGBIC GVT-0301 1.25Gbps SFP LX/LC Fiber SM 10km


    €61.52 incl tax

    SKU: ST07363809
    Manufacturer part number: GVT-0301
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    maximum data transfer rate1250 Mbit/s
    height8.5 mm
    width13.5 mm
    depth55.5 mm
    input voltage3.5 V
    country of originTaiwan
    networking standardsIEEE 802.3z
    operating temperature (t-t)0 - 70 °C
    operating relative humidity (h-h)5 - 90%
    package width70 mm
    package depth50 mm
    package height130 mm
    package weight70 g
    certificationClass 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11
    compatible productsGSW-2453 GVT-4000
    harmonized system (hs) code85369010
    quantity per pack1 pc(s)
    maximum transfer distance10000 m
    wavelength1310 nm
    fiber cable diameters supported (core/cladding)9/125 µm
    tx power (min)-9.5 dBmW
    tx power (max)-3 dBmW
    fiber optic connectorLC
    sfp transceiver typeFiber optic
    interface typeSFP
    hot-plug supportYes
    single-mode fiber (smf) supportedYes
    maximum voltage6 V
    maximum current0.3 A
    link budget10.5 dB
    sfp transceiver standardLX
    Description
    LevelOne GVT-0301. SFP veids raiduztvērēja veids: Optiskā škiedra, Maksimālais datu pārraides ātrums: 1250 Mbit/s, Interfeisa tips: SFP. Savienojamie produkti: GSW-2453 GVT-4000. Ieejas spriegums: 3.5 V, Maksimālā jauda: 6 V, Maksimālā strāva: 0,3 A. Sertifikācija: Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11. Platums: 13,5 mm, Dziļums: 55,5 mm, Augstums: 8,5 mm
    height0.000
    width0.000
    depth0.000
    Description
    NO DESCRIPTION

    Products specifications
    maximum data transfer rate1250 Mbit/s
    height8.5 mm
    width13.5 mm
    depth55.5 mm
    input voltage3.5 V
    country of originTaiwan
    networking standardsIEEE 802.3z
    operating temperature (t-t)0 - 70 °C
    operating relative humidity (h-h)5 - 90%
    package width70 mm
    package depth50 mm
    package height130 mm
    package weight70 g
    certificationClass 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11
    compatible productsGSW-2453 GVT-4000
    harmonized system (hs) code85369010
    quantity per pack1 pc(s)
    maximum transfer distance10000 m
    wavelength1310 nm
    fiber cable diameters supported (core/cladding)9/125 µm
    tx power (min)-9.5 dBmW
    tx power (max)-3 dBmW
    fiber optic connectorLC
    sfp transceiver typeFiber optic
    interface typeSFP
    hot-plug supportYes
    single-mode fiber (smf) supportedYes
    maximum voltage6 V
    maximum current0.3 A
    link budget10.5 dB
    sfp transceiver standardLX
    Description
    LevelOne GVT-0301. SFP veids raiduztvērēja veids: Optiskā škiedra, Maksimālais datu pārraides ātrums: 1250 Mbit/s, Interfeisa tips: SFP. Savienojamie produkti: GSW-2453 GVT-4000. Ieejas spriegums: 3.5 V, Maksimālā jauda: 6 V, Maksimālā strāva: 0,3 A. Sertifikācija: Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11. Platums: 13,5 mm, Dziļums: 55,5 mm, Augstums: 8,5 mm
    height0.000
    width0.000
    depth0.000
    Description
    NO DESCRIPTION
