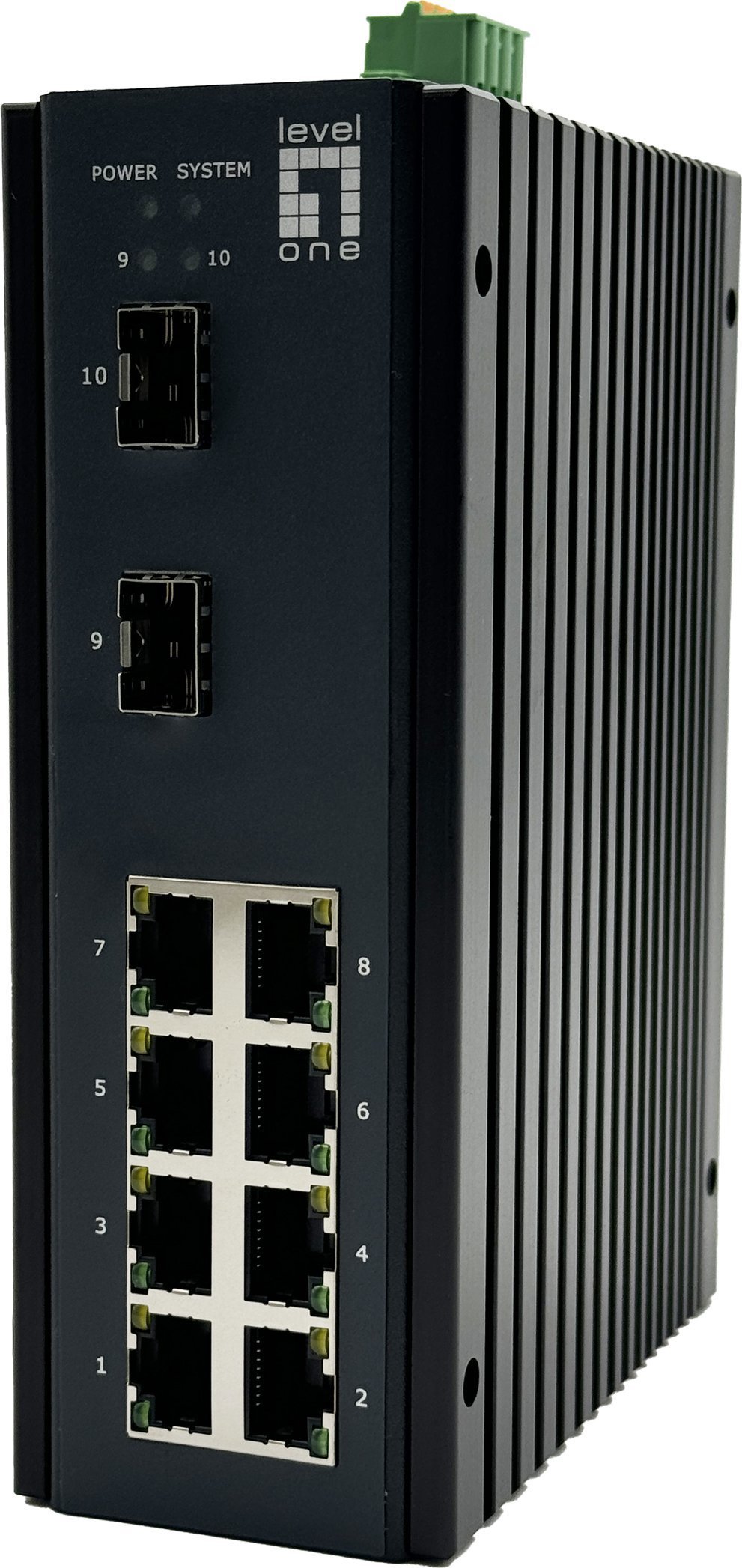

    • Level One LevelOne IGU-1071 tīkla pārslēgs Vadīts L2+ Gigabit Ethernet (10/100/1000) Melns
    Manufacturer: LEVELONE

    Level One LevelOne IGU-1071 tīkla pārslēgs Vadīts L2+ Gigabit Ethernet (10/100/1000) Melns


    €481.25 incl tax

    SKU: ST08299329
    Manufacturer part number: IGU-1071
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    power over ethernet (poe)No
    international protection (ip) codeIP40
    ethernet ring protection switching (erps)Yes
    ip source guard (ipsg)Yes
    weight1.12 kg
    height158 mm
    width54 mm
    depth115 mm
    switch typeManaged
    country of originChina
    switch layerL2+
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity8
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity8
    sfp module slots quantity2
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
    port mirroringYes
    flow control supportYes
    link aggregationYes
    mac address table16000 entries
    switching capacity26 Gbit/s
    forwarding rate38.6 Mpps
    packet buffer memory12 MB
    access control list (acl)Yes
    product colourBlack
    led indicatorsPower, System
    power consumption (max)10 W
    operating temperature (t-t)-40 - 75 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 95%
    package width230 mm
    package depth180 mm
    package height70 mm
    package weight1.38 kg
    harmonized system (hs) code851762
    compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA
    power sourceDC
    cables includedLAN (RJ-45)
    master (outer) case gross weight17.5 kg
    master (outer) case width440 mm
    master (outer) case length375 mm
    master (outer) case height250 mm
    products per master (outer) case12 pc(s)
    pallet gross width120 cm
    pallet gross length80 cm
    jumbo frames supportYes
    master (outer) cases per pallet (air)28 pc(s)
    pallet height (air)164.4 cm
    security algorithmsHTTPS, SSH
    quick start guideYes
    jumbo frames10000
    igmp snoopingYes
    power supply includedNo
    surge protectionYes
    spanning tree protocolYes
    fanlessYes
    dc input voltage12 - 58 V
    number of power supply units2
    vlan supportYes
    firmware upgradeableYes
    system event logYes
    dhcp featuresDHCP server
    redundant power supply (rps) supportYes
    console portRJ-45
    din rail mountingYes
    arp inspectionYes
    authenticationMAC-based authentication, Port-based authentication
    terminal block includedYes
    din rail includedYes
    configuring location settings (cli)Yes
    ip-mac-port bindingYes
    authentication typeIEEE 802.1x, RADIUS
    remote administrationY
    surge protection voltage6 kV
    Description
    LevelOne IGU-1071. Slēdža tips: Vadīts, Slēdža līmenis: L2+. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 26 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... DC ievades spriegums: 12 - 58 V
