    Manufacturer: LEVELONE

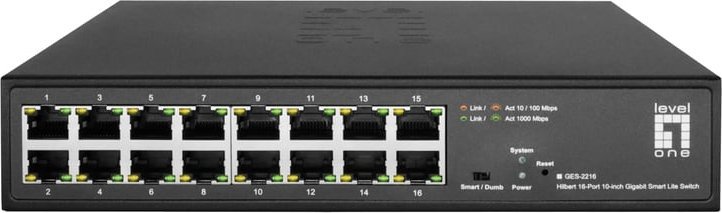

    Level One GES-2216 Hilbert 16Port 10inch Gb Switch


    €131.90 incl tax

    SKU: ST07913604
    Manufacturer part number: GES-2216
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    WRL stadarti 802.11b
    auto mdi/mdi-xYes
    power over ethernet (poe)No
    weight838 g
    height44.5 mm
    width215 mm
    depth150 mm
    full duplexYes
    auto-negotiationYes
    switch typeManaged
    stackableNo
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity16
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity16
    power connectorAC-in jack
    networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    port mirroringYes
    link aggregationYes
    mac address table8000 entries
    switching capacity32 Gbit/s
    forwarding rate23808 Mpps
    packet buffer memory4.1 MB
    rack mountingYes
    product colourBlack
    led indicatorsActivity, Link, Power
    noise level0 dB
    mean time between failures (mtbf)43800 h
    operating temperature (t-t)0 - 45 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 95%
    heat dissipation35.8 BTU/h
    package width285 mm
    package depth257 mm
    package height62 mm
    package weight1.27 kg
    certificationCE, UKCA, FCC Part 15, Subpart B Class B, RoHS
    package typeBox
    power sourceAC
    cables includedAC
    jumbo frames supportYes
    power consumption (typical)6 W
    quick start guideYes
    jumbo frames10000
    igmp snoopingYes
    power supply includedYes
    rack mount kitYes
    fanlessYes
    mac address auto-learning supportedYes
    mac address auto-aging supportedYes
    vlan supportYes
    flash memory2 MB
    broadcast storm controlYes
    rate limitingYes
    number of vlans32
    half duplexYes
    Description
    LevelOne GES-2216. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 16. Pilns duplekss. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 32 Gbit/s. Tīkla standarts: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Saspraudnis: AC barošanas spraudnis. Statņa montāža

    Products specifications
    Properties RJ-45
    WRL stadarti 802.11b
    auto mdi/mdi-xYes
    power over ethernet (poe)No
    weight838 g
    height44.5 mm
    width215 mm
    depth150 mm
    full duplexYes
    auto-negotiationYes
    switch typeManaged
    stackableNo
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity16
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity16
    power connectorAC-in jack
    networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    port mirroringYes
    link aggregationYes
    mac address table8000 entries
    switching capacity32 Gbit/s
    forwarding rate23808 Mpps
    packet buffer memory4.1 MB
    rack mountingYes
    product colourBlack
    led indicatorsActivity, Link, Power
    noise level0 dB
    mean time between failures (mtbf)43800 h
    operating temperature (t-t)0 - 45 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 95%
    heat dissipation35.8 BTU/h
    package width285 mm
    package depth257 mm
    package height62 mm
    package weight1.27 kg
    certificationCE, UKCA, FCC Part 15, Subpart B Class B, RoHS
    package typeBox
    power sourceAC
    cables includedAC
    jumbo frames supportYes
    power consumption (typical)6 W
    quick start guideYes
    jumbo frames10000
    igmp snoopingYes
    power supply includedYes
    rack mount kitYes
    fanlessYes
    mac address auto-learning supportedYes
    mac address auto-aging supportedYes
    vlan supportYes
    flash memory2 MB
    broadcast storm controlYes
    rate limitingYes
    number of vlans32
    half duplexYes
    Description
    LevelOne GES-2216. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 16. Pilns duplekss. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 32 Gbit/s. Tīkla standarts: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Saspraudnis: AC barošanas spraudnis. Statņa montāža
