    Manufacturer: LEVELONE

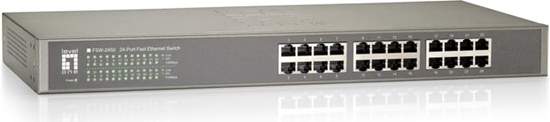

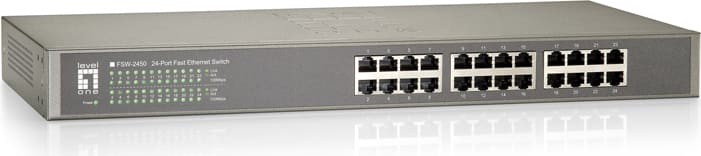

    Level One FSW-2450 19 24-Port 10/100Mbps Switch


    €104.04 incl tax

    SKU: ST07439463
    Manufacturer part number: FSW-2450
    Manufacturer Homepage
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    Properties RJ-45
    RJ-45 port 24
    Status10 dienas
    Description
    Product Overview The FSW-2450 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices. Advanced Networking Features The LevelOne FSW-2450 is a wire-speed, nonblocking 24 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 4.8Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX. The 24-port Fast Ethernet Switch utilizes packet store-and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss. Compact Design The FSW-2450 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit. Quick Configuration and Easy Maintenance The LevelOne FSW-2450 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 24 port Fast Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting.

    Switch type Unmanaged
    Quality of Service (QoS) support Y
    Basic switching RJ-45 Ethernet ports quantity 24
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Power connector DC-in jack
    Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Cable types supported Cat5
    Full duplex Y
    Flow control support Y
    Rate limiting Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address auto-learning supported Y
    MAC address table 8192 entries
    Switching capacity 4.8 Gbit/s
    Store-and-forward Y
    Packet buffer memory 0.16 MB
    Switching protocols CSMA, CD
    Rack mounting Y
    Product colour Black
    LED indicators Activity, Link, Power
    Country of origin China
    Certification FCC Class A, CE, RoHS
    Maximum cable length 100 m
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (typical) 10 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 5 - 95%
    Width 140 mm
    Depth 440 mm
    Height 44 mm
    Weight 1.45 kg
    Cables included AC
    Quick start guide Y
    Rack mount kit Y
    Package width 224 mm
    Package depth 486 mm
    Package height 77 mm
    Package weight 2.13 kg
    Master (outer) case width 405 mm
    Master (outer) case length 500 mm
    Master (outer) case height 240 mm
    Harmonized System (HS) code 85176990
    Master (outer) case gross weight 11.6 kg
