    PrevLevelOne GEP-2651 TURING 26...
    NextLevelOne GEP-2821 28-Port-G...
    Manufacturer: LEVELONE

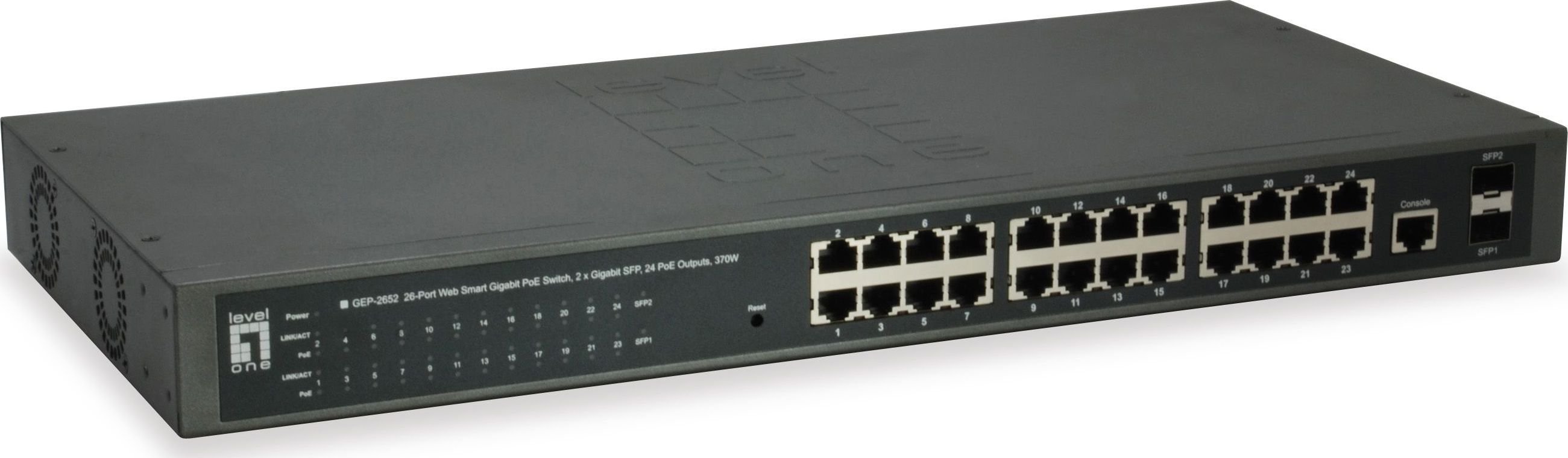

    LevelOne GEP-2652 26-Port Smart-Gigabit-PoE-Switch


    €542.99 incl tax

    SKU: ST07497906
    Manufacturer part number: GEP-2652
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    RJ-45 port 26
    Properties RJ-45
    power over ethernet (poe)Yes
    telnetYes
    weight3.87 kg
    height44 mm
    width440 mm
    depth208 mm
    switch typeManaged
    country of originChina
    switch layerL2
    quality of service (qos) supportYes
    basic switching rj-45 ethernet ports quantity24
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity24
    sfp module slots quantity2
    power connectorAC-in jack
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    port mirroringYes
    link aggregationYes
    mac address table8000 entries
    forwarding rate38.69 Mpps
    store-and-forwardYes
    packet buffer memory128 MB
    access control list (acl)Yes
    multicast supportYes
    rack mountingYes
    product colourGrey
    led indicatorsLink, PoE, Power
    power consumption (max)435 W
    power over ethernet (poe) ports quantity24
    total power over ethernet (poe) budget370 W
    operating temperature (t-t)0 - 45 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 90%
    package width555 mm
    package depth295 mm
    package height88 mm
    package weight4.2 kg
    certificationCE
    harmonized system (hs) code85176990
    package typeBox
    compliance certificatesRoHS
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    housing materialMetal
    input current6.5 A
    cables includedAC
    jumbo frames supportYes
    security algorithmsSNMPv3
    resource cdYes
    reset buttonYes
    quick start guideYes
    jumbo frames9000
    igmp snoopingYes
    rack mount kitYes
    internal memory8 MB
    spanning tree protocolYes
    vlan supportYes
    firmware upgradeableYes
    dos attack preventionYes
    broadcast storm controlYes
    rate limitingYes
    dhcp featuresDHCP snooping
    ssh/ssl supportYes
    number of vlans4000
    virtual lan featuresMAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
    console portRJ-45
    power over ethernet (poe) power per port30 W
    arp inspectionYes
    authenticationGuest VLAN, Web-based authentication
    multicast listener discovery (mld) snoopingv1/v2
    ipv4 & ipv6 featuresIPv6 Telnet
    rubber feetYes
    password protectionYes
    igmp proxyYes
    garp vlan registration protocol (gvrp)Yes
    authentication typeRADIUS
    queue scheduling algorithmsPriority queuing (PQ), Weighted Round Robin (WRR)
    network virtualization technologiesQ-in-Q tunneling
    qinq implementationSelective QinQ
    Description
    LevelOne GEP-2652. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 8000 ieraksti. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Saspraudnis: AC barošanas spraudnis. Power over Ethernet (PoE). Statņa montāža
