Manufacturer: LEVELONE

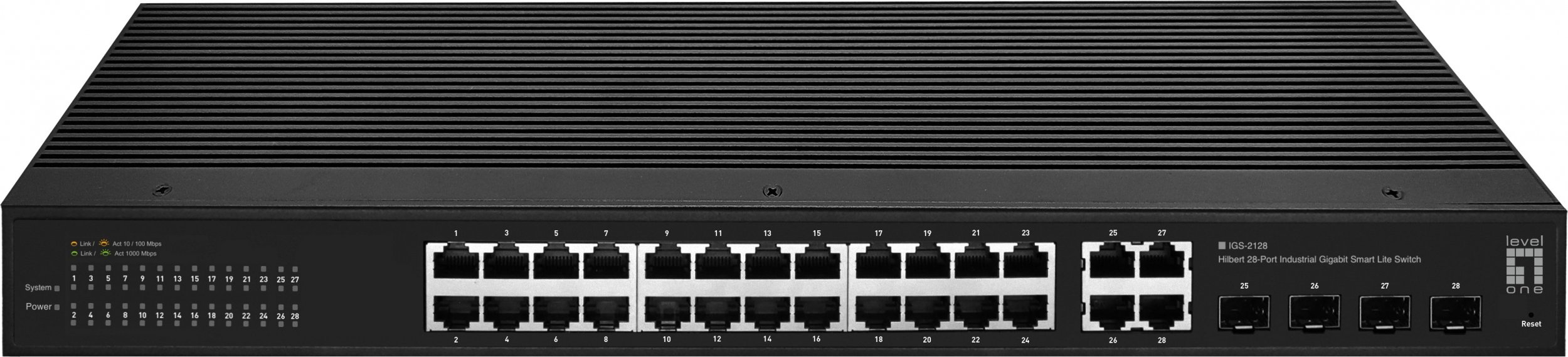

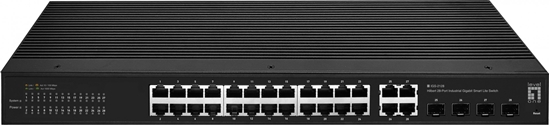

Level One LevelOne IGS-2128 tīkla pārslēgs Vadīts L2 Gigabit Ethernet (10/100/1000) Melns

€519.83 incl tax

SKU: ST08242237

Manufacturer part number: IGS-2128

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	5	€519.83 incl tax
PL	8 - 15 days	1	€636.87 incl tax

Qty:

Specifications

Products specifications

power over ethernet (poe)

international protection (ip) code

IP30

weight

3.4 kg

height

45 mm

width

440 mm

depth

244 mm

full duplex

Yes

switch type

Managed

country of origin

China

switch layer

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

gigabit ethernet (copper) ports quantity

networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

8000 entries

switching capacity

56 Gbit/s

packet buffer memory

4.1 MB

multicast support

Yes

rack mounting

Yes

product colour

Black

led indicators

Power, Link, Activity

noise level

0 dB

mean time between failures (mtbf)

43800 h

operating temperature (t-t)

-40 - 75 °C

storage temperature (t-t)

-40 - 85 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 95%

heat dissipation

68.24 BTU/h

package width

510 mm

package depth

375 mm

package height

93 mm

package weight

4 kg

harmonized system (hs) code

8517620090

package type

Box

compliance certificates

CE, Federal Communications Commission (FCC), RoHS, UKCA

power source

master (outer) case gross weight

12.5 kg

pallet gross height

174.4 cm

master (outer) case width

540 mm

master (outer) case length

320 mm

master (outer) case height

400 mm

products per master (outer) case

3 pc(s)

pallet gross width

120 cm

pallet gross length

80 cm

jumbo frames support

Yes

power consumption (typical)

20 W

sustainability compliance

Yes

quick start guide

Yes

jumbo frames

9000

igmp snooping

Yes

power supply included

rack mount kit

Yes

surge protection

Yes

power protection features

Surge protection

fanless

Yes

dc input voltage

12 - 57 V

mac address auto-learning supported

Yes

mac address auto-aging supported

Yes

vlan support

Yes

flash memory

2 MB

broadcast storm control

Yes

rate limiting

Yes

redundant power supply (rps) support

Yes

number of vlans

virtual lan features

Port-based VLAN, Tagged VLAN

combo sfp ports quantity

terminal block included

Yes

queue scheduling algorithms

Priority queuing (PQ)

surge protection voltage

4 kV

layers per pallet (air)

16 pc(s)

Description

LevelOne IGS-2128. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 28. Pilns duplekss. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 56 Gbit/s. Tīkla standarts: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... DC ievades spriegums: 12 - 57 V. Statņa montāža
