Manufacturer: LEVELONE

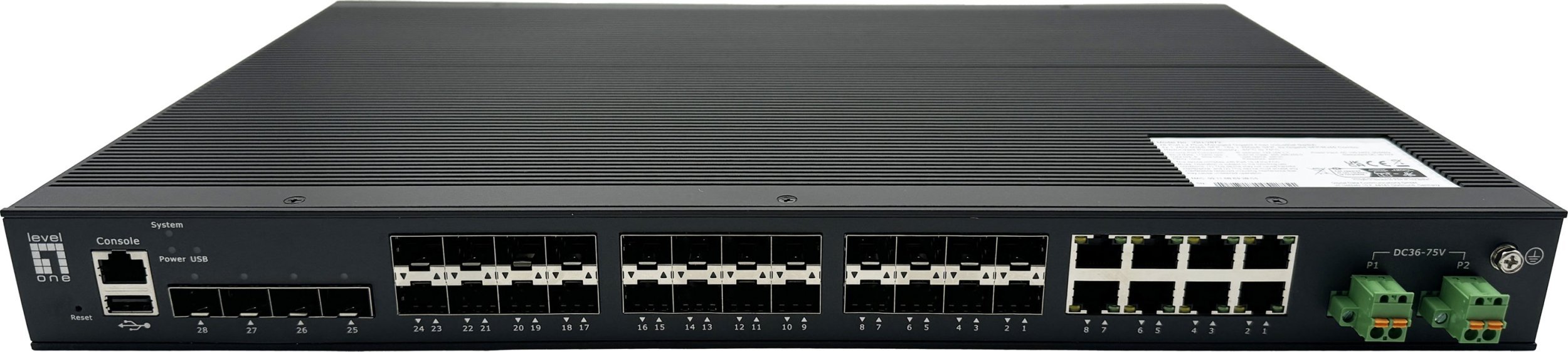

Level One LevelOne IGU-2872 tīkla pārslēgs Vadīts L2+ Melns

€1122.96 incl tax

SKU: ST08302429

Manufacturer part number: IGU-2872

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	4	€1122.96 incl tax
PL	8 - 15 days	2	€1410.07 incl tax

Qty:

Specifications

Products specifications

power over ethernet (poe)

international protection (ip) code

IP40

ethernet ring protection switching (erps)

Yes

ip source guard (ipsg)

Yes

weight

4.14 kg

height

280 mm

width

440 mm

depth

45 mm

switch type

Managed

country of origin

China

switch layer

L2+

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports type

sfp module slots quantity

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

copper ethernet cabling technology

10BASE-T, 100BASE-TX, 100BASE-X, 1000BASE-T

port mirroring

Yes

flow control support

Yes

mac address table

16000 entries

switching capacity

68 Gbit/s

forwarding rate

101.1 Mpps

packet buffer memory

12 MB

access control list (acl)

Yes

mac address filtering

Yes

rack mounting

Yes

product colour

Black

led indicators

Power, System, USB

mean time between failures (mtbf)

200000 h

power consumption (max)

36 W

operating temperature (t-t)

-40 - 80 °C

storage temperature (t-t)

-40 - 85 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 95%

package width

525 mm

package depth

390 mm

package height

95 mm

package weight

5.29 kg

harmonized system (hs) code

851762

compliance certificates

CE, Federal Communications Commission (FCC), RoHS, UKCA

power source

ac input voltage

100 - 240 V

ac input frequency

50/60 Hz

usb 2.0 ports quantity

cables included

AC, LAN (RJ-45)

master (outer) case gross weight

22.5 kg

master (outer) case width

535 mm

master (outer) case length

400 mm

master (outer) case height

408 mm

products per master (outer) case

4 pc(s)

pallet gross width

120 cm

pallet gross length

80 cm

jumbo frames support

Yes

master (outer) cases per pallet (air)

14 pc(s)

pallet height (air)

177.6 cm

security algorithms

HTTPS, SSH

quick start guide

Yes

jumbo frames

10000

power supply included

Yes

rack mount kit

Yes

surge protection

Yes

spanning tree protocol

Yes

fanless

Yes

dc input voltage

36 - 75 V

vlan support

Yes

system event log

Yes

broadcast storm control

Yes

rate limiting

Yes

redundant power supply (rps) support

Yes

virtual lan features

MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping

combo sfp ports quantity

console port

RJ-45

authentication

MAC-based authentication, Port-based authentication

terminal block included

Yes

ipv4 & ipv6 features

IPv4/IPv6 access-control list (ACL)

packet filtering

queue scheduling algorithms

Weighted Round Robin (WRR)

port trunking

Yes

surge protection voltage

6 kV

mac address entries

Dynamic MAC address entries, Static MAC address entries

Description

LevelOne IGU-2872. Slēdža tips: Vadīts, Slēdža līmenis: L2+. USB 2.0 pieslēgvietu skaits: 1, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 68 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... DC ievades spriegums: 36 - 75 V. Statņa montāža
