Manufacturer: LEVELONE

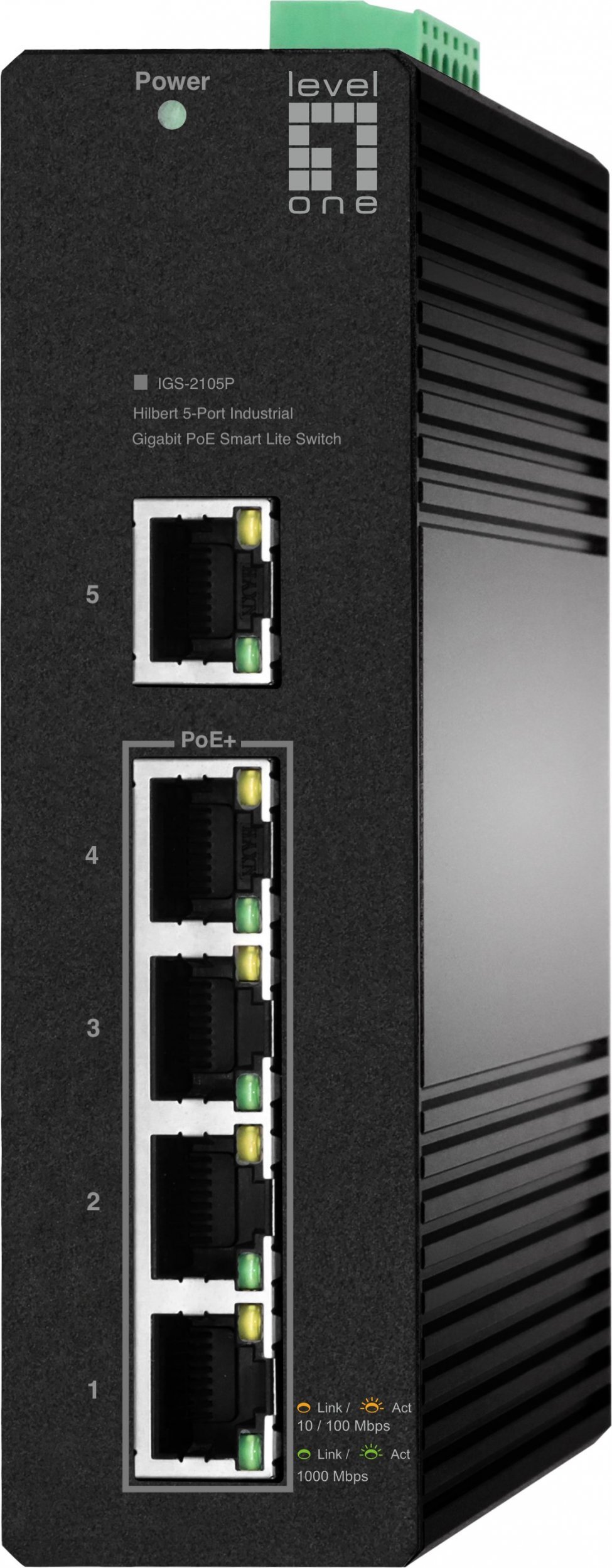

Level One LevelOne IGS-2105P tīkla pārslēgs Vadīts L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

€131.90 incl tax

SKU: ST08241196

Manufacturer part number: IGS-2105P

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	5	€131.90 incl tax
PL	8 - 15 days	1	€191.40 incl tax

Qty:

Specifications

Products specifications

auto mdi/mdi-x

Yes

power over ethernet (poe)

Yes

international protection (ip) code

IP30

weight

450 g

height

38.5 mm

width

136 mm

depth

108 mm

full duplex

Yes

auto-negotiation

Yes

switch type

Managed

country of origin

China

switch layer

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

gigabit ethernet (copper) ports quantity

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10g support

copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

2000 entries

switching capacity

10 Gbit/s

forwarding rate

7.44 Mpps

packet buffer memory

1.5 MB

multicast support

Yes

led indicators

Activity, Link, Power

noise level

0 dB

mean time between failures (mtbf)

43800 h

power over ethernet plus (poe+) ports quantity

total power over ethernet (poe) budget

60 W

operating temperature (t-t)

-40 - 70 °C

storage temperature (t-t)

-40 - 85 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 95%

heat dissipation

23.88 BTU/h

package width

191 mm

package depth

135 mm

package height

60 mm

package weight

680 g

harmonized system (hs) code

8517620090

package type

Box

compliance certificates

CE, Federal Communications Commission (FCC), RoHS, UKCA

power source

DC/PoE

master (outer) case gross weight

24 kg

pallet gross height

154.4 cm

master (outer) case width

480 mm

master (outer) case length

395 mm

master (outer) case height

350 mm

products per master (outer) case

34 pc(s)

pallet gross width

120 cm

pallet gross length

80 cm

jumbo frames support

Yes

power consumption (typical)

68 W

sustainability compliance

Yes

quick start guide

Yes

jumbo frames

9000

igmp snooping

Yes

power supply included

surge protection

Yes

spanning tree protocol

Yes

fanless

Yes

dc input voltage

44 - 57 V

mac address auto-learning supported

Yes

mac address auto-aging supported

Yes

vlan support

Yes

flash memory

2 MB

broadcast storm control

Yes

rate limiting

Yes

redundant power supply (rps) support

Yes

number of vlans

virtual lan features

Port-based VLAN

half duplex

Yes

din rail mounting

Yes

terminal block included

Yes

din rail included

Yes

queue scheduling algorithms

Priority queuing (PQ)

surge protection voltage

4 kV

uplink ports quantity

redundant fans support

Yes

layers per pallet (air)

16 pc(s)

Description

LevelOne IGS-2105P. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 5. Pilns duplekss. Adrešu tabulas izmērs: 2000 ieraksti, Komutācijas ietilpība: 10 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE.... DC ievades spriegums: 44 - 57 V. Power over Ethernet (PoE)
