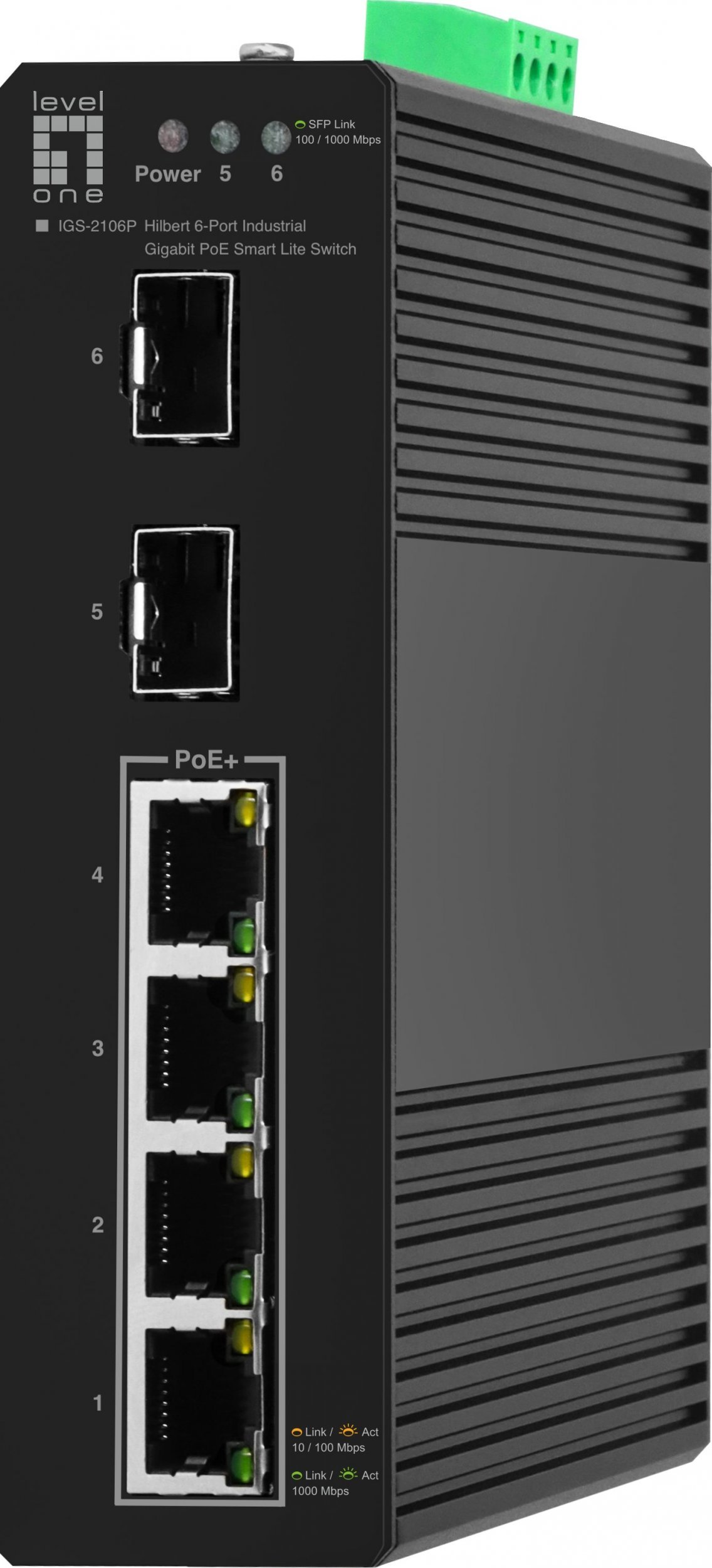

    • Level One LevelOne IGS-2106P tīkla pārslēgs Vadīts L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Melns
    Manufacturer: LEVELONE

    Level One LevelOne IGS-2106P tīkla pārslēgs Vadīts L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Melns


    €142.53 incl tax

    SKU: ST08244042
    Manufacturer part number: IGS-2106P
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    auto mdi/mdi-xYes
    power over ethernet (poe)Yes
    international protection (ip) codeIP30
    weight450 g
    height38.5 mm
    width136 mm
    depth108 mm
    full duplexYes
    auto-negotiationYes
    switch typeManaged
    country of originChina
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity4
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity4
    sfp module slots quantity2
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
    port mirroringYes
    flow control supportYes
    link aggregationYes
    mac address table2000 entries
    switching capacity12 Gbit/s
    forwarding rate8.928 Mpps
    packet buffer memory1.5 MB
    multicast supportYes
    product colourBlack
    led indicatorsActivity, Link, Power
    noise level0 dB
    mean time between failures (mtbf)43800 h
    power over ethernet plus (poe+) ports quantity4
    total power over ethernet (poe) budget68 W
    operating temperature (t-t)-40 - 75 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 95%
    heat dissipation27.3 BTU/h
    package width191 mm
    package depth135 mm
    package height60 mm
    package weight680 g
    harmonized system (hs) code8517620090
    package typeBox
    compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA
    power sourceDC/PoE
    master (outer) case gross weight24 kg
    pallet gross height154.4 cm
    master (outer) case width480 mm
    master (outer) case length395 mm
    master (outer) case height350 mm
    products per master (outer) case34 pc(s)
    pallet gross width120 cm
    pallet gross length80 cm
    jumbo frames supportYes
    power consumption (typical)68 W
    sustainability complianceYes
    quick start guideYes
    jumbo frames9000
    igmp snoopingYes
    power supply includedNo
    surge protectionYes
    power protection featuresSurge protection
    spanning tree protocolYes
    fanlessYes
    dc input voltage44 - 57 V
    mac address auto-learning supportedYes
    mac address auto-aging supportedYes
    vlan supportYes
    flash memory2 MB
    broadcast storm controlYes
    rate limitingYes
    redundant power supply (rps) supportYes
    number of vlans32
    virtual lan featuresPort-based VLAN, Tagged VLAN
    half duplexYes
    din rail mountingYes
    terminal block includedYes
    din rail includedYes
    queue scheduling algorithmsPriority queuing (PQ)
    surge protection voltage4 kV
    redundant fans supportYes
    layers per pallet (air)16 pc(s)
    fiber uplink ports quantity2
    Description
    LevelOne IGS-2106P. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 4. Pilns duplekss. Adrešu tabulas izmērs: 2000 ieraksti, Komutācijas ietilpība: 12 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE.... DC ievades spriegums: 44 - 57 V. Power over Ethernet (PoE)

    Products specifications
    auto mdi/mdi-xYes
    power over ethernet (poe)Yes
    international protection (ip) codeIP30
    weight450 g
    height38.5 mm
    width136 mm
    depth108 mm
    full duplexYes
    auto-negotiationYes
    switch typeManaged
    country of originChina
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity4
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity4
    sfp module slots quantity2
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
    port mirroringYes
    flow control supportYes
    link aggregationYes
    mac address table2000 entries
    switching capacity12 Gbit/s
    forwarding rate8.928 Mpps
    packet buffer memory1.5 MB
    multicast supportYes
    product colourBlack
    led indicatorsActivity, Link, Power
    noise level0 dB
    mean time between failures (mtbf)43800 h
    power over ethernet plus (poe+) ports quantity4
    total power over ethernet (poe) budget68 W
    operating temperature (t-t)-40 - 75 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 95%
    heat dissipation27.3 BTU/h
    package width191 mm
    package depth135 mm
    package height60 mm
    package weight680 g
    harmonized system (hs) code8517620090
    package typeBox
    compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA
    power sourceDC/PoE
    master (outer) case gross weight24 kg
    pallet gross height154.4 cm
    master (outer) case width480 mm
    master (outer) case length395 mm
    master (outer) case height350 mm
    products per master (outer) case34 pc(s)
    pallet gross width120 cm
    pallet gross length80 cm
    jumbo frames supportYes
    power consumption (typical)68 W
    sustainability complianceYes
    quick start guideYes
    jumbo frames9000
    igmp snoopingYes
    power supply includedNo
    surge protectionYes
    power protection featuresSurge protection
    spanning tree protocolYes
    fanlessYes
    dc input voltage44 - 57 V
    mac address auto-learning supportedYes
    mac address auto-aging supportedYes
    vlan supportYes
    flash memory2 MB
    broadcast storm controlYes
    rate limitingYes
    redundant power supply (rps) supportYes
    number of vlans32
    virtual lan featuresPort-based VLAN, Tagged VLAN
    half duplexYes
    din rail mountingYes
    terminal block includedYes
    din rail includedYes
    queue scheduling algorithmsPriority queuing (PQ)
    surge protection voltage4 kV
    redundant fans supportYes
    layers per pallet (air)16 pc(s)
    fiber uplink ports quantity2
    Description
    LevelOne IGS-2106P. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 4. Pilns duplekss. Adrešu tabulas izmērs: 2000 ieraksti, Komutācijas ietilpība: 12 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE.... DC ievades spriegums: 44 - 57 V. Power over Ethernet (PoE)
