- Compatible with IEEE 802.11a/b/g/n/ac wireless standards
- Multi-operation modes to suit different wireless applications
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Provides up to 8 SSIDs to separate network traffic and enhance security
- Auto Channel Selection for low interference band

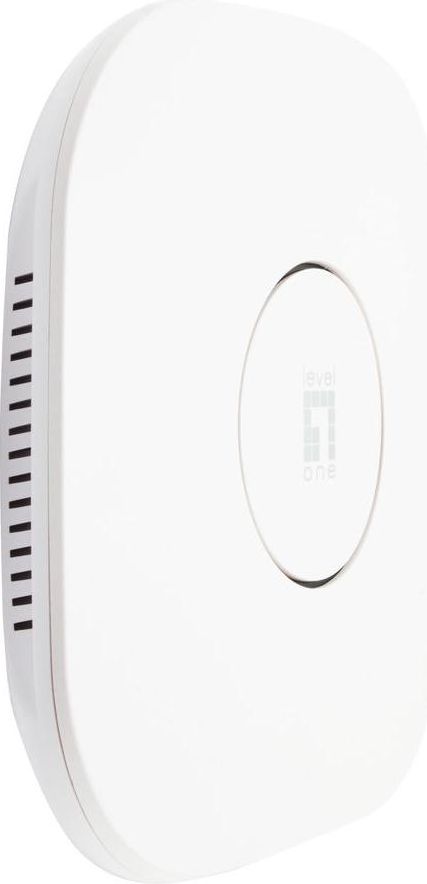

"The LevelOne WAP-8121 is a sophisticated, fast dual-band managed wireless access point, offering up to 450 Mbps on the 5 GHz band and up to 300 Mbps on the 2.4 GHz band. It provides a combined throughput of 750 Mbps using 802.11ac standards. The advanced wireless access point also supports all legacy wireless devices on 802.11a/b/g/n. WAP-8121 performs automatic testing and assigns channels dynamically to detect conflicts and channel interference, constantly optimising performance in the background. The device runs on PoE, negating the need for electrical wiring.
Central management allows for adjustments to the RF (Radio Frequency) (according to )the environment, further optimising the performance of the network by adjusting and balancing workloads as well as detecting areas of weak reception. it provides WEP, WPA-PSK, WPA-TKIP, and WPA2 AES secured connectivity for securing the Wireless Area Network and to prevent unauthorized access. The device supports up to four(Eight) SSIDs allowing unique configuration settings for different network regions. The sophisticated and stylish access point mounts on a ceiling, providing a low-profile, highly effective networking solution."
| | 2.4 GHz | Y | | 5 GHz | Y | | Maximum data transfer rate | 433 Mbit/s | | Ethernet LAN data rates | 10,100,1000 Mbit/s | | Frequency band | 2.4 - 5.825 GHz | | Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x | | Number of users | 80 user(s) | | Channels quantity | 36 channels | | Automatic channel selection | Y | | Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK | | Wi-Fi Multimedia (WMM)/(WME) | Y | | Flow control support | Y | | Quality of Service (QoS) support | Y | | Receiver sensitivity | 2.4GHz:
802.11n (20MHZ): -70 dBm
802.11n (40MHZ): -68 dBm
802.11g: -72 dBm
802.11b: -95 dBm
5GHz:
802.11ac (80MHZ): -62 dBm
802.11ac (40MHZ): -65 dBm
802.11ac (20MHZ): -68 dBm
802.11n (40MHZ): -68 dBm
802.11n (20MHZ): -70 dBm
802.11a: -72 dBm | | Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP | | Service Set Identifier (SSID) features | SSID broadcast on/off | | Number of SSID supported | 8 | | Web-based management | Y | | Switch type | Managed | | Firmware upgradeable | Y | | Ethernet LAN (RJ-45) ports | 2 | | WAN connection | Ethernet (RJ-45), Wi-Fi | | DC-in jack | Y | | Power over Ethernet (PoE) | Y | | Output voltage | 12 V | | Output current | 1.5 A | | Power consumption (typical) | 15 W | | Placement | Ceiling, Wall | | Product colour | White | | Reset button | Y | | LED indicators | Power, WLAN | | Certification | CE/FCC | | Internal | N | | Antenna direction type | Omni-directional | | Antenna features | Integrated antenna | | Antennas quantity | 3 | | Antenna gain level (max) | 15 dBi | | Width | 189 mm | | Depth | 38.5 mm | | Height | 189 mm | | Weight | 326 g | | Package width | 214 mm | | Package depth | 62 mm | | Package height | 317 mm | | Package weight | 680 g | | Cables included | LAN (RJ-45) | | Quick start guide | Y | | Operating relative humidity (H-H) | -20 - 50% | | Operating temperature (T-T) | -40 - 70 °C | | Storage temperature (T-T) | 5 - 90 °C | | Storage relative humidity (H-H) | 10 - 90% | | Harmonized System (HS) code | 85176990 |
|
|
