    Manufacturer: LINDY

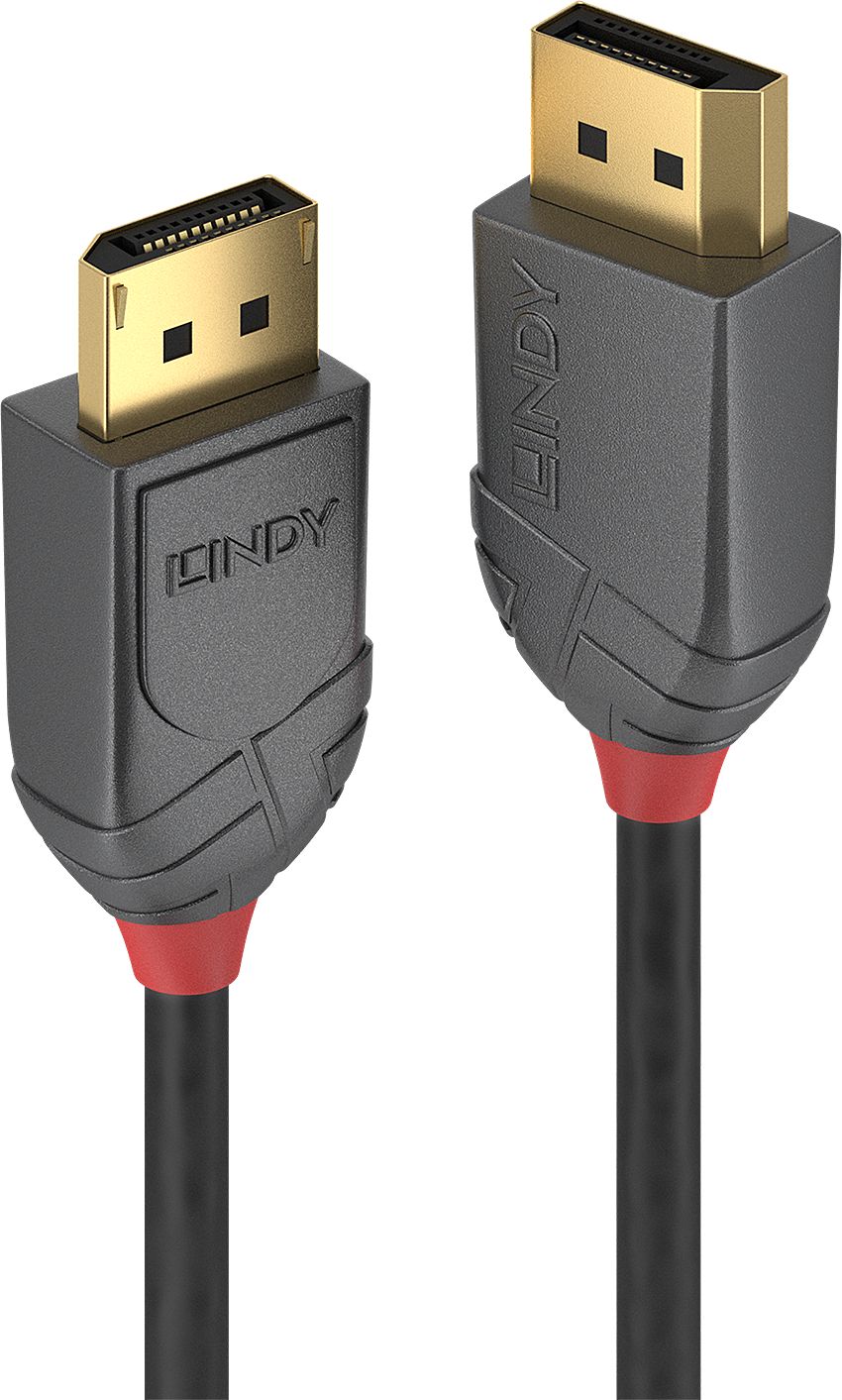

    Lindy 2m DisplayPort 1.4 Cable, Anthra Line


    €18.21 incl tax

    SKU: ST05025475
    Manufacturer part number: 36482
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL
    LV

    Products specifications
    Properties Display port
    Color Black
    Color Gray
    Color Gold
    Cable length2 m
    Connector 1DisplayPort
    Connector 2DisplayPort
    Connector 1 genderMale
    Connector 2 genderMale
    Maximum resolution7680 x 4320 pixels
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    Connector contacts platingGold
    DisplayPort version1.4
    Supported graphics resolutions4096 x 2160, 7680 x 4320
    Cable materialTinned copper
    Cable shieldingCopper
    Jacket materialPolyvinyl chloride (PVC)
    Connector housing materialAcrylonitrile butadiene styrene (ABS)
    AWG wire size28
    Data transfer rate32.4 Gbit/s
    Contact materialPhosphor bronze
    Connector materialGold
    Bend radius (min)5.84 cm
    Colour sampling4:2:2
    Cable typeRound cable
    Nominal attenuation100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
    CertificationRoHS, REACH, UL
    Operating temperature (T-T)-20 - 80 °C
    Storage temperature (T-T)-25 - 85 °C
    Cable diameter7.3 mm
    Connector 1 dimensions (WxDxH)21 x 38.9 x 13.6 mm
    Package typePolybag
    Harmonized System (HS) code84733080
    Depth38.9 mm
    Height13.6 mm
    Width21 mm
    Description
    Lindy 2m DisplayPort 1.4 Cable, Anthra Line. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Package type: Polybag. Depth: 38.9 mm, Height: 13.6 mm, Width: 21 mm
    Description
    Connector 1 DisplayPort | Connector 2 DisplayPort | Gold | Cable length 2 m | DisplayPort version 1.4 | Product colour Black | Cable shielding Copper
    cable shieldingCopper
    gross weight0.15
    height13.6 mm
    width21 mm
    depth38.9 mm
    data transfer rate32.4 Gbit/s
    cable length2 m
    cable materialTinned copper
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)-20 - 80 °C
    storage temperature (t-t)-25 - 85 °C
    certificationRoHS, REACH, UL
    connector 1DisplayPort
    connector 2DisplayPort
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    package typePolybag
    connector contacts platingGold
    jacket materialPolyvinyl chloride (PVC)
    awg wire size28
    connector 1 form factorStraight
    connector 2 form factorStraight
    maximum resolution7680 x 4320 pixels
    displayport version1.4
    supported graphics resolutions4096 x 2160, 7680 x 4320
    cable diameter7.3 mm
    bend radius (min)5.84 cm
    connector housing materialAcrylonitrile butadiene styrene (ABS)
    connector 1 dimensions (wxdxh)21 x 38.9 x 13.6 mm
    connector materialGold
    nominal attenuation100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
    contact materialPhosphor bronze
    colour sampling4:2:2
    net weight0.14
    packaging height19.40
    packaging lenght17.40
    packaging width2.00
    warranty10
    tech data sheetshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f6/67/97/62/629767f6d0ebe20d37a65f80/36482_TDS_v1.pdf
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f78/CE_DoC_DE_36480_36484.pdf
    variation of36480
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f78/CE_DoC_DE_36480_36484.pdf
    Description

    Connectors

    • Connector A: DisplayPort Male
    • Connector B: DisplayPort Male
    • Housing Material: ABS
    • Connector Plating: 24K Gold 15µm
    • Pin Construction: Phosphor Bronze
    • Pin Plating: 24K Gold 3µm
    • Dimensions (approx.) WxDxH: 20.7x42.6x13mm (0.81x1.68x0.51in)

    Cable Construction

    • Length: 2m  (6.56ft)
    • Standard: DisplayPort 1.4
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 7.0mm (0.28in)
    • Jacket Material: PVC
    • Conductor Material: Copper
    • Conductor Gauge: 28AWG
    • Shielding: Copper Braid 65%

    Specifications

    • Supported Bandwidth: 32.4Gbit/s
    • Maximum Resolution:
      • 7680x4320@60Hz 4:2:2 8bit
      • 4096x2160@144Hz 4:2:2 10bit
    • Nominal Attenuation: 100MHz-450MHz <5.1dB,  450MHz-8100MHz <33.28dB
    • Minumum Band Radius: 58.4mm (2.14in)
    • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
    • Storage Temperature: -25°C - 85°C (-13°F - 185°F)
    • ATC Approved: -

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL

    Purchasing Information

    • No.: 36482
    • EAN: 4002888364829

    This product is also available in other lengths

    • 36480 - 0.5m (1.64ft)
    • 36481 - 1m (3.28ft)
    • 36482 - 2m (6.56ft)
    • 36483 - 3m (9.84ft)
    • 36484 - 5m (16.40ft)



    CE Doc: CE_DoC_DE_36480_36484.pdf
    Tech Data Sheets: 36482_TDS_v1.pdf

    Products specifications
    Properties Display port
    Color Black
    Color Gray
    Color Gold
    Cable length2 m
    Connector 1DisplayPort
    Connector 2DisplayPort
    Connector 1 genderMale
    Connector 2 genderMale
    Maximum resolution7680 x 4320 pixels
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    Connector contacts platingGold
    DisplayPort version1.4
    Supported graphics resolutions4096 x 2160, 7680 x 4320
    Cable materialTinned copper
    Cable shieldingCopper
    Jacket materialPolyvinyl chloride (PVC)
    Connector housing materialAcrylonitrile butadiene styrene (ABS)
    AWG wire size28
    Data transfer rate32.4 Gbit/s
    Contact materialPhosphor bronze
    Connector materialGold
    Bend radius (min)5.84 cm
    Colour sampling4:2:2
    Cable typeRound cable
    Nominal attenuation100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
    CertificationRoHS, REACH, UL
    Operating temperature (T-T)-20 - 80 °C
    Storage temperature (T-T)-25 - 85 °C
    Cable diameter7.3 mm
    Connector 1 dimensions (WxDxH)21 x 38.9 x 13.6 mm
    Package typePolybag
    Harmonized System (HS) code84733080
    Depth38.9 mm
    Height13.6 mm
    Width21 mm
    Description
    Lindy 2m DisplayPort 1.4 Cable, Anthra Line. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Package type: Polybag. Depth: 38.9 mm, Height: 13.6 mm, Width: 21 mm
    Description
    Connector 1 DisplayPort | Connector 2 DisplayPort | Gold | Cable length 2 m | DisplayPort version 1.4 | Product colour Black | Cable shielding Copper
    cable shieldingCopper
    gross weight0.15
    height13.6 mm
    width21 mm
    depth38.9 mm
    data transfer rate32.4 Gbit/s
    cable length2 m
    cable materialTinned copper
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)-20 - 80 °C
    storage temperature (t-t)-25 - 85 °C
    certificationRoHS, REACH, UL
    connector 1DisplayPort
    connector 2DisplayPort
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    package typePolybag
    connector contacts platingGold
    jacket materialPolyvinyl chloride (PVC)
    awg wire size28
    connector 1 form factorStraight
    connector 2 form factorStraight
    maximum resolution7680 x 4320 pixels
    displayport version1.4
    supported graphics resolutions4096 x 2160, 7680 x 4320
    cable diameter7.3 mm
    bend radius (min)5.84 cm
    connector housing materialAcrylonitrile butadiene styrene (ABS)
    connector 1 dimensions (wxdxh)21 x 38.9 x 13.6 mm
    connector materialGold
    nominal attenuation100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
    contact materialPhosphor bronze
    colour sampling4:2:2
    net weight0.14
    packaging height19.40
    packaging lenght17.40
    packaging width2.00
    warranty10
    tech data sheetshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f6/67/97/62/629767f6d0ebe20d37a65f80/36482_TDS_v1.pdf
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f78/CE_DoC_DE_36480_36484.pdf
    variation of36480
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f78/CE_DoC_DE_36480_36484.pdf
    Description

    Connectors

    • Connector A: DisplayPort Male
    • Connector B: DisplayPort Male
    • Housing Material: ABS
    • Connector Plating: 24K Gold 15µm
    • Pin Construction: Phosphor Bronze
    • Pin Plating: 24K Gold 3µm
    • Dimensions (approx.) WxDxH: 20.7x42.6x13mm (0.81x1.68x0.51in)

    Cable Construction

    • Length: 2m  (6.56ft)
    • Standard: DisplayPort 1.4
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 7.0mm (0.28in)
    • Jacket Material: PVC
    • Conductor Material: Copper
    • Conductor Gauge: 28AWG
    • Shielding: Copper Braid 65%

    Specifications

    • Supported Bandwidth: 32.4Gbit/s
    • Maximum Resolution:
      • 7680x4320@60Hz 4:2:2 8bit
      • 4096x2160@144Hz 4:2:2 10bit
    • Nominal Attenuation: 100MHz-450MHz <5.1dB,  450MHz-8100MHz <33.28dB
    • Minumum Band Radius: 58.4mm (2.14in)
    • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
    • Storage Temperature: -25°C - 85°C (-13°F - 185°F)
    • ATC Approved: -

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL

    Purchasing Information

    • No.: 36482
    • EAN: 4002888364829

    This product is also available in other lengths

    • 36480 - 0.5m (1.64ft)
    • 36481 - 1m (3.28ft)
    • 36482 - 2m (6.56ft)
    • 36483 - 3m (9.84ft)
    • 36484 - 5m (16.40ft)



    CE Doc: CE_DoC_DE_36480_36484.pdf
    Tech Data Sheets: 36482_TDS_v1.pdf
