    Manufacturer: LINDY

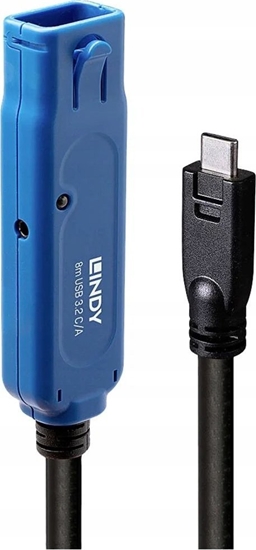

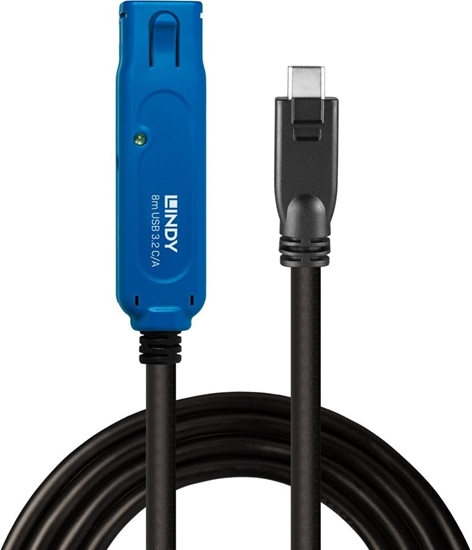

    Lindy 8m USB 3.2 5Gbps C/A Active Extension Pro


    €102.97 incl tax

    SKU: ST07596410
    Manufacturer part number: 43381
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Properties USB Type-C
    Color Black
    Properties USB
    Color Gold
    Color Blue
    weight630 g
    maximum data transfer rate5 Gbit/s
    cable length8 m
    cable typeRound cable
    country of originTW
    product colourBlack, Blue
    operating temperature (t-t)0 - 50 °C
    storage temperature (t-t)-20 - 60 °C
    package width230 mm
    package depth198 mm
    package height63 mm
    package weight830 g
    connector 1USB C
    connector 2USB A
    connector 1 genderMale
    connector 2 genderFemale
    quantity per pack1 pc(s)
    package typeBox
    connector contacts platingNickel/Gold
    compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS
    conductor materialTinned copper
    awg wire size24/24/20
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    sustainability complianceYes
    cable diameter7 mm
    bend radius (min)7 cm
    connector 1 dimensions (wxdxh)14 x 43.65 x 11.2 mm
    connector 2 dimensions (wxdxh)20 x 80 x 13 mm
    nominal attenuation0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.67dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB
    power note2.5/0.7mm DC Connector
    packaging height6.5
    packaging lenght23.5
    packaging width20.0
    warranty2.0
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f5/74/da/63/63da74f59050d56a4d950b56/CE_43380-1.pdf
    Description
    Connectors
    • Connector A: USB Type C Male
    • Connector B: USB Type A Female
    • Power: 2.5/0.7mm DC Connector
    • Housing Material: Plastic
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold Flash
    • Dimensions (approx.) WxDxH:
      • USB C Male: 14x43.65x11.2mm (0.55x1.72x0.44in)
      • USB A Female: 20x80x13mm (0.79x3.15x0.51in)
    Cable Construction
    • Length: 8m (26.25ft)
    • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
    • Jacket Material: Half matt PVC low toxic
    • Conductor Material: Tinned Copper
    • Conductor Gauge: 24/24/20AWG
    • Shielding: AL Mylar and braid
    Specifications
    • Supported Bandwidth: 5 Gbps
    • Nominal Attenuation:
      • 0.064MHz - <0.08dB
      • 0.256MHz - <0.11dB
      • 0.512MHz - <0.13dB
      • 0.772MHz - <0.15dB
      • 1.0MHz - <0.20dB
      • 4MHz - <0.39dB
      • 8MHz - <0.57dB
      • 12MHz - <0.67dB
      • 24MHz - <0.95dB
      • 48MHz - <1.35dB
      • 96MHz - <1.90dB
      • 200MHz - <3.20dB
      • 400MHz - <5.80dB
    • Minimum Bend Radius: 70mm (2.76in)
    • Maximum Tensile Load: -
    • Operating Temperature: 0°C - 50°C (32°F - 122°F)
    • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
    • Transmission Medium: Twisted Pair
    • Transmission Technology: USB 3.2 / 3.1 Gen 1 /  3.0
    Miscellaneous
    • Packaging Type: Carton Box
    • Packaging Dimensions: 235x200x65mm (9.25x7.87x2.56in)
    • Net Weight: 0.63kg (1.39lb)
    • Gross Weight: 0.77kg (1.7lb)
    • Warranty (Years): 2
    • Certificated: CE, FCC, RoHS, REACH & California Proposition 65, TAA
    Packaging Content
    • USB 3.2 C/A Active Extension Pro 8m
    • Power Adapter Cable Nr. 70265
    • Lindy Manual
    Purchasing Information
    • No.: 43381
    • EAN: 4002888433815
    This product is also available in other lengths
    • 43380 - 5m (16.4ft)

    Products specifications
    Properties USB Type-C
    Color Black
    Properties USB
    Color Gold
    Color Blue
    weight630 g
    maximum data transfer rate5 Gbit/s
    cable length8 m
    cable typeRound cable
    country of originTW
    product colourBlack, Blue
    operating temperature (t-t)0 - 50 °C
    storage temperature (t-t)-20 - 60 °C
    package width230 mm
    package depth198 mm
    package height63 mm
    package weight830 g
    connector 1USB C
    connector 2USB A
    connector 1 genderMale
    connector 2 genderFemale
    quantity per pack1 pc(s)
    package typeBox
    connector contacts platingNickel/Gold
    compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS
    conductor materialTinned copper
    awg wire size24/24/20
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    sustainability complianceYes
    cable diameter7 mm
    bend radius (min)7 cm
    connector 1 dimensions (wxdxh)14 x 43.65 x 11.2 mm
    connector 2 dimensions (wxdxh)20 x 80 x 13 mm
    nominal attenuation0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.67dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB
    power note2.5/0.7mm DC Connector
    packaging height6.5
    packaging lenght23.5
    packaging width20.0
    warranty2.0
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f5/74/da/63/63da74f59050d56a4d950b56/CE_43380-1.pdf
    Description
    Connectors
    • Connector A: USB Type C Male
    • Connector B: USB Type A Female
    • Power: 2.5/0.7mm DC Connector
    • Housing Material: Plastic
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold Flash
    • Dimensions (approx.) WxDxH:
      • USB C Male: 14x43.65x11.2mm (0.55x1.72x0.44in)
      • USB A Female: 20x80x13mm (0.79x3.15x0.51in)
    Cable Construction
    • Length: 8m (26.25ft)
    • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
    • Jacket Material: Half matt PVC low toxic
    • Conductor Material: Tinned Copper
    • Conductor Gauge: 24/24/20AWG
    • Shielding: AL Mylar and braid
    Specifications
    • Supported Bandwidth: 5 Gbps
    • Nominal Attenuation:
      • 0.064MHz - <0.08dB
      • 0.256MHz - <0.11dB
      • 0.512MHz - <0.13dB
      • 0.772MHz - <0.15dB
      • 1.0MHz - <0.20dB
      • 4MHz - <0.39dB
      • 8MHz - <0.57dB
      • 12MHz - <0.67dB
      • 24MHz - <0.95dB
      • 48MHz - <1.35dB
      • 96MHz - <1.90dB
      • 200MHz - <3.20dB
      • 400MHz - <5.80dB
    • Minimum Bend Radius: 70mm (2.76in)
    • Maximum Tensile Load: -
    • Operating Temperature: 0°C - 50°C (32°F - 122°F)
    • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
    • Transmission Medium: Twisted Pair
    • Transmission Technology: USB 3.2 / 3.1 Gen 1 /  3.0
    Miscellaneous
    • Packaging Type: Carton Box
    • Packaging Dimensions: 235x200x65mm (9.25x7.87x2.56in)
    • Net Weight: 0.63kg (1.39lb)
    • Gross Weight: 0.77kg (1.7lb)
    • Warranty (Years): 2
    • Certificated: CE, FCC, RoHS, REACH & California Proposition 65, TAA
    Packaging Content
    • USB 3.2 C/A Active Extension Pro 8m
    • Power Adapter Cable Nr. 70265
    • Lindy Manual
    Purchasing Information
    • No.: 43381
    • EAN: 4002888433815
    This product is also available in other lengths
    • 43380 - 5m (16.4ft)
