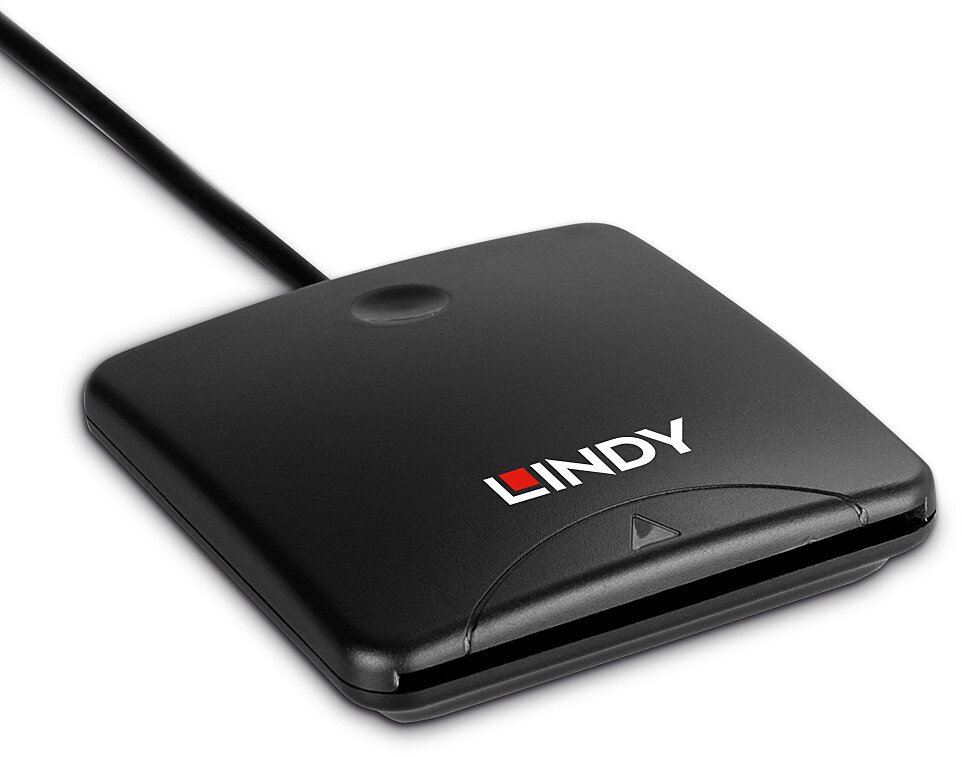

Lindy USB 2.0 Smart Card Reader

Specifications

• USB Standard: USB 2.0
• Supported Bandwidth: 480Mbps
• Chipset: Realtek 5169
• Compatibility: USB Type A equipped computers
• Power Delivery: -
• Special Features:
  • Compliant with EMV 4.1 specification
  • Supports PC smart card industry standard PC/SC 1.0, PC/SC 2.0
  • Supports 1.8V, 3V/5V cards
  • Supports asynchronous cards: protocols T0, T1
  • Supports synchronous cards: 2-wire, 3-wire, I2C Memory Cards: SLE4418/28, SLE4432/42, AT88sc1608/153, AT24c128/256, ST M14C16/M14C04

Connectors

• Inputs: 1 x USB Type A (Male)
• Outputs: 1x Smart Card slot (PC/SC 1.0/2.0)
• Power: -

Physical Properties

• Dimensions WxDxH: 69x62x16mm (2.72x2.44x0.63in)
• (Fixed) Cable Length: 1.2m (3.94ft)
• Housing Material: Plastic
• Net Weight: 0.048kg (0.1lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: 0°C - 60°C (32°F - 140°F)
• Humidity:  10 - 85% RH (non-condensing)
• Power Requirements: Bus-powered
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 128x98x28mm (4.84x3.86x1.1in)
• Gross Weight: 0.1kg (0.22lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH

Package Contents

• USB 2.0 Smart Card Reader

Purchasing Information

• No.: 43407
• EAN: 4002888434072
