Product type | CCTV monitor |
Mounting type | Freestanding/Wall-mounted |
Product colour | Black |
Tilt adjustment | Yes |
Tilt angle range | 3 - 21° |
Display diagonal | 60.5 cm (23.8") |
Display resolution | 1920 x 1080 pixels |
Display type | LED |
Panel type | VA |
Display brightness | 250 cd/m² |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 16.7 million colours |
Pixel pitch | 0.274 x 0.274 mm |
Contrast ratio (typical) | 20000000:1 |
Response time | 5 ms |
Haze rate | 40% |
RGB colour space | NTSC |
NTSC coverage (typical) | 72% |
Anti-glare screen | Yes |
Surface hardness | 3H |
Digital horizontal frequency | 24 - 84 kHz |
Digital vertical frequency | 50 - 75 Hz |
Glass thickness | 3 mm |
Display surface reflectivity (typical) | 1% |
Built-in speaker(s) | Yes |
Number of built-in speakers | 2 |
Speaker power | 2 W |
VESA mounting | Yes |
Panel mounting interface | 75 x 75,100 x 100 mm |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
HDMI ports quantity | 1 |
HDMI version | 1.4 |
DVI-D ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
USB port | Yes |
USB 2.0 ports quantity | 1 |
Composite video in | 1 |
Composite video out | 1 |
3.5 mm (1/8-inch) in | Yes |
Audio RCA inputs | 1 |
RS-232 ports | 1 |
SDI inputs | 1 |
SDI outputs | 1 |
DC-in jack | Yes |
Power source type | DC |
Power supply type | External |
Power consumption (typical) | 21 W |
Power consumption (standby) | 0.5 W |
Power consumption (off) | 0.3 W |
AC adapter output voltage | 12 V |
AC adapter output current | 2.75 A |
Energy efficiency class (SDR) | F |
Energy efficiency scale | A to G |
Energy consumption (SDR) per 1000 hours | 21 kWh |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 95% |
Sustainability compliance | Yes |
Sustainability certificates | CE, Low Voltage Directive (LVD), REACH, RoHS |
Weight | 7.3 kg |
Height | 352.6 mm |
Depth | 56.2 mm |
Width | 562.4 mm |
Width (with stand) | 562.4 mm |
Depth (with stand) | 196 mm |
Height (with stand) | 392.8 mm |
Weight (with stand) | 8.1 kg |
Package width | 672 mm |
Package depth | 249 mm |
Package height | 517 mm |
Package weight | 11.2 kg |
AC adapter included | Yes |
Cables included | AC, Audio, VGA |
Quick start guide | Yes |
Warranty card | Yes |
Transmission rate | 97 |
Description |

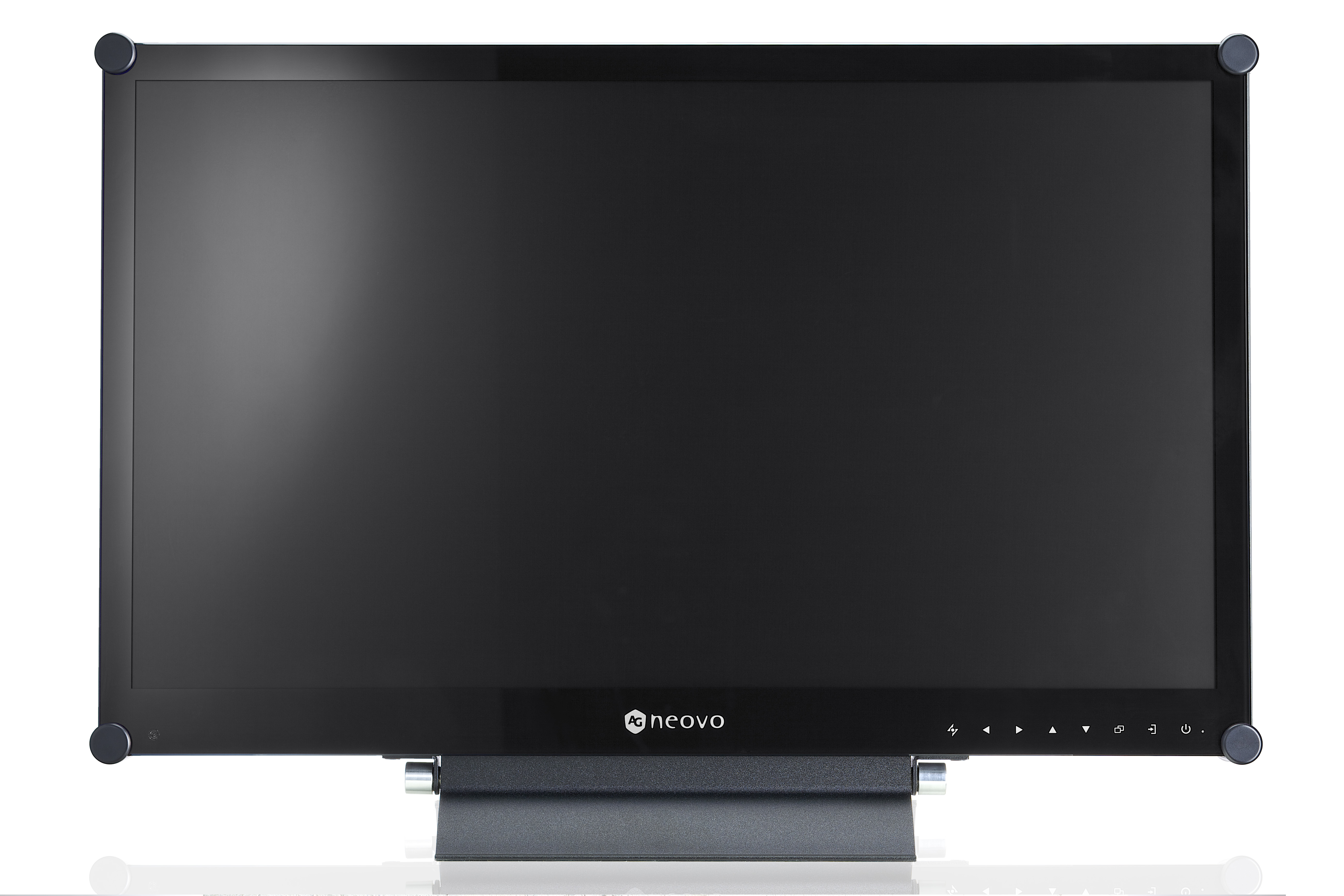

AG Neovo HX-24G. Product type: CCTV monitor, Mounting type: Freestanding/Wall-mounted, Product colour: Black. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, Display type: LED. Speaker power: 2 W, Panel mounting interface: 75 x 75,100 x 100 mm, Cable lock slot type: Kensington. Power source type: DC, Power supply type: External, Power consumption (typical): 21 W. Weight: 7.3 kg, Height: 352.6 mm, Depth: 56.2 mm |
