Manufacturer: MSI

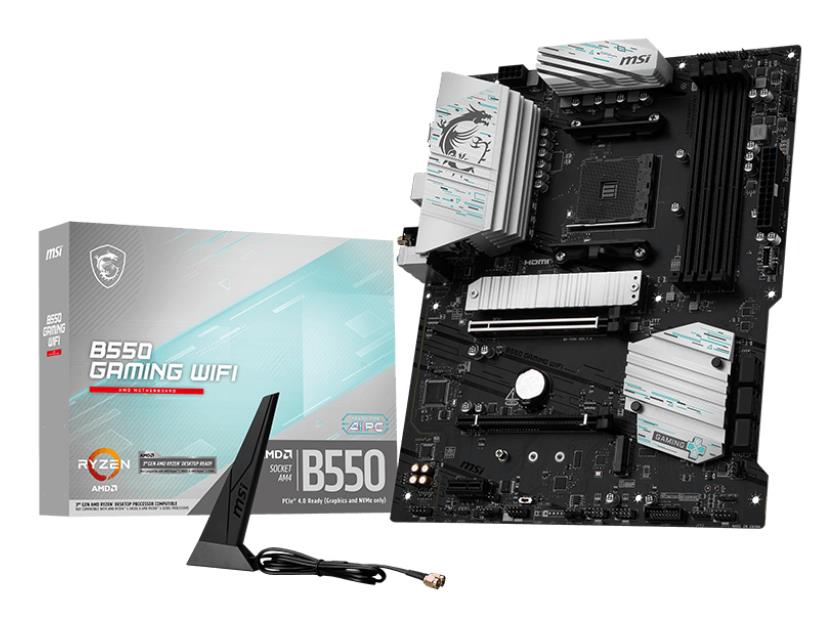

Mainboard|MSI|AMD B550|Socket AM4|ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B550GAMINGWIFI

€144.56 incl tax

SKU: ST09977842

Manufacturer part number: B550 GAMING WIFI

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	2 - 4 days	30	€144.56 incl tax
PL	8 - 15 days	16	€144.85 incl tax
PL	9 - 12 days	30	€147.58 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

CPU Socket	Socket AM4
Video interface	HDMI
Memory type	DDR4
Form Factor	ATX
Video interface	DisplayPort

Model	B550 GAMING WIFI
CPU socket	Socket AM4
Processor family	AMD Ryzen
Integrated CPU	No
Chipset manufacturer	AMD
Chipset type	AMD B550
Memory type	DDR4
Number of DDR4 slots	4
Memory bus frequency	4533 MHz
Memory bus frequency	3466 MHz
Memory bus frequency	3200 MHz
Memory bus frequency	4800 MHz
Memory bus frequency	3866 MHz
Memory bus frequency	4000 MHz
Memory bus frequency	4600 MHz
Memory bus frequency	2800 MHz
Memory bus frequency	3000 MHz
Memory bus frequency	4133 MHz
Memory bus frequency	4266 MHz
Memory bus frequency	4733 MHz
Memory bus frequency	4866 MHz
Memory bus frequency	3066 MHz
Memory bus frequency	2933 MHz
Memory bus frequency	3733 MHz
Memory bus frequency	2667 MHz
Memory bus frequency	3600 MHz
Memory bus frequency	4400 MHz
Max memory size	128 (GigaBajt)
Expansion slots	2 x PCIe x 16
Expansion slots	1 x PCIe x 1
Max. number of SATA devices	6
RAID	No
Detailed data on disk/drive interfaces	Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices 6x SATA 6G Multi-GPU AMD MULTI-GPU Support
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Sound card	Realtek ALC897 7.1-Channel High Definition Audio
Network interface	1 x 10/100/1000 Mbit/s
Network interface	Wi-Fi 802.11a/b/g/n/ac
Network interface	Bluetooth
Network interface	Realtek 8111H 1G LAN Wi-Fi 5 Solution Supports Bluetooth 5.0
USB ports at back panel	8
USB ports on motherboard	7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	2
FireWire (IEEE 1394)	No
COM connector / port	Yes
LPT connector / port	No
External connectors	1 x DisplayPort
External connectors	1 x MIC
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	1 x HDMI
External connectors	1 x Flash BIOS Button
External connectors	1 x USB 3.2 Gen 2 Type-C
External connectors	2 x USB 3.2 Gen 1 Type-A
External connectors	1 x USB 3.2 Gen 2 Type-A
External connectors	2 x SMA
External connectors	4 x USB 2.0
External connectors	1 x RJ-45
Onboard connectors	1 x Chassis intrusion header
Onboard connectors	1 x 8pin 12V power
Onboard connectors	6 x 4pin wentylator obudowy
Onboard connectors	2 x Addressable LED
Onboard connectors	1 x TPM header
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors	4 x USB 2.0/1.1
Onboard connectors	1 x RGB LED strip header
Onboard connectors	1 x Serial port header
Onboard connectors	1 x USB 3.2 Gen 1 Type-A
Onboard connectors	2 x System panel header
Onboard connectors	4 x EZ Debug LED
Onboard connectors	1 x USB 3.2 Gen 1 Type-C
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x 24pin ATX zasilanie
Form factor	ATX
Dimensions	243.84 mm x 304.8 mm
Accessories included	Zestaw śrub M.2 Panel I/O Antena Wi-Fi Skrócona instrukcja obsługi Informacja regulacyjna Unii Europejskiej
Supported operating systems	Windows 11
Designation	CE+WEEE
Width	345
Height	275
Depth	90
Weight	1660
Description
Description	B550 GAMING WIFI B550 GAMING WIFI została zaprojektowana, aby oferować rozbudowaną łączność, wszechstronne narzędzia oraz rozwiązanie Wi-Fi dla graczy poszukujących kompleksowych możliwości. Wyposażona w 1G LAN, Wi-Fi oraz obsługę PCIe 4.0, jest gotowa na nieprzerwane granie 24/7 i zoptymalizowana pod kątem procesorów AMD Ryzen serii 5000, 5000 G, 4000 G oraz 3000.

Description

Description	MSI B550 GAMING WIFI AM4 1xHDMI 1xDP
VatType	VAT
Weight	1.650000000
Height	90.000000000
Width	270.000000000
Length	340.000000000
Description
Description	MSI B550 GAMING WIFI AM4 1xHDMI 1xDP
