Manufacturer: FNIRSI

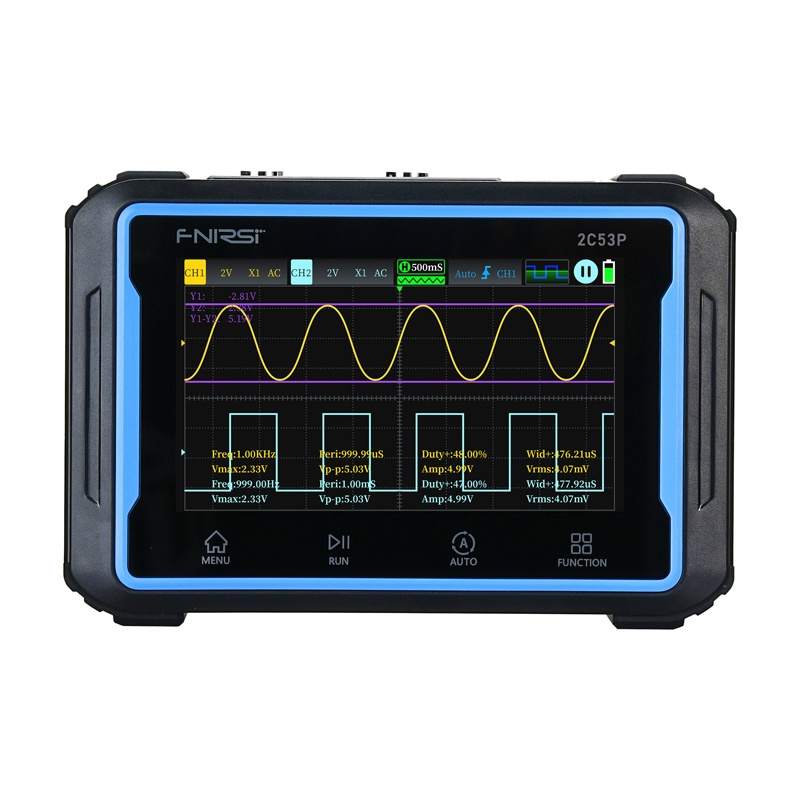

Portable 3-in-1 FNIRSI 2C53P 4.3" touchscreen osci

€124.38 incl tax

SKU: ST09790274

Manufacturer part number: 2C53P

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
	6 - 12 days	40	€124.38 incl tax
PL	8 - 15 days	40	€150.05 incl tax

Qty:

Specifications

Products specifications

Details 1
Details 2

Description

FNIRSI 2C53P 4.3" portable 3-in-1 touchscreen oscilloscope.

The FNIRSI 2C53P is a portable oscilloscope that combines three functions: a two-channel oscilloscope, a digital multimeter and a DDS generator. The device offers extensive functionality in a compact form. It features a 4.3-inch IPS touchscreen with 480 × 272 pixel resolution, which provides intuitive operation and free viewing of waveforms with zoom and pan capabilities. The oscilloscope offers a 50 MHz bandwidth, 250 MSa/s sampling rate and 12 switchable waveforms. This makes it ideal for measuring voltage, current, resistance, capacitance or temperature with precision up to 19999 readings.

Advanced signal analysis capabilities

The FNIRSI 2C53P enables professional signal analysis with functions such as FFT (fast Fourier transform), X-Y mode, cursor measurements, mathematical functions, and True RMS function. The oscilloscope offers three trigger modes (auto, normal, single), and with the "auto set" function, waveform calibration is done with a single button. In addition, a band-limiting function of up to 20 MHz is available, allowing accurate measurement of power supply interference at the millivolt level.

Multimeter with high precision and safety

The built-in multimeter supports measurements of AC/DC voltage, current, resistance, capacitance, diodes, continuity and temperature. The device offers extremely accurate measurements (up to 19999 readings) and allows you to store up to five measurement parameters, track changes in minimum and maximum values, and export data to a computer via the "USB Sharing" function. The dual ceramic fuses used protect the device from current and voltage overloads, ensuring safe use.

Fast charging and robust design

The built-in lithium battery with a capacity of 4000 mAh ensures long operation of the device without frequent charging. The FNIRSI 2C53P is equipped with a tempered glass screen, an adjustable stand (90°), a compact and impact-resistant housing, making it suitable not only in the workshop, but also in the field. The whole device supports up to 8 interface languages, including Chinese, English, Russian, Japanese, Spanish, Portuguese, German and Korean.

Ideal for precision measurement and analysis

The FNIRSI 2C53P oscilloscope is used for measuring 220V mains voltage, switching power supplies, power supply interference, pulse signals, as well as for analyzing audio signals. It is a versatile tool that will be perfect for both professional laboratory and hobbyist applications.

Included

oscilloscope
probe with crocodile clip
P6100 x2 probe
probe with multimeter function
dannych cable
user manual

General

ManufacturerFNIRSIModel253PDimensions14.5 x 3.5 x 9.8 cmScreen4.3" tempered glass, color IPS screenScreen resolution480 x 272 pxBacklight capabilitySupportedPower sourceType-C (5V/2A)BatteryLithium, 4000 mAh capacitySupported languagesChinese, English, Russian, Japanese, Spanish, Portuguese, German, KoreanWeight360 g

Oscilloscope

ChannelDualSampling frequency250 MSa/sTime base range10ns/div - 10s/divWaveform display methodYT, XY, ScrollInput impedance1ΜΩProbe1x/10xTrigger typeRising edge, falling edgeTrigger levels8 (positive, negative)Memory13MSave waveform screenshotSupportedFile transfer to computer via USBSupportedBandwidth50 MHzVertical sensitivity10mv/div - 10v/divVertical resolution8 bitsBandwidth limit20 MHzInput couplingAC/DCVoltage protection400 VTrigger modeAutomatic, normal, singleMeasurement dataPrd, Freq, Vpp, Vmax, Vmin, Vrms, Vavg, Vamp, Du+, Du-, Wid+, Wid-

Signal generator

Wave frequency0-10MHz (sine wave: 10MHz / other waveforms: 5MHz)Waveform amplitude0.1V-3.0VRectangular waveform duty cycle0-100%

Description

FNIRSI 2C53P 4.3" portable 3-in-1 touchscreen oscilloscope. The FNIRSI 2C53P is a portable oscilloscope that combines three functions: a two-channel oscilloscope, a digital multimeter and a DDS generator. The device offers extensive functionality in a compact form. It features a 4.3-inch IPS touchscreen with 480 × 272 pixel resolution, which provides intuitive operation and free viewing of waveforms with zoom and pan capabilities. The oscilloscope offers a 50 MHz bandwidth, 250 MSa/s sampling rate and 12 switchable waveforms. This makes it ideal for measuring voltage, current, resistance, capacitance or temperature with precision up to 19999 readings. Advanced signal analysis capabilities The FNIRSI 2C53P enables professional signal analysis with functions such as FFT (fast Fourier transform), X-Y mode, cursor measurements, mathematical functions, and True RMS function. The oscilloscope offers three trigger modes (auto, normal, single), and with the "auto set" function, waveform calibration is done with a single button. In addition, a band-limiting function of up to 20 MHz is available, allowing accurate measurement of power supply interference at the millivolt level. Multimeter with high precision and safety The built-in multimeter supports measurements of AC/DC voltage, current, resistance, capacitance, diodes, continuity and temperature. The device offers extremely accurate measurements (up to 19999 readings) and allows you to store up to five measurement parameters, track changes in minimum and maximum values, and export data to a computer via the "USB Sharing" function. The dual ceramic fuses used protect the device from current and voltage overloads, ensuring safe use. Fast charging and robust design The built-in lithium battery with a capacity of 4000 mAh ensures long operation of the device without frequent charging. The FNIRSI 2C53P is equipped with a tempered glass screen, an adjustable stand (90°), a compact and impact-resistant housing, making it suitable not only in the workshop, but also in the field. The whole device supports up to 8 interface languages, including Chinese, English, Russian, Japanese, Spanish, Portuguese, German and Korean. Ideal for precision measurement and analysis The FNIRSI 2C53P oscilloscope is used for measuring 220V mains voltage, switching power supplies, power supply interference, pulse signals, as well as for analyzing audio signals. It is a versatile tool that will be perfect for both professional laboratory and hobbyist applications. Included oscilloscope probe with crocodile clip P6100 x2 probe probe with multimeter function dannych cable user manual General Manufacturer FNIRSI Model 253P Dimensions 14.5 x 3.5 x 9.8 cm Screen 4.3" tempered glass, color IPS screen Screen resolution 480 x 272 px Backlight capability Supported Power source Type-C (5V/2A) Battery Lithium, 4000 mAh capacity Supported languages Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean Weight 360 g Oscilloscope Channel Dual Sampling frequency 250 MSa/s Time base range 10ns/div - 10s/div Waveform display method YT, XY, Scroll Input impedance 1ΜΩ Probe 1x/10x Trigger type Rising edge, falling edge Trigger levels 8 (positive, negative) Memory 13M Save waveform screenshot Supported File transfer to computer via USB Supported Bandwidth 50 MHz Vertical sensitivity 10mv/div - 10v/div Vertical resolution 8 bits Bandwidth limit 20 MHz Input coupling AC/DC Voltage protection 400 V Trigger mode Automatic, normal, single Measurement data Prd, Freq, Vpp, Vmax, Vmin, Vrms, Vavg, Vamp, Du+, Du-, Wid+, Wid- Signal generator Wave frequency 0-10MHz (sine wave: 10MHz / other waveforms: 5MHz) Waveform amplitude 0.1V-3.0V Rectangular waveform duty cycle 0-100%
